CS1000E Rls. 7.5 Hardware overview

A typical 7.5 installation may utilise one or more MG1010 chassis, and cards,
in the following configuration.

▶ Configure a data switch (4550T) with two V-LANS

• Designate the top (even) port row E-LAN. The bottom (odd) port row T-LAN.
• Remember to set AUTO PVID (VLAN CONFIG CONTROL SETTING)

▶ TTY cables should be built for the MCU

• Needed to access the core cards TTY ports
• RJ45 to MRV (if available), or PC

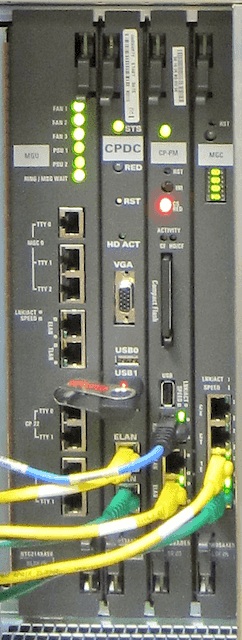

▶ CPDC card in slot CP22 (UCM, Deployment: SS, NRS)

• Pre-populate card with 250Gb Hard Drive (Part: ava-ntdw08aae6).
• This will be used for UCM0, and the deployment server, no dongle is required.
• Put the Avaya REDHAT installation USB thumb-drive in a front USB slot.
• Requires E-LAN and T-LAN connections.

▶ CPPM card in slot CP21 (CS1K - Call Server)

• Pre-populate card with 1Gb Compact Flash Drive (part: N0005129)
• This will be used for CS Core-0. Check keycode sheet, and fit the appropriate dongle.
• Put the VXWORKS installation Compact Flash in the front RMD slot
• A Call Server requires the E-LAN only.

▶ MGC card in slot MGC

• Pre-populate card with DSP daughter board(s)
• Requires E-LAN and T-LAN connections.

▶ UDT cards in slot 1 on

• 7.5 systems do not have a Network shelf, digital trunks will move to UDT cards.
• Pre-populate the first card in each shelf with a clock controller.

▶ CallPilot in slot 9

• If you are installing a 202i, put it in the same shelf as your main digital trunks.
• Connect a USB CDROM, keyboard, monitor, and mouse to install the CP software.
• CallPilot requires the E-LAN only.

▶ If this is a High Availability system, prepare a second MG1010, and cards.

• The CPDC will be UCM1, the CPPM Core-1 with a second dongle.
• Prepare the HSP (high speed link) cable (blue) between the two cores.

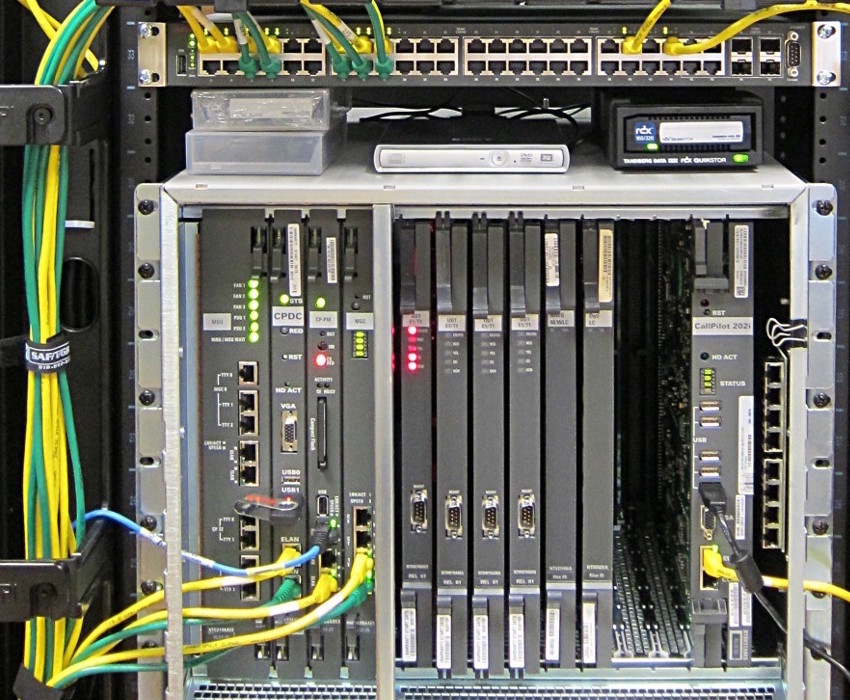

• The finished rack may look like this, or like this (HA).

▶ What now?

• Continue to install and configure the software.
• Relaxen und watchen das blinkenlights.

---
