Small System 5.5 Upgrade

Slots:

SSC and Fibre receiver cards are replaced by an MGC in slot 0. Call Processor (CP) and Signaling Server (SS) cards can go in any slot as they only draw power from the back-plane. It might be convenient to free slots 1 and 2 (in any cabinet) for them, though any PRI cards should always go close the MGC. Use one cabinet for the CP and SS leader, and another for the SS follower.

After this upgrade, there are no more Expansion Cabinets: they become Media Gateways. TN's will change from 'small system' format: Card-Unit (CU), to 'large system' format: Loop-Shelf-Card-Unit (LSCU). For example:

CabinetCard SlotsLoop/Shelf
Main cabinet (SSC) 0 - 100 - 0
Expansion cabinet 111 - 200 - 1
Expansion cabinet 221 - 304 - 0
Expansion cabinet 331 - 404 - 1

If this is an upgrade, you will need a LD 43: EDD/BKO backup on a compact flash from the old SSC card. The installer will auto-magically convert the TN's to the new format. Note: the old SSC may not support CF cards larger than 64Meg.

Before you start, check existing hardware vintages are compatibile with the upgrade.
If this is an upgrade, you will lose Meridian Mail (no legacy AML support), so hope they have CallPilot, or you will be installing one of those too. Try to establish this ahead of time to allow for extra time if necessary. CallPilot Agents (600r) may require an MGATE card.

Prepare the cards:

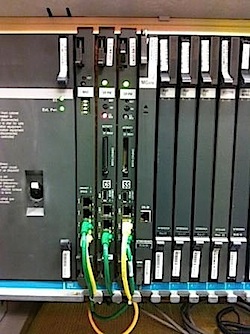

Usually (for release 5.5), you'll use 3 CPPM cards (plus have spares):
Designate one as the Call Server, and two as Signaling Servers: a leader and a follower.

Each cabinet needs a media gateway card (MGC) in card slot 0, they are keyed and will only fit in slot 0.

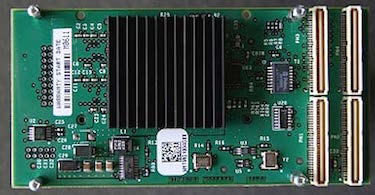

Each MGC requires DSP daughter board(s) - which come in three flavors: 32, 96, and 128 port.

Give some thought to traffic levels and trunking. Spread the Digital trunk cards around if necessary. A 32 port DSP is probably OK for low capacity shelves, but shelves with high capacity cards (E1, T1, CallPilot MGATE) will require 96 ports or more, if available.

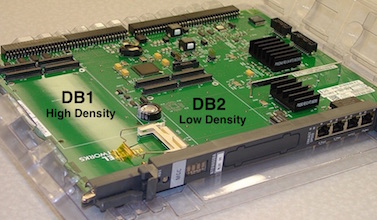

NTDW60 MGC Card with two positions'sAn NTDW62 (or 64) DSP Daughter board

Cabling:

Prepare the network cables, but DO NOT connect them at this stage. Shown right is green for ELAN, yellow for TLAN. Color coding is prudent, don't mix up E and TLAN connections!

An Ethernet switch (Baystack) must have already been provisioned with two VLAN's: one each for E and TLAN - if not, do this now. All network connections are made to the switch.

Cards, cabinets and MGC's are generally hooked up AFTER they've been loaded and configured. The exception is loading a SS-Follower which requires access to the Leader.

Note: IF this is an upgrade, the CPPM card(s) can be put into ANY SLOT (with no ELAN or TLAN connections) to load the software - and then moved later. The card only draws power from the back plane and will not affect a running system. Pre-loading the cards in this way will significantly reduce down-time at cut-over. MGC cards can ONLY go in Slot 0.

Load firmware in the Call Server:

You must load the firmware from the front panel flash card slot. The CF card to insert in the front is the Communications Server 1000. NTM443CA. This firmware says release 5.00W I-29 P-104. We will boot from this CF card, and load/run the Install Tool.

Use a 2x 25way-D to Amphenol TTY communications cable. Attach the 50 pin Amphenol end to the appropriate backplane slot connector, the other to a PC serial port. Open a terminal session (PuTTY, Serial, etc.) with the usual 9600 8N1 settings.

Power on the shelf and/or seat the CPPM card.
Watch the terminal window as the card boots up.

You will see some text go by that includes an indication to use control C to enter setup. ignore this, and wait for:


+------------------------------------------------------------------------------+
|          System BIOS Configuration, (C) 2005 General Software, Inc.          |
+---------------------------------------+--------------------------------------+
| System CPU           : Pentium M      | Low Memory           : 632KB         |
| Coprocessor          : Enabled        | Extended Memory      : 1011MB        |
| Ide 0 Type           : 3              | Serial Ports 1-2     : 03F8 02F8     |
| Ide 1 Type           : 3              | ROM Shadowing        : Enabled       |
| Ide 2 Type           : 3              | BIOS Version         : NTDU74AA 14   |
+---------------------------------------+--------------------------------------+

Press F to force board to boot from faceplate drive.
.................................

If you don't see this, check your serial connection - you may need a Null-Modem adapter.

Press the f key to boot from the faceplate Software Installation CF card.
Watch the text scroll, ignore an option to hit control B. Just wait, and eventually, you will see this:


        Communication Server 1000 Software/Database/BOOTROM RMD Install Tool
        ====================================================================

               #####
             #########   ########
            ########`` `#############
           ########      ``    `#############
          #######`         ######```####
          #######      ######``     `###                  NORTEL
         #######    #####``          ####
         ####### #####`              ####   Communication Server 1000 Software
         `#########`                ####`
          #######`                 #####          Install Tool version 29
          `#######               #####`
          ##########            `###`               Copyright 1992 - 2007
         ##``##########            #
        ##   `########################
        `#     `########################
          ###########################``
           `````````  ````####````

        Please press <CR> when ready ...

Press the enter key.
The flowing will scroll, enter <y> when prompted...
Proceed with the (internal Compact Flash) partition tests.


*****************************************************************
 WARNING:

 This software does not support TNs configured on PE/EPE
 shelves. Upgrading to this software release will permanently
 disable all TNs configured on PE/EPE and will not allow new
 TNs to be configured.

 Proceed with the upgrade? (Y/N) y

*****************************************************************
 WARNING:

 Upgrading from pre-Release 4.5 software to Release 4.5 or higher
 will result in the system PDT passwords being reset to default.

 Proceed with the upgrade? (Y/N) y


>Obtaining and checking system configuration ...
>Validate hard disk partitions
        Validate number of hard drive partitions and size ...
        The size of partition /p is 304 Mb.
        The size of partition /d is 304 Mb.
        The size of partition /e is 304 Mb.
        There are 3 partitions
        Disk partitions and sectors checking is completed!

/boot/  - disk check in progress ...

/boot/  - Volume is OK

	  total # of clusters:	16,274
	   # of free clusters:	16,272
	    # of bad clusters:	0
	     total free space:	16,272 Kb
     max contiguous free space:  16,662,528 bytes
		   # of files:	0
		 # of folders:	0
	 total bytes in files:	0
	     # of lost chains:	0
   total bytes in lost chains:  0
>Copying "/cf2/swload/disk4021.sys" to "/u/disk4021.sys" -

>System date and time is: Sunday 09-27-2009, 15:45:23

NOTE: A new Compact Flash card will always fail the partition tests. This is normal as the drive needs to be partitioned and formated before the install process can continue. When you see the Unable to validate partition messages, simply hit <CR> to continue. The Install Tool will then prompt to partition and format the CF. Accept the default options, and continue.
When complete, re-boot from the faceplate and start the install process again. This time it should pass the patition tests...

And finally, the MAIN MENU appears.


        Communication Server 1000 Software/Database/BOOTROM RMD Install Tool
        ====================================================================

                               M A I N    M E N U

        The Software Installation Tool will install or upgrade
        Communication Server 1000 Software, Database and the CP-BOOTROM.

        You will be prompted throughout the installation and given the
        opportunity to quit at any time.

        Please enter:
<CR> -> <u> - To Install Menu.
        <t> - To Tools Menu.
        <q> - Quit.

        Enter choice> u

We want to go to the INSTALL MENU.


        Communication Server 1000 Software/Database/BOOTROM RMD Install Tool
        ====================================================================

                         I N S T A L L    M E N U


        The Software Installation Tool will install or upgrade
        Communication Server 1000 Software, Database and the CP-BOOTROM.

        You will be prompted throughout the installation and given the
        opportunity to quit at any time.

        Please enter:

<CR> -> <a> - To install Software, CP-BOOTROM.
        <b> - To install Software, Database, CP-BOOTROM.
        <c> - To install Database only.
        <d> - To install CP-BOOTROM only.
        <t> - To go to the Tools Menu.
        <k> - To install Keycode only.
               For Feature Expansion, use OVL143.
        <p> - To install 3900 Set Languages.
        <q> - Quit.

        Enter choice> a

If this is a new install, choose a, if it's an upgrade, choose b. In this case you will also need a LD 43: EDD/BKO backup on a compact flash from the old SSC card ready, which must be inserted when prompted. The installer will auto-magically convert the TN's to the new format.


        Communication Server 1000 Software/Database/BOOTROM RMD Install Tool
        ====================================================================

        This CS 1000 Call Processor is set to side 0

        Please confirm that the side information is correct.



        Please enter:
<CR> -> <y> - Yes, the side information is correct.
        <n> - No, the side information is incorrect. Go on to Side Setting Menu.

        Enter choice> y

A Single processor is always side 0.


        Communication Server 1000 Software/Database/BOOTROM RMD Install Tool
        ====================================================================

        This CS 1000 Call Processor is currently located in the IPMG
        configured as:

        loop   0
        shelf  1

        Please confirm that the IPMG loop and shelf information is correct.

        Note: If the IPMG has not been configured yet, the IPMG loop and
              shelf information can be left as the current value. To update
              the loop and the shelf information later, use OVL117.


        Please enter:
<CR> -> <y> - Yes, the IPMG loop and shelf information is correct.
        <n> - No, the IPMG loop and shelf information is incorrect.
             Go on to Loop/Shelf Setting Menu.

        Enter choice> n

It doesn't matter WHERE the Call Processor goes, but you'll need to enter it's location in the installer! This will obviously depend on where you've made space for the card. Enter the final destination loop and shelf if you are loading the card in a spare blank slot. You can change this later in LD 117 with the command CHG LCL <Loop> <Shelf>.


        Communication Server 1000 Software/Database/BOOTROM RMD Install Tool
        ====================================================================
        Enter the Loop that the Call Processor is in <0-252>   : 4

        Enter the Shelf that the Call Processor is in <0 or 1> : 1

        loop   4
        shelf  1


        Please confirm this information is correct.


        Please enter:

<CR> -> <y> - Yes, the loop and shelf information is correct
        <n> - No, the loop and shelf information is incorrect.

        Enter choice> y




        Communication Server 1000 Software/Database/BOOTROM RMD Install Tool
        ====================================================================

        Please insert the Removable Media Device into the drive on Core 0.



        Please enter:
<CR> -> <a> - RMD is now in drive. Continue with s/w checking.
        <q> - Quit.

        Enter choice> a





        Communication Server 1000 Software/Database/BOOTROM RMD Install Tool
        ====================================================================


        The RMD contains System S/W version X210500_W.



        Please enter:
<CR> -> <y> - Yes, this is the correct version. Continue.
        <n> - No, this is not the correct version. Try another RMD
               or a different keycode.

        Enter choice> y


>Copying "/cf2/swload/0500_WMR.N40/target/p/sl1/direct.rec" to "/u/direct.rec" -
>Updating "/u/direct.rec"




        Communication Server 1000 Software/Database/BOOTROM RMD Install Tool
        ====================================================================

        Do you want to install Dependency Lists?.



        Please enter:
<CR> -> <y> - Yes, Do the Dependency Lists installation
        <n> - No, Continue without Dependency Lists installation

        Enter choice> y




        Communication Server 1000 Software/Database/BOOTROM RMD Install Tool
        ====================================================================


        Enable Automatic Centralized Software Upgrade (CSU) Feature ? (Default - YES)


        Please enter:
<CR> -> <y> - Yes
        <n> - No

        Enter choice> y





        Communication Server 1000 Software/Database/BOOTROM RMD Install Tool
        ====================================================================

        Set Automatic Centralized Software Upgrade Mode to:

        Please enter:
<CR> -> <1> - Sequential
        <2> - Simultaneous


        Enter choice> 1

>Processing the install control file ...
>Installing release 0500W

               --------------------------------------------------
                           INSTALLATION STATUS SUMMARY
               --------------------------------------------------

        +=================+========+========+===========================+
        |     Option      | Choice | Status |           Comment         |
        +=================+========+========+===========================+
        | SW: RMD to FMD  |  yes   |        | install for rel 0500W     |
        +-----------------+--------+--------+---------------------------+
        | Dependency Lists|  yes   |        |                           |
        +-----------------+--------+--------+---------------------------+
        | AUTO-CSU Feature|  SEQ   |        | SEQ-CSU Enabled           |
        +-----------------+--------+--------+---------------------------+
        | IPMG Software:  |  yes   |        | install for rel 0500W     |
        +-----------------+--------+--------+---------------------------+
        | Database        |   no   |        |                           |
        +-----------------+--------+--------+---------------------------+
        | CP-BOOTROM      |  yes   |        |                           |
        +-----------------+--------+--------+---------------------------+

        Please enter:
<CR> -> <y> - Yes, start installation.
        <n> - No, stop installation. Return to the Main Menu.

        Enter choice> y

>Checking system configuration

And finally...


        Communication Server 1000 Software/Database/BOOTROM RMD Install Tool
        ====================================================================

        You selected to install Software release: 0500W on the new system.

        This will  create  all  necessary  directories and  pre-allocate
        files on the hard disk.

        You  may continue  with software  install or quit  now and leave
        your software unchanged.

        Please enter:
<CR> -> <a> - Continue with new system install.
        <q> - Quit.

        Enter choice> a

>Starting software install ...
>Installing Release 0500W
>Initializing partition ... Retrieved old volume params with %95 confidence:

Lots of detail ....

Finishes with:


>Installed BOOTROM "/p/load/hdrom.bin"
>Copying "/p/load/nvram.sys" to "/boot/nvram.sys" -

        Communication Server 1000 Software/Database/BOOTROM RMD Install Tool
        ====================================================================

        Software release 0500W was installed successfully on Core 0.

        All files were copied from RMD to FMD.



        Please press <CR> when ready ...


               --------------------------------------------------
                           INSTALLATION STATUS SUMMARY
               --------------------------------------------------

        +=================+========+========+===========================+
        |     Option      | Choice | Status |           Comment         |
        +=================+========+========+===========================+
        | SW: RMD to FMD  |  yes   |   ok   | install for rel 0500W     |
        +-----------------+--------+--------+---------------------------+
        | Dependency Lists|  yes   |   ok   | CORE Issue 01             |
        |                 |        |        |                           |
        +-----------------+--------+--------+---------------------------+
        | AUTO-CSU Feature|  SEQ   |        | SEQ-CSU Enabled           |
        +-----------------+--------+--------+---------------------------+
        | IPMG Software:  |  yes   |   ok   | install for rel 0500W     |
        +-----------------+--------+--------+---------------------------+
        | Database        |   no   |        |                           |
        +-----------------+--------+--------+---------------------------+
        | CP-BOOTROM      |  yes   |   ok   |                           |
        +-----------------+--------+--------+---------------------------+

        Please press <CR> when ready ...

Press Enter...


        Communication Server 1000 Software/Database/BOOTROM RMD Install Tool
        ====================================================================

                         I N S T A L L    M E N U

        The Software Installation Tool will install or upgrade
        Communication Server 1000 Software, Database and the CP-BOOTROM.

        You will be prompted throughout the installation and given the
        opportunity to quit at any time.

        Please enter:
<CR> -> <a> - To install Software, CP-BOOTROM.
        <b> - To install Software, Database, CP-BOOTROM.
        <c> - To install Database only.
        <d> - To install CP-BOOTROM only.
        <t> - To go to the Tools Menu.
        <k> - To install Keycode only.
               For Feature Expansion, use OVL143.
        <p> - To install 3900 Set Languages.
        <q> - Quit.


        Enter choice> q

We are finished with the software installation, so quit, and perform a gracefull re-boot.
IMPORTANT: Use the reboot MENU option, DO NOT just reset the card.


        Communication Server 1000 Software/Database/BOOTROM RMD Install Tool
        ====================================================================


        You selected to quit. Please confirm.

        Please enter:
<CR> -> <y> - Yes, quit.
        <n> - No, DON'T quit.

        Enter choice> y

        Communication Server 1000 Software/Database/BOOTROM RMD Install Tool
        ====================================================================

        You selected to quit the Install Tool.
        You may reboot the system or return to the Main Menu.
        -----------------------------------
        DO NOT REBOOT USING RESET BUTTON!!!
        -----------------------------------

        Please enter:
<CR> -> <a> - Reboot the system.
        <m> - Return to the Main Menu.


        Enter choice> a


>Rebooting system ...

This completes the Call Processor software install. Easy!

If the card is not in its final deployment slot (ie, if you're pre-loading for an upgrade), you can safely remove it and insert the Signalling Server (which uses the same TTY cable) for loading.

Now continue to install the operating system software on the Signalling Server card(s).

Load firmware in the Signaling Server:

Follow pretty much the same steps as you did for the Call Server.
The hard drive may be pre installed from Avaya, and it will boot straight into the MAIN MEUN.
In this case obviously an install flash card is NOT supplied or required.


CS 1000 Signaling Server Software Install Tool (sse-5.00.31)
============================================================


         #####
       #########   ########
      ########`` `#############
     ########      ``    `#############
    #######`         ######```####
    #######      ######``     `###
   #######    #####``          ####               NORTEL NETWORKS
   ####### #####`              ####
   `#########`                ####`    Communication Server 1000 Software
    #######`                 #####
    `#######               #####`               Copyright 2002 - 2007
    ##########            `###`
   ##``##########            #
  ##   `########################
  `#     `########################
    ###########################``
     `````````  ````####````


Please press <CR> when ready ...


Verifying filesystems ...
Filesystems verification succeeded.


Copying "/cf2/disk.sys" to "/u/disk.sys".

It's VERY IMPORTANT to set the correct TIME and DATE

CS 1000 Signaling Server Software Install Tool (sse-5.00.31)
============================================================


You should ensure that the system date and time are correct prior to
installation, since all files copied or created during install will
be time-stamped.


You can press <CR> to accept the current values.


Current date is: SUNDAY 27-09-2009
Enter new date (dd mm yyyy): 14-10-2010
Date is set to: THURSDAY 14-10-2010


Current time is: 16:28:13
Enter new time (hh mm ss): 15 36 30
Time is set to: 15:36:30


Current date and time is: THURSDAY 14-10-2010, 15:36:30

We want to perform: install/upgrade Signaling Server software only, Option b.


CS 1000 Signaling Server Software Install Tool (sse-5.00.31)
============================================================


                       M A I N    M E N U


The Install Tool will install Signaling Server software and related
files. You will be prompted throughout the installation.


        Please enter:

<CR> -> <a> - To perform a complete installation/upgrade (Signaling
              Server s/w, Internet Telephone f/w, Voice Gateway Media
              Card l/w, basic Signaling Server configuration).
        <b> - To install/upgrade Signaling Server software only.
        <c> - To copy Internet Telephone firmware only.
        <d> - To copy Voice Gateway Media Card loadware only.
        <e> - To perform basic Signaling Server configuration only.
        <f> - To selectively change initial system parameters.
        <g> - To change board location information (CPPM only).
        <t> - To go to the Tools Menu.
        <q> - Quit.


        Enter Choice> b


Copying "/cf2/sse50031.p/disk.sys" to "/u/disk.sys".


Processing the install control file ...
"/cf2/sse50031.p/install.dat" parsed.


CS 1000 Signaling Server Software Install Tool (sse-5.00.31)
============================================================




Do you want to install Dependency Lists?.




        Please enter:
<CR> -> <y> - Yes, Do the Dependency Lists installation
        <n> - No, Continue without Dependency Lists installation


        Enter Choice> y



CS 1000 Signaling Server Software Install Tool (sse-5.00.31)
============================================================


You have selected to install version 5.00.31 on the system. As this
is a new install, all necessary directories and files will be
created on the hard disk.


You may start software installation or cancel now and leave the
system unchanged.


        Please enter:
<CR> -> <y> - Yes, start new install.
        <n> - No, cancel new install and return to the Main Menu.

        Enter Choice> y

Starting new install of version 5.00.31.

Initializing protected partition ...
Retrieved old volume params with %95 confidence:
Volume Parameters: FAT type: FAT32, sectors per cluster 16

Wait 15 or 20 minutes.


Boot ROM "/p/load/bootrom.bin" installed.

Erasing /u/patch/reten/reten.pch.


CS 1000 Signaling Server Software Install Tool (sse-5.00.31)
============================================================

Software version 5.00.31 was installed successfully.

All files were copied to the hard disk.

Please press <CR> when ready ...

Press Enter.....

             ---------------------------------------------------
                          INSTALLATION STATUS SUMMARY
             ---------------------------------------------------


+=================+========+========+========================================+
|     Option      | Choice | Status |                Comment                 |
+=================+========+========+========================================+
| software        |  yes   |   ok   | new install 5.00.31                    |
+-----------------+--------+--------+----------------------------------------+
| Dependency Lists|  yes   | ignore | copy NONE                              |
+-----------------+--------+--------+----------------------------------------+
| firmware        |   no   |        |                                        |
+-----------------+--------+--------+----------------------------------------+
| loadware        |   no   |        |                                        |
+-----------------+--------+--------+----------------------------------------+
| configuration   |   no   |        |                                        |
+-----------------+--------+--------+----------------------------------------+


Please press <CR> when ready ...

Press Enter.....


CS 1000 Signaling Server Software Install Tool (sse-5.00.31)
============================================================


                       M A I N    M E N U


The Install Tool will install Signaling Server software and related
files. You will be prompted throughout the installation.


        Please enter:
<CR> -> <a> - To perform a complete installation/upgrade (Signaling
              Server s/w, Internet Telephone f/w, Voice Gateway Media
              Card l/w, basic Signaling Server configuration).
        <b> - To install/upgrade Signaling Server software only.
        <c> - To copy Internet Telephone firmware only.
        <d> - To copy Voice Gateway Media Card loadware only.
        <e> - To perform basic Signaling Server configuration only.
        <f> - To selectively change initial system parameters.
        <g> - To change board location information (CPPM only).
        <t> - To go to the Tools Menu.
        <q> - Quit.


        Enter Choice> q


CS 1000 Signaling Server Software Install Tool (sse-5.00.31)
============================================================

You have selected to quit the Install Tool.

Before quitting and rebooting the system, remove all disks (floppy,
CDROM) from the drives.


        Please enter:

<CR> -> <m> - Return to previous menu.
        <q> - Quit and reboot the system.

        Enter Choice> q



Please press <CR> when ready ...14/10/2010 15:55:35 LOG0002 tApplStart: Error re
ading server configuration file


The Signalling Server will reboot, and then display the following screen:


CS 1000 Signaling Server Software Install Tool (sse-5.00.31)
============================================================


Please insert the database diskette in the removable drive
to restore the IP configuration to the hard disk


        Please enter:
<CR> -> <a> - Diskette is now in the removable drive.
              Continue.
        <b> - Continue without restoring the IP configuration
        <q> - Quit.

        Enter Choice> b

Enter the loop / shelf where this signalling server will be located:


This CS 1000 Signaling Server is currently located in the IPMG
configured as (Loop-Shelf-Card) :


Please enter new IPMG location for this CPPM SS, or press <CR> to skip.


Note: If the IPMG has not been configured yet, the IPMG loop and
      shelf information can be left as the current value. To update
      the loop and the shelf information later, use OAM shell)


New IPMG location (Loop and Shelf only)  [LL SS] : 4 1

Next, select the role of this Signaling Server, either a Leader or a Follower. Build the Leader first!
If you're building a Follower, you only need to enter the Leaders Host name, and the configuration is automatically loaded from that.


CS 1000 Signaling Server Software Install Tool (sse-5.00.31)
============================================================


Note:   This procedure will over-write all existing configuration
        parameters on this Signaling Server.


Please select the role of this Signaling Server.


If this Signaling Server will be a Leader then its data networking and
IP Telephony parameters must be entered now. (This will pre-configure
the IP Telephony node files).


If this Signaling Server will be a Follower then its data networking
and IP Telephony parameters must be configured through Element Manager
later.


        Please enter:
<CR> -> <a> - Set this Signaling Server as a Leader.
        <b> - Set this Signaling Server as a Follower.
        <q> - Quit.


        Enter Choice> a



CS 1000 Signaling Server Software Install Tool (sse-5.00.31)
============================================================


Please select the application configuration for this Signaling Server.


        Please enter:
<CR> -> <a> - Co-resident (LTPS/VTRK/NRS).
        <b> - Standalone (NRS only - no Call Server).
        <q> - Quit.


        Enter Choice> a


CS 1000 Signaling Server Software Install Tool (sse-5.00.31)
============================================================


Please select the Network Routing Service (NRS) configuration for this
Signaling Server.


        Please enter:
<CR> -> <a> - H.323 Gatekeeper and SIP Redirect/Proxy Server.
        <b> - H.323 Gatekeeper only.
        <c> - SIP Redirect/Proxy Server only.
        <d> - None.


        Enter Choice> a


CS 1000 Signaling Server Software Install Tool (sse-5.00.31)
============================================================


Please select the type of Network Routing Service (NRS) for this
Signaling Server.


        Please enter:
<CR> -> <a> - Primary.
        <b> - Alternate.
        <c> - Failsafe.


        Enter Choice> a

You need to have all the IP address's figured out beforehand, there's a bunch of them!


CS 1000 Signaling Server Software Install Tool (sse-5.00.31)
============================================================


Please enter the data networking and IP Telephony parameters for this
Leader Signaling Server.


Node ID         : 1175   - This is a random number used for the IP phones.
                           I used 1175 as it's part of the IP: 10.11.75.xx

Hostname        : LABver5.0


ELAN IP         : 10.10.75.15
ELAN subnet mask: 255.255.255.0
ELAN gateway IP : 10.10.75.254

TLAN IP         : 10.11.75.15
TLAN subnet mask: 255.255.255.0
TLAN gateway IP : 10.11.75.254

Node IP         : 10.11.75.17

Call Server IP  : 10.10.75.5


CS 1000 Signaling Server Software Install Tool (sse-5.00.31)
============================================================

If you know it, please enter the Alternate NRS IP address.

Alternate NRS IP : Another NODE?


CS 1000 Signaling Server Software Install Tool (sse-5.00.31)
============================================================


You have entered the following parameters for this Leader SS :

		(Press <a>-<l> to correct, <y> to proceed, <n> to reconfigure all.)

        Please enter:

<CR> -> <y> - Yes, these parameters are correct.
        <n> - Re-enter all of the parameters


        <a> - Node ID          	: 1175
        <b> - Hostname         	: LABver5.0
        <c> - ELAN IP          	: 10.10.75.15
        <d> - ELAN subnet mask 	: 255.255.255.0
        <e> - ELAN gateway IP  	: 10.10.75.254
        <f> - TLAN IP          	: 10.11.75.15
        <g> - TLAN subnet mask 	: 255.255.255.0
        <h> - TLAN gateway IP  	: 10.11.75.254
        <i> - Node IP          	: 10.11.75.17
        <j> - Call Server IP   	: 10.10.75.5
              NRS configuration	: Primary GK + SIP
        <k> - Primary NRS IP   	: 10.11.75.15
        <l> - Alternate NRS IP 	:


        Enter Choice> y



The system will reboot.

Done!

If you need to load a follower, do it now. The process is the same, except that you will be prompted for the Leaders host name, and the configuration will be automatically loaded from it. In order for this to work, both cards must be network active.

Configuration / Customer Data

Back to the call Server, first configure 3 PTY (pseudo TTY) ports.

Check what is available by printing ADAN:

>ld 22

REQ  prt
TYPE adan
ADAN   HIST
  SIZE   25000
  USER MTC BUG
ADAN     TTY 0
  CTYP QSDI
  GRP
  DNUM 0
  DES
  FLOW NO
  USER MTC OSN
  XSM  YES
  TTYLOG       0
  BANR YES
ADAN     TTY 1
  CTYP QSDI
  GRP
  DNUM 1
  DES
  FLOW NO
  USER MTC TRF SCH BUG OSN
  XSM  NO
  TTYLOG       0
  BANR YES
ADAN     TTY 2
  CTYP QSDI
  GRP
  DNUM 2
  DES
  FLOW NO
  USER MTC TRF SCH BUG OSN
  XSM  NO
  TTYLOG       0
  BANR YES
ADAN     TTY 3
  CTYP QSDI
  GRP
  DNUM 3
  DES
  FLOW NO
  USER MTC TRF SCH BUG OSN
  XSM  NO
  TTYLOG       0
  BANR YES
ADAN     TTY 4
  CTYP CPSI
  DNUM 4
  PORT 0
  DES
  BPS  9600
  BITL 8
  STOP 1
  PARY NONE
  FLOW NO
  USER MTC TRF SCH BUG OSN
  XSM  NO
  TTYLOG       0
  BANR YES
ADAN     TTY 5
  CTYP CPSI
  DNUM 5
  PORT 1
  DES
  BPS  9600
  BITL 8
  STOP 1
  PARY NONE
  FLOW NO
  USER MTC TRF SCH BUG OSN
  XSM  NO
  TTYLOG       0
  BANR YES


REQ  ****

OVL000

TTY 6 is free, so we'll start there, and build 3 new PTY ports:

>ld 15

REQ  chg
TYPE adan
ADAN new
tty 6
CTYP pty
PORT 1
DNUM 06
DES  ELAN
FLOW
USER mtc bug sch
TTY
LOG
BANR


ADAN new
tty 7
CTYP pty
PORT 2
DNUM 07
DES  ELAN2
FLOW
USER mtc bug sch
TTY
LOG
BANR


ADAN new
tty 8
CTYP pty
PORT 3
DNUM 08
DES  ELAN 3
FLOW
USER mtc bug sch
TTY
LOG
BANR

Now enter the IP address info to the Call Server:

>ld 117

=> new host core_0 10.10.75.5
INET Data Added

=> new host gateway_ip 10.10.75.254
INET Data Added

=> new route 0.0.0.0 10.10.75.254
INET Data Added

=> chg mask 255.255.255.0
INET Data Changed

=> chg elnk active core_0

0x21865f18 (TOVL117_1):
0x21865f18 (TOVL117_1): 		*** rudpCltSendMsgShutdown ***
INET Database updated

=>
SRPT170 pbxLinkParsePCHFile stat() /u/db/node/node.pch file got wrong value, errno = 0x3 80003.
SRPT170 pbxLinkParseNodeFileByDir no nodeXXXX.cfg file was found.
SRPT091 HB: Local side IPL health change:2.
ELAN014 ELAN 0 host IP=10.10.75.15 is enabled
ELAN029 The server has registered with the CS but can not be found in the <node1175.cfg> file.

   IP <10.10.75.15>, hostName <LABVER5.0>, hostType <CPPM>.

=> update dbs               - changes do not take effect until this command.

OK

=> set open_alarm 0 133.224.1.10   (set an SNMP trap destination, if required)
=> prt host

Call Server
 ID  Hostname         IP Address
  1  SECONDARY_ENET   137.135.128.254
  2  LOCAL_PPP_IF     137.135.192.4
  3  REMOTE_PPP_IF    100.1.1.1
  4  CORE_0           10.10.75.5
  5  GATEWAY_IP       10.10.75.254

Save your work!

Don't forget to regularly EDD, as if you reboot the CS with unsaved changes, you will lose them!
>ld 43
EDD000

.edd

Check connectivity from the maintenance PC command line with PING:

C:\>ping 10.10.75.5     - the Call Server

Pinging 10.10.75.5 with 32 bytes of data:

Reply from 10.10.75.5: bytes=32 time<1ms TTL=64
Reply from 10.10.75.5: bytes=32 time<1ms TTL=64
:

C:\>ping 10.10.75.15    - the Signalling Server

Pinging 10.10.75.15 with 32 bytes of data:

Reply from 10.10.75.15: bytes=32 time<1ms TTL=64
Reply from 10.10.75.15: bytes=32 time<1ms TTL=64
:

IF NOT performing an upgrade (ie, this is a new install), create a new default Customer Data Base: CUST 0 (customer zero).
SKIP THIS STEP if a Customer Data Base was restored from an EDD compact flash backup during the upgrade/installation.

>ld 15

REQ: new
TYPE: default       - creates a Default Customer Data Block
CUST 0

Type: DEFAULT will create a Default Customer Data Block for the CUST number, without going through ALL the CDB prompts.

Check the superloops

Remove the conference loop 0 0 if the loop and shelf configuration started out as Loop 0 shelf 0.
I had set the Call server and the signalling server to loop 4 shelf 1 earlier so this is a non issue.

Example of getting rid of an unwanted loop:

>ld 97

REQ  chg
TYPE supl
SUPL x12      - The X prefix removes the loop 12.

WRAP UP SUPL 012 ( REMOVED ) ..OK

You can use Element Manager to make changes. Open a web browser 10.10.75.15 (Signalling Server IP address).

Add the conference loops and TDS loops:

Change to Common Equipment parameters :

Extended Conference/TDS/MFS :

TDS Loop Number : 60 0 0
TDS Loop Number : 62 0 0
TDS Loop Number : 64 4 1
TDS Loop Number : 66 4 1
Conference Loop Numbers : 61 0 0
Conference Loop Numbers : 63 0 0
Conference Loop Numbers : 65 4 1
Conference Loop Numbers : 65 4 1
Digital Trunk Interface Loop Number :

REQ  prt
TYPE cequ

CEQU
  MPED 8D
  TERM
  REMO
  TERD
  REMD
  TERQ
  REMQ
  SUPL V000 V004
  SUPC
  SUPF
  XCT
  CONF
  MGTDS        IPMG  IPMG_TYPE
         060  000  0   MGC
         062  000  0   MGC
         064  004  1   MGC
         066  004  1   MGC
  MGCONF       IPMG  PORTS  IPMG_TYPE
         061  000  0   30    MGC
         063  000  0   30    MGC
         065  004  1   30    MGC
         067  004  1   30    MGC
  MFSD * 060 * 062 * 064 * 066
  MISP         MG_CARD
  EXT0  3PE
  EXT1  3PE
  MCFN  011 MB

Add DTR Digitone receivers.

There are 16 Digitone receivers per MGC card.

Format would be:loop shelf 14 0-7
 loop shelf 15 0-7
next card:loop shelf 14 0-7
 loop shelf 15 0-7

That is a total of 32 DTR TN numbers.

1 000 0 14 00 8D 28 SEP 2009
2 000 0 14 01 8D 28 SEP 2009
3 000 0 14 02 8D 28 SEP 2009
4 000 0 14 03 8D 28 SEP 2009
5 000 0 14 04 8D 28 SEP 2009
6 000 0 14 05 8D 28 SEP 2009
7 000 0 14 06 8D 28 SEP 2009
8 000 0 14 07 8D 28 SEP 2009
9 000 0 15 00 8D 28 SEP 2009
10 000 0 15 01 8D 28 SEP 2009
11 000 0 15 02 8D 28 SEP 2009
12 000 0 15 03 8D 28 SEP 2009
13 000 0 15 04 8D 28 SEP 2009
14 000 0 15 05 8D 28 SEP 2009
15 000 0 15 06 8D 28 SEP 2009
16 000 0 15 07 8D 28 SEP 2009

Check them in ld 20

REQ: prt
TYPE: dtr
TN
CDEN
DATE
PAGE

TN   000 0 14 00  VIRTUAL
TYPE DTR
CDEN 8D
DATE 28 SEP 2009

TN   000 0 14 01  VIRTUAL

Install a node and signalling server properties

Element Manager / IP Network / Nodes: Servers, Media Cards

IP Telephony Node Node ID 1175
Your IP phones will look for this Node.

Telephony LAN (TLAN) Node IP address   	10.11.75.17
Embedded LAN (ELAN) gateway IP address 	10.10.75.254
Embedded LAN (ELAN) subnet mask  	255.255.255.0
Voice LAN (TLAN) subnet mask  		255.255.255.0

VGW and IP phone codec profile
QoS
LAN configuration
SNTP
Virtual Trunk Network Health Monitor configuration
H323 GW Settings
Firmware
SIP GW Settings
SIP URI Map
SIP CD Services
SIP CTI Services


Signaling Servers  Signaling Server 0.0.0.0
Properties
Role Unknown
Type UnknownSS
Embedded LAN (ELAN) IP address 			10.10.75.15
Embedded LAN (ELAN) MAC address 		00:1b:ba:fd:0c:dc   *
Telephony LAN (TLAN) IP address 		10.11.75.15
Telephony LAN (TLAN) gateway IP address  	10.11.75.254
Hostname    					Hostname
H323 ID  					1175
Enable Line TPS
Enable IP Peer Gateway (Virtual Trunk TPS) NoneH.323 onlySIP onlyH.323 and SIP

If Telephony LAN(TLAN) IP address and Telephony LAN(TLAN) gateway IP address are not in the same subnet as Telephony LAN(TLAN) Node IP address when Line TPS or IP Peer Gateway is enabled, then the TPS and/or VTRK applications will not run.

Enable SIP Proxy / Redirect Server

Local SIP TCP/UDP Port to Listen to

SIP Domain name
SIP Gateway Endpoint Name
SIP Gateway Authentication Password
Enable Gatekeeper
Network Routing Service Role PrimaryAlternateFailsafe

Save and Transfer.

Reboot the Signalling server card.

Configure the MGC IP addresses.

Connect the serial cable from the back of the chassis accociated with the MGC card slot to the computer.

Make the entries after the card boots up.

You have entered the following parameters for this MG 1000E:


ELAN IP              : 10.10.75.43
ELAN subnet mask     : 255.255.255.0
ELAN gateway IP      : 10.10.75.254
Primary CS IP        : 10.10.75.5
TLAN set to auto negotiate.
ELAN set to auto negotiate.
ELAN security Disabled
MGC is configured for normal operation (Not TDM only).

Is this correct? (y/n/[a]bort) : y
The above changes require reboot to take effect.

The MGC reboots and - if the adresses are correct - registers.
Look for the loop and shelf numbers to appear in the MGC display.

Configure MGC daughter board(s)

Use Element Manager Ip network / Media Gateway
Click on the loop shelf underlined area
Click NEXT to get to the configuration.

If the card is a replacemnt, this will not need to be done.

IPMG 0 0 Media Gateway Controller (MGC) Configuration

Media Gateway Controller Hostname 	MGC
Management LAN (ELAN) IP address  	10.10.75.43
Management LAN (ELAN) gateway IP address 10.10.75.254
Management LAN (ELAN) subnet mask  	255.255.255.0
Voice LAN (TLAN) IP address  		10.11.75.43
Voice LAN (TLAN) gateway IP address  	10.11.75.254
Voice LAN (TLAN) subnet mask  		255.255.255.0

DSP Daughterboard 1 Type of the DSP Daughterboard DB96          96 or 32 channel card
Voice LAN (TLAN) IP address  		10.11.75.94             refer to the cut sheet
Voice LAN (TLAN) gateway IP address 	10.11.75.254
Voice LAN (TLAN) subnet mask 		255.255.255.0
Hostname 				DB1

DSP Daughterboard 2 Type of the DSP Daughterboard NODBDB32
Voice LAN (TLAN) IP address
Voice LAN (TLAN) gateway IP address 10.11.75.254
Voice LAN (TLAN) subnet mask 255.255.255.0
Hostname

VGW and IP phone codec profile
QoS
LAN configuration

Configure the Voice Gateways

Use Element Manager to configure the voice gateways.
This is a bit burried uder the element manager screens. Peel back three layers and you will be there. IP network / media gateway / select the underlined loop.

Click NEXT

Go to the very bottom and click VGW Channels

Click ADD - Remember to come back and do all the loops.

  Add VGW channels
  Retrieving VGW Channels information...

Number of VGW Channels:  96
Trunk data block:   VGW
Terminal Number:    <default>  000 0 11 0

The 32 channel cards are going to start at L S 0 0. This is slot 0.
The 96 version has three slots: Slot 11, 12, and 13. So the 96 DSP add on card has three sets of 32 slots.
96 Channel DSP card Superloop numbers are going to be: L S 11: 0 - 31, L S 12: 0 - 31, & L S 13: 0 - 31

Designator field for trunk: whatever
Extended Trunk: DSP DB 32 (DB32) or DSP DB 96 (DB96)
Customer number: 00

Adding a card.

It is useful to id the card to make sure you have the correct loop number.
Example: ID the card

>ld 20

REQ: idc 0 0 7

 => NT8D09AK  08 NNTM1831DUG7 0000

ID the unit (phone) when trouble shooting individual phones. Someone may have moved a phone and replaced with a different model phone without notifying telephone support.

This example returns results from an IP phone.

>ld 20

REQ: idu 96 0 0 0
1120TN: 096 0 00 00  V
TN ID CODE: 1120


ISET MAC ADR: 00:19:E1:E1:D8:FF
ISET IP ADR: 10.11.75.100:5000
LTPS IP ADR: 10.10.75.15


MANUFACTURER CODE:  [NAME]
MODEL: IP Phone 1120E
NT CODE: NTYS03AA
COLOR CODE: 66
RLS CODE: 24
SER NUM: E1D8FF
FW/SW VERSION: 0624C4A

REQ:

Add some cards....

>ld 20

REQ: new
TYPE: cardslt 0 0 10          cardslt is the analog card

CTYP <enter>

Add a Multi-line Telephone Line Card (CARDMLT) on three loops: 4, 5 and 6. Think of these special 48 port cards as three cards in one. It can only be installed in slot 4 of the main chassis (which is keyed). Refer to NTDK16BA - 48 Port Digital Line Card for more details.

REQ: new
TYPE: cardmlt                 this is a digital card

TN   0 0 4

CTYP


MEM AVAIL: (U/P): 99258491    USED U P: 4987715 23615    TOT: 104269821
DISK SPACE NEEDED: 11 KBYTES
DIGITAL TELEPHONES     AVAIL:   128    USED:     0    TOT:   128
IP USERS               AVAIL:    32    USED:     0    TOT:    32
BASIC IP USERS         AVAIL:     0    USED:     0    TOT:     0
TEMPORARY IP USERS     AVAIL:     0    USED:     0    TOT:     0
ACD AGENTS             AVAIL:    10    USED:     0    TOT:    10
PCA                    AVAIL:     0    USED:     0    TOT:     0
AST                    AVAIL:     1    USED:     0    TOT:     1
SIP CONVERGED DESKTOPS AVAIL:     0    USED:     0    TOT:     0
SIP CTI TR87           AVAIL:     0    USED:     0    TOT:     0
TNS                    AVAIL: 32728    USED:    32    TOT: 32760
DATA PORTS             AVAIL: 32760    USED:     0    TOT: 32760


REQ: new
TYPE: cardmlt

TN   0 0 5

CTYP


MEM AVAIL: (U/P): 99258363    USED U P: 4987763 23695    TOT: 104269821
DISK SPACE NEEDED: 11 KBYTES
DIGITAL TELEPHONES     AVAIL:   128    USED:     0    TOT:   128
IP USERS               AVAIL:    32    USED:     0    TOT:    32
BASIC IP USERS         AVAIL:     0    USED:     0    TOT:     0
TEMPORARY IP USERS     AVAIL:     0    USED:     0    TOT:     0
ACD AGENTS             AVAIL:    10    USED:     0    TOT:    10
PCA                    AVAIL:     0    USED:     0    TOT:     0
AST                    AVAIL:     1    USED:     0    TOT:     1
SIP CONVERGED DESKTOPS AVAIL:     0    USED:     0    TOT:     0
SIP CTI TR87           AVAIL:     0    USED:     0    TOT:     0
TNS                    AVAIL: 32728    USED:    32    TOT: 32760
DATA PORTS             AVAIL: 32760    USED:     0    TOT: 32760


REQ: new
TYPE: cardmlt

TN   0 0 6

CTYP


MEM AVAIL: (U/P): 99258235    USED U P: 4987811 23775    TOT: 104269821
DISK SPACE NEEDED: 11 KBYTES
DIGITAL TELEPHONES     AVAIL:   128    USED:     0    TOT:   128
IP USERS               AVAIL:    32    USED:     0    TOT:    32
BASIC IP USERS         AVAIL:     0    USED:     0    TOT:     0
TEMPORARY IP USERS     AVAIL:     0    USED:     0    TOT:     0
ACD AGENTS             AVAIL:    10    USED:     0    TOT:    10
PCA                    AVAIL:     0    USED:     0    TOT:     0
AST                    AVAIL:     1    USED:     0    TOT:     1
SIP CONVERGED DESKTOPS AVAIL:     0    USED:     0    TOT:     0
SIP CTI TR87           AVAIL:     0    USED:     0    TOT:     0
TNS                    AVAIL: 32728    USED:    32    TOT: 32760
DATA PORTS             AVAIL: 32760    USED:     0    TOT: 32760

Add an analog phone

REQ: new
TYPE: 500
TN   0 0 10 0
CDEN
DES  test0
CUST 0
ERL
WRLS NO
DN   2000
  MARP
  CPND  VMB AST  IAPG HUNT TGAR LDN  NCOS RNPG SGRP CLS  SCI  MLWU_LANG PLEV FTR

Add a bunch of analog phones:

>ld 20

REQ: new <qty>    - add multiple identical sets, QTY
TYPE: 500
TN   0 0 10 1     - start TN if adding a QTY
CDEN
DES  test
CUST 0
ERL
WRLS NO
DN   2001         - start DN if adding a QTY
  MARP
  CPND   VMB AST  IAPG HUNT TGAR LDN  NCOS RNPG SGRP CLS  SCI  MLWU_LANG PLEV FTR

DN numbers will be applied at 2001 and count up.

Add a superloop for IP phones with Element Manager:

Core Equipment / Superloops / add a virtual loop.

Superloops 96 Property Configuration

Input Description Input Value
Superloop (SUPL)  		96
Superloop Type (SUPT)  		virtual

Check that the superloop is installed.

ld 97

REQ  prt
TYPE supl
SUPL           - enter to print them all


SUPL  SUPT SLOT XPEC0   XPEC1   SHLF   ZONE0/1  IPR0/1


 000  IPMG ---- -- - -  -- - -  0    001      10.10.75.40
                                1    ---      ---------------
 004  IPMG ---- -- - -  -- - -  0    ---      ---------------
                                1    001      10.10.75.43
 096  ---- ---- VIRTUAL -- - -  ---   --- -    ---      ---------------

The IP phone will not ring to an analog phone untill you set up the voice gateway.

You also must configure the DDB (Digital data block) in ld 73.

The alarm will be this Error:

Configuration cannot be saved. 1.5 Mb/s DTI/PRI pad category table does not exist. Create a pad category table using LD 73.

TRSH (Threshold) You will need this value set. We selected the number 1. Define a TRSH value from 0 to 15 to get the DDB to actually install. Enter this TRSH value in LD 17 when defining a DTI/PRI loop.

ld 73

MEM AVAIL: (U/P): 99249115    USED U P: 4995486 25220    TOT: 104269821
DISK SPACE NEEDED: 12 KBYTES


REQ  chg
TYPE ddb
MGCLK
TRSH 1
RALM
BIPC
LFAC
BIPV
SRTK
SRNT
LFAL
SRIM
SRMM
TRSH
ICS


REQ  prt
TYPE ddb

TRSH 01
RALM 3
BIPC 2
LFAC 3
BIPV 3 2
SRTK 5 30
SRNT 15 3
LFAL 17 511
SRIM 1
SRMM 2
ICS
