IP Office Phones

IP Office Release 11.1 supports the following phones:

➤ At-a-Glance:

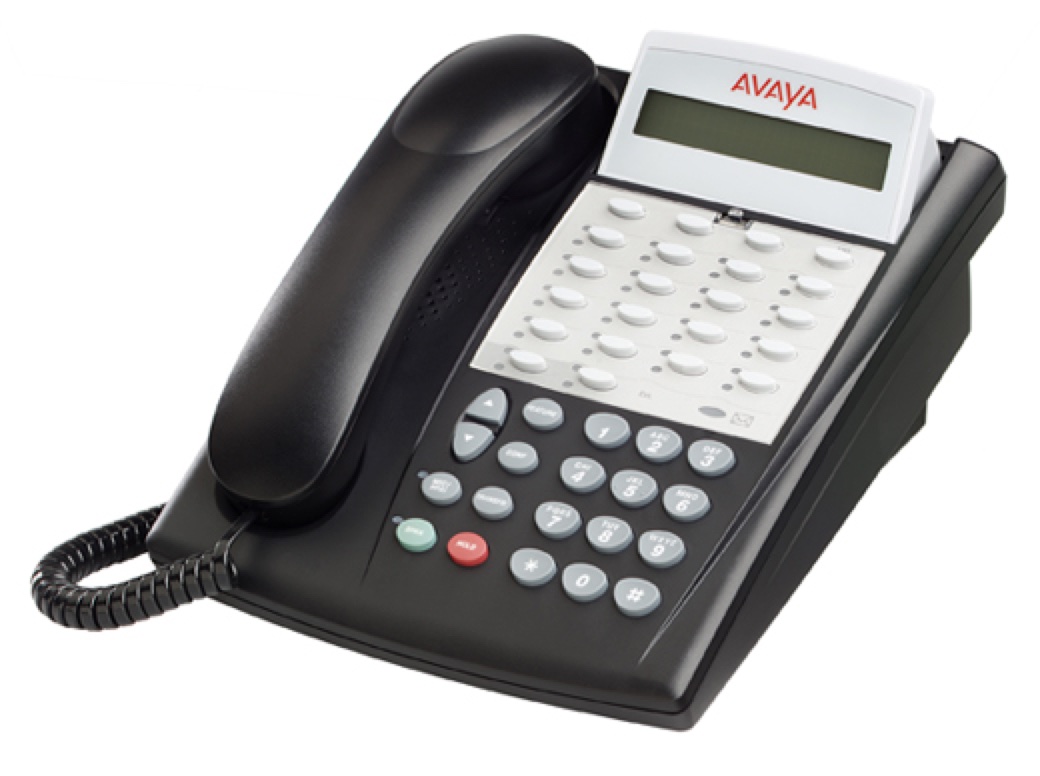

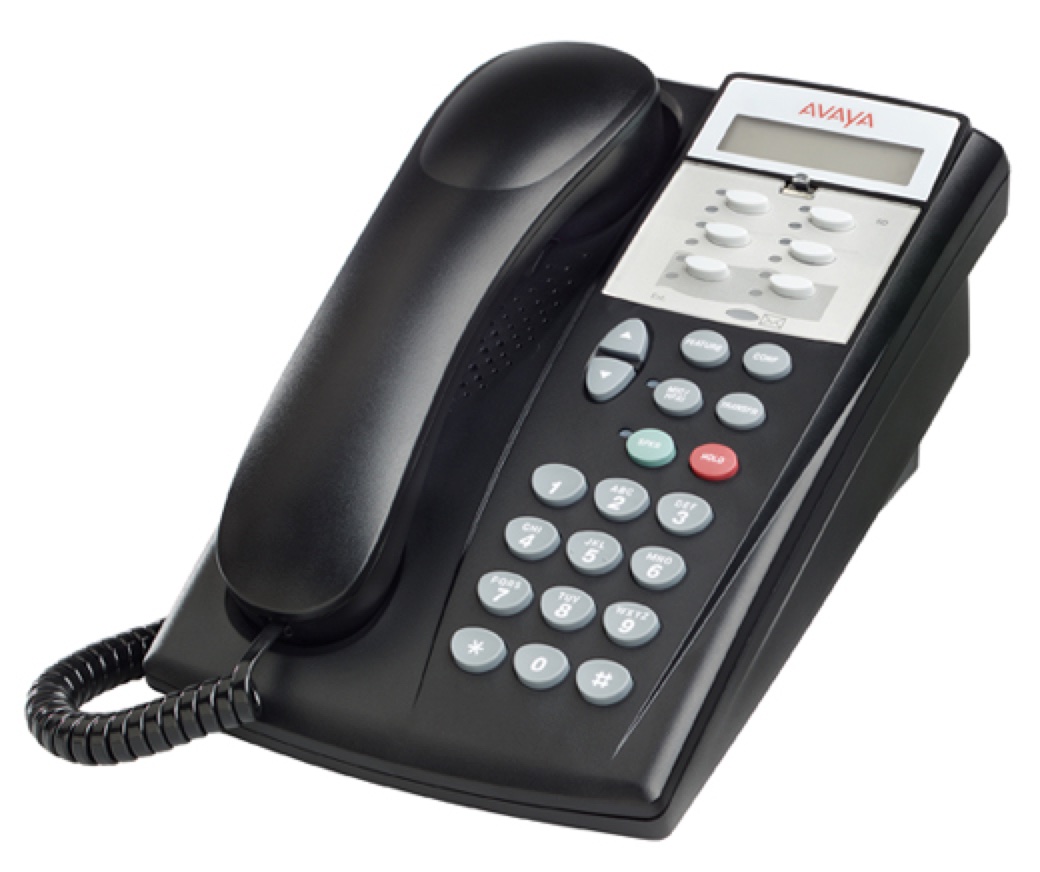

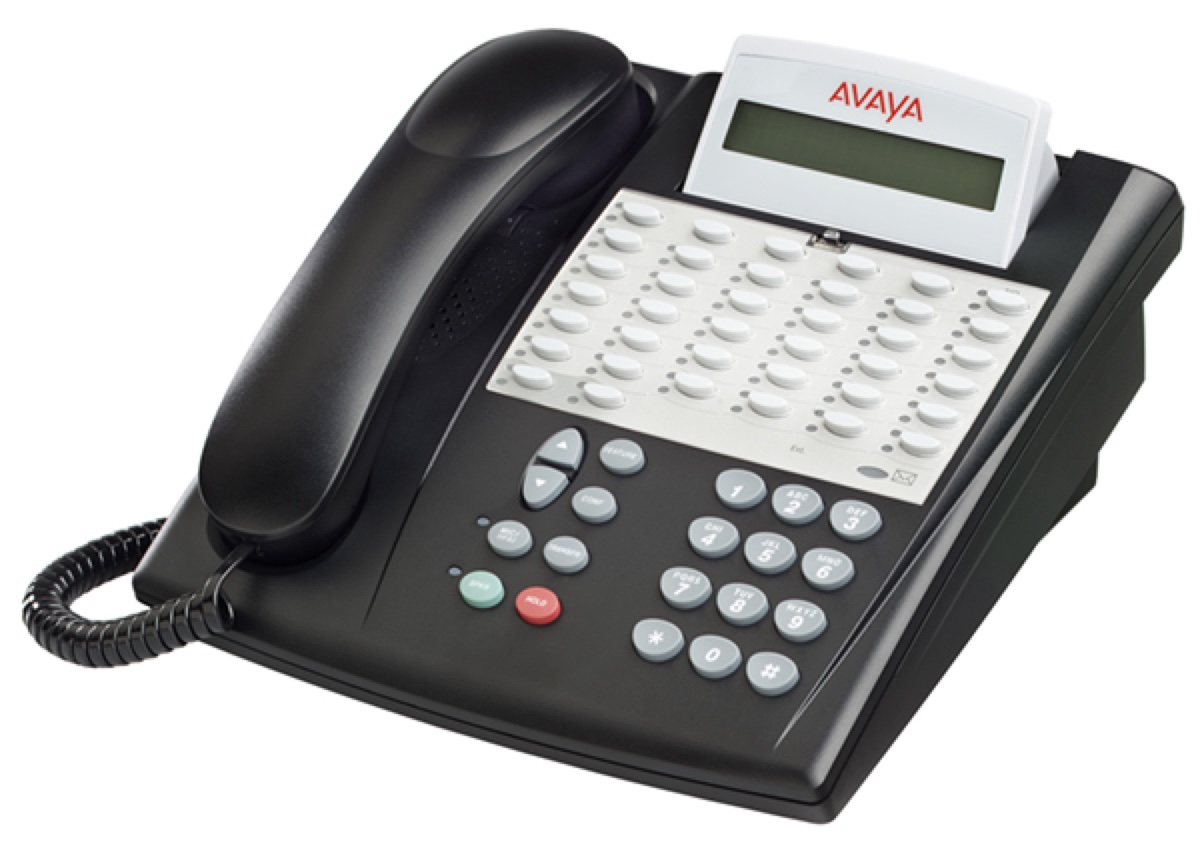

Enhanced Tip and Ring (ETR Ports)
Only supported in Basic Edition systems running a North American locale and U-Law companding.

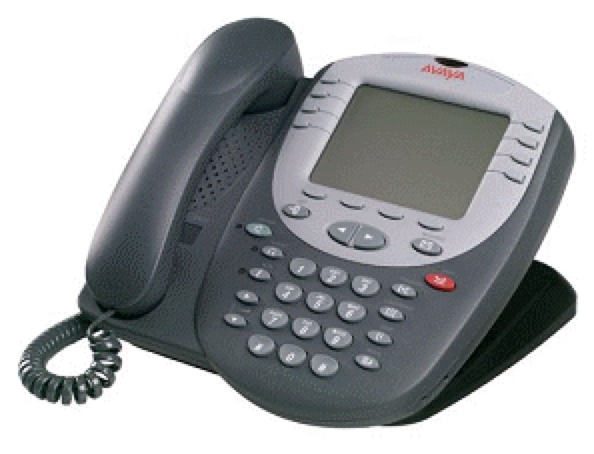

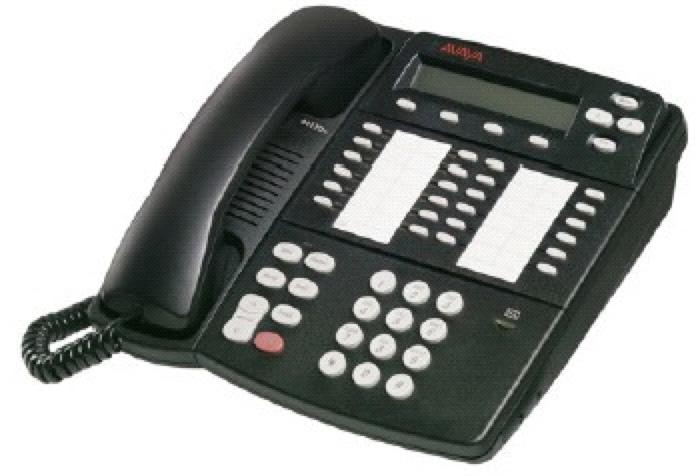

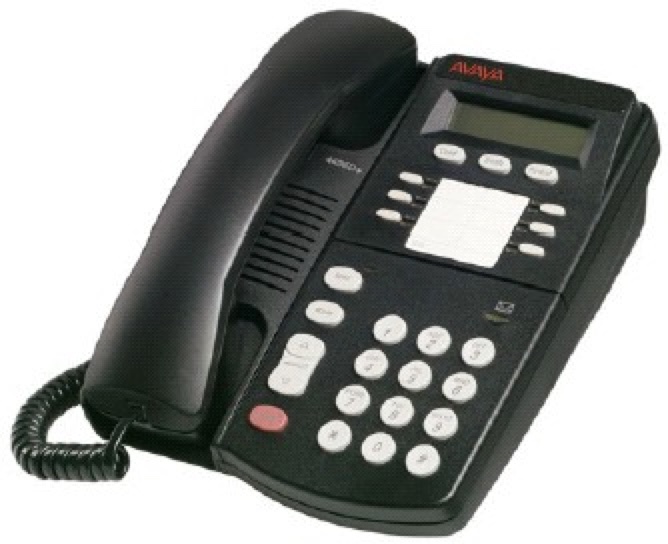

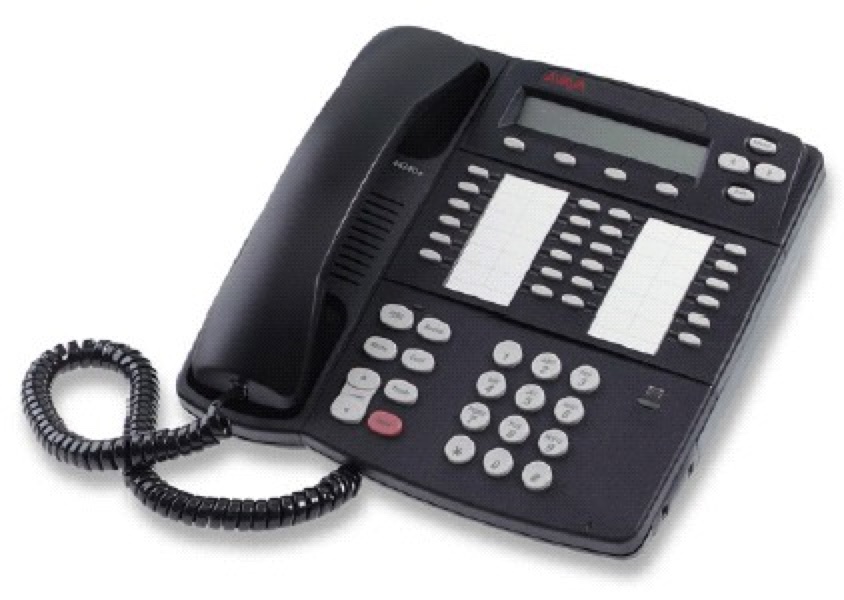

Avaya DS Digital (DS Ports)

The following are only supported in IP Office standard modes:

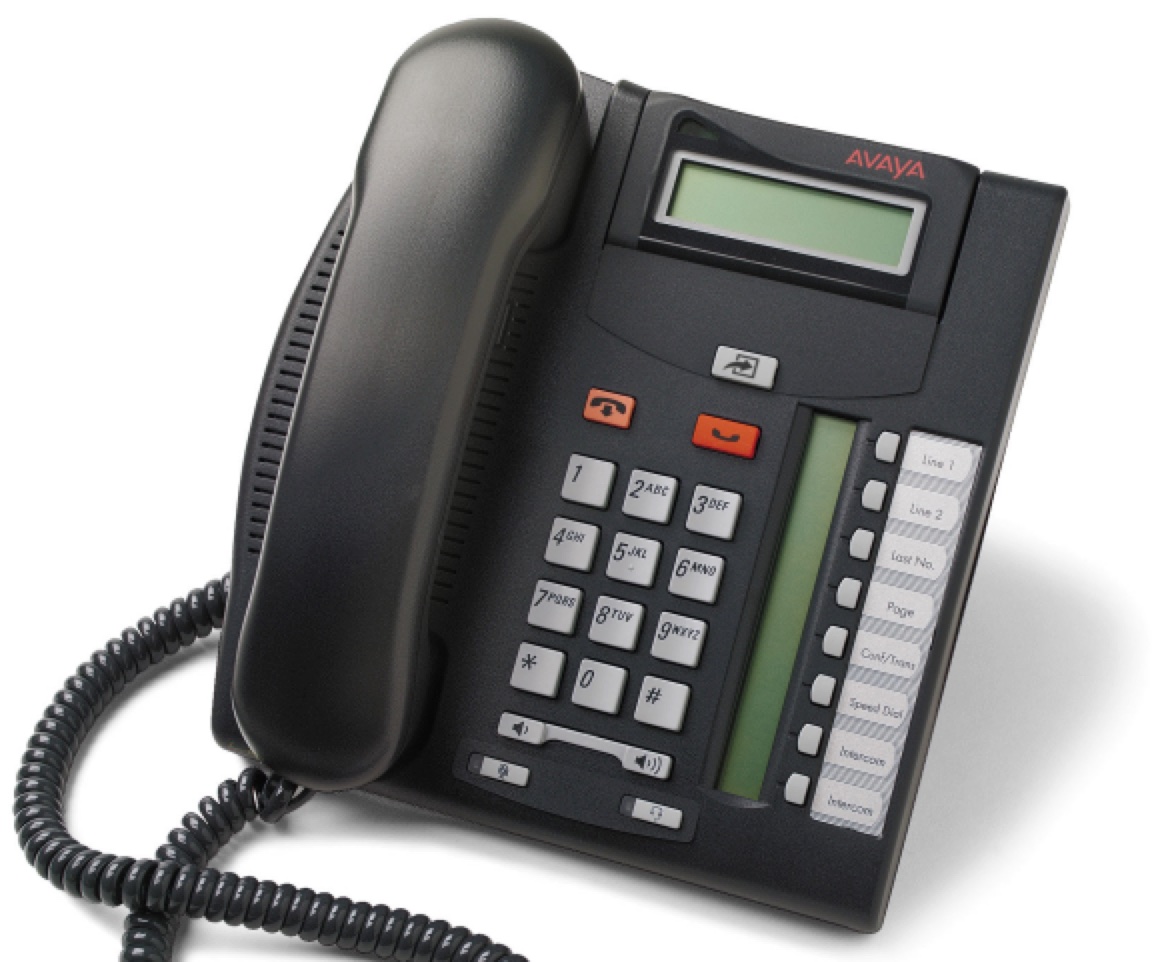

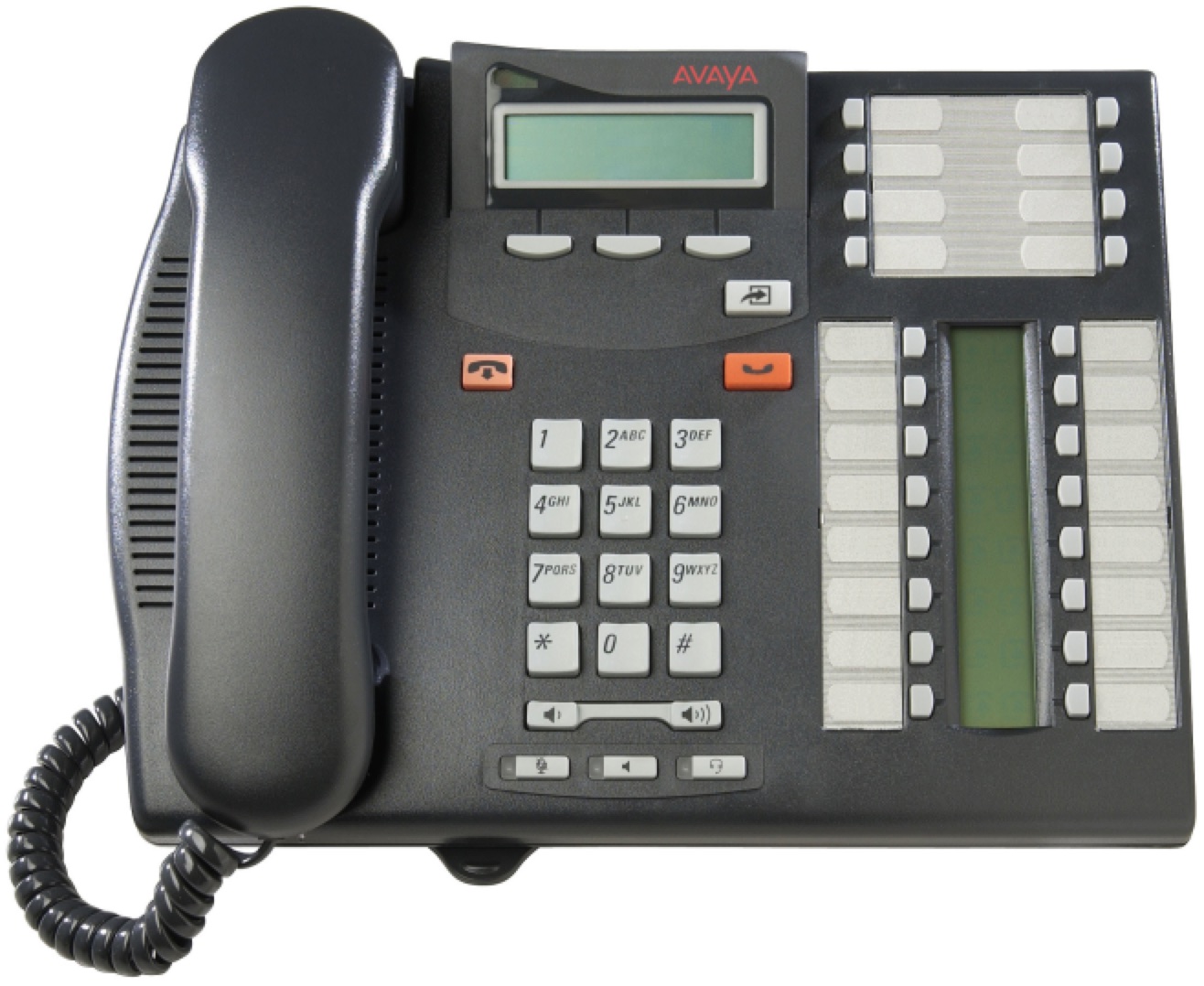

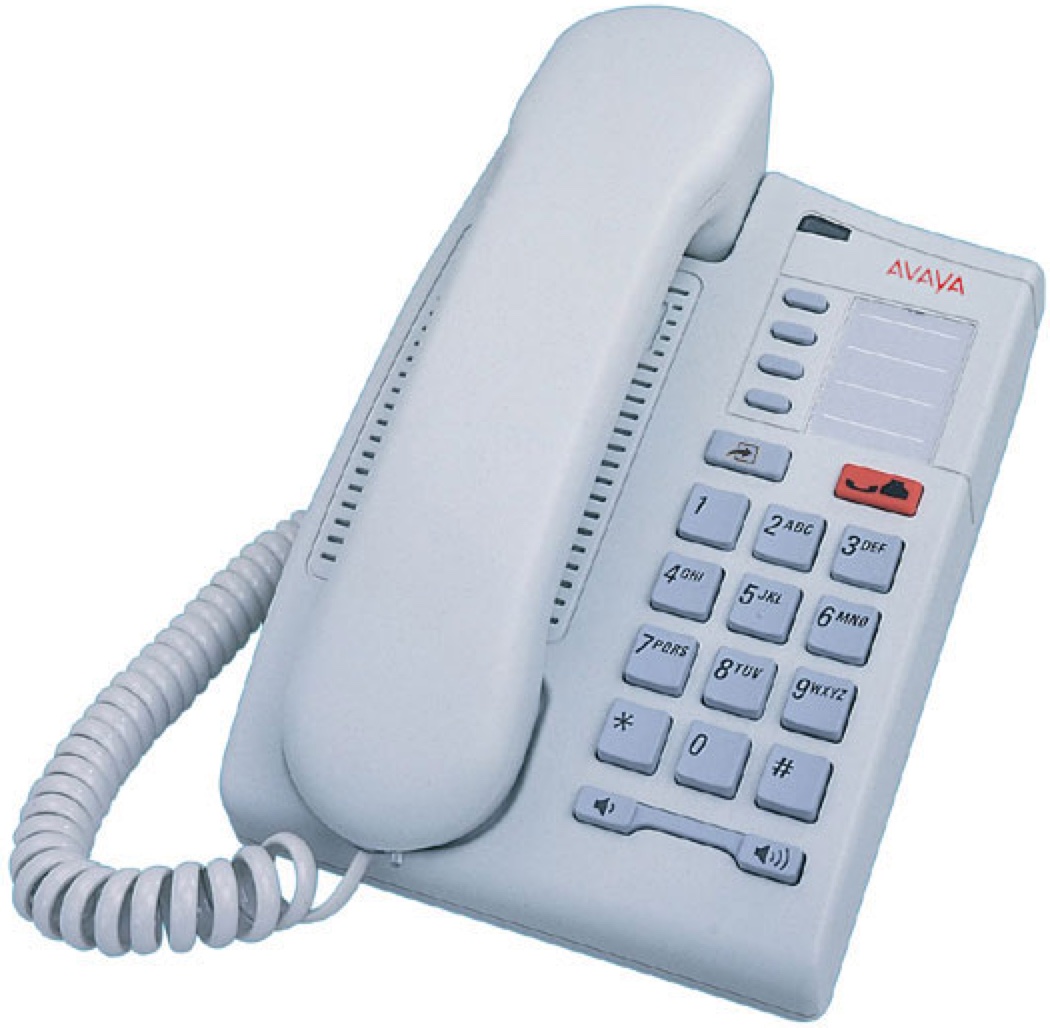

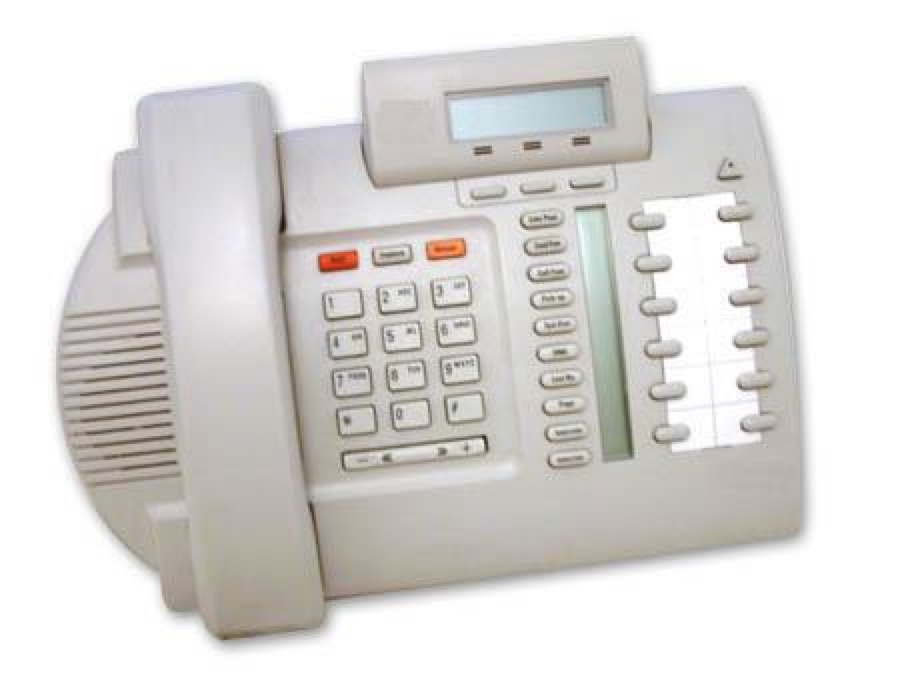

Avaya BST Digital (BST Ports)

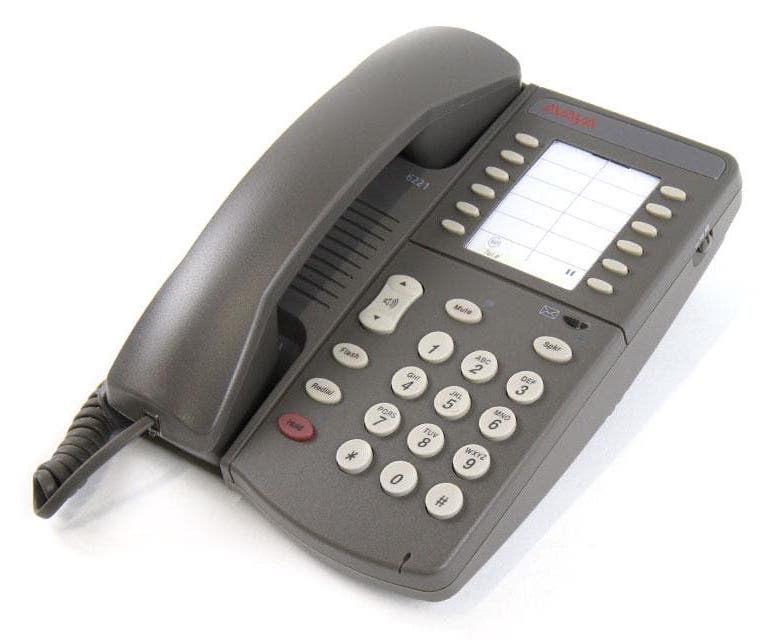

Analog phones (PHONE Ports)

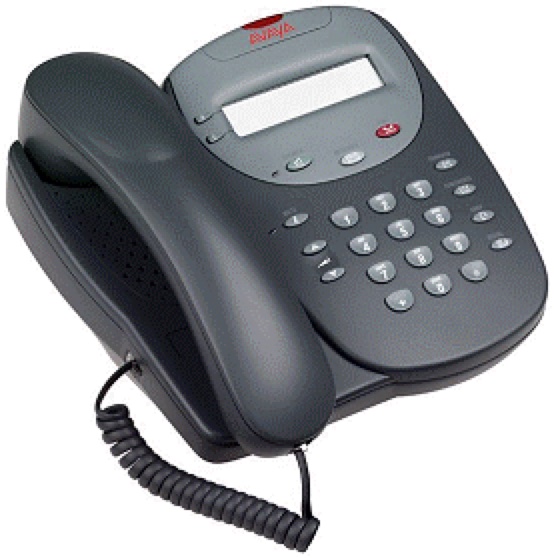

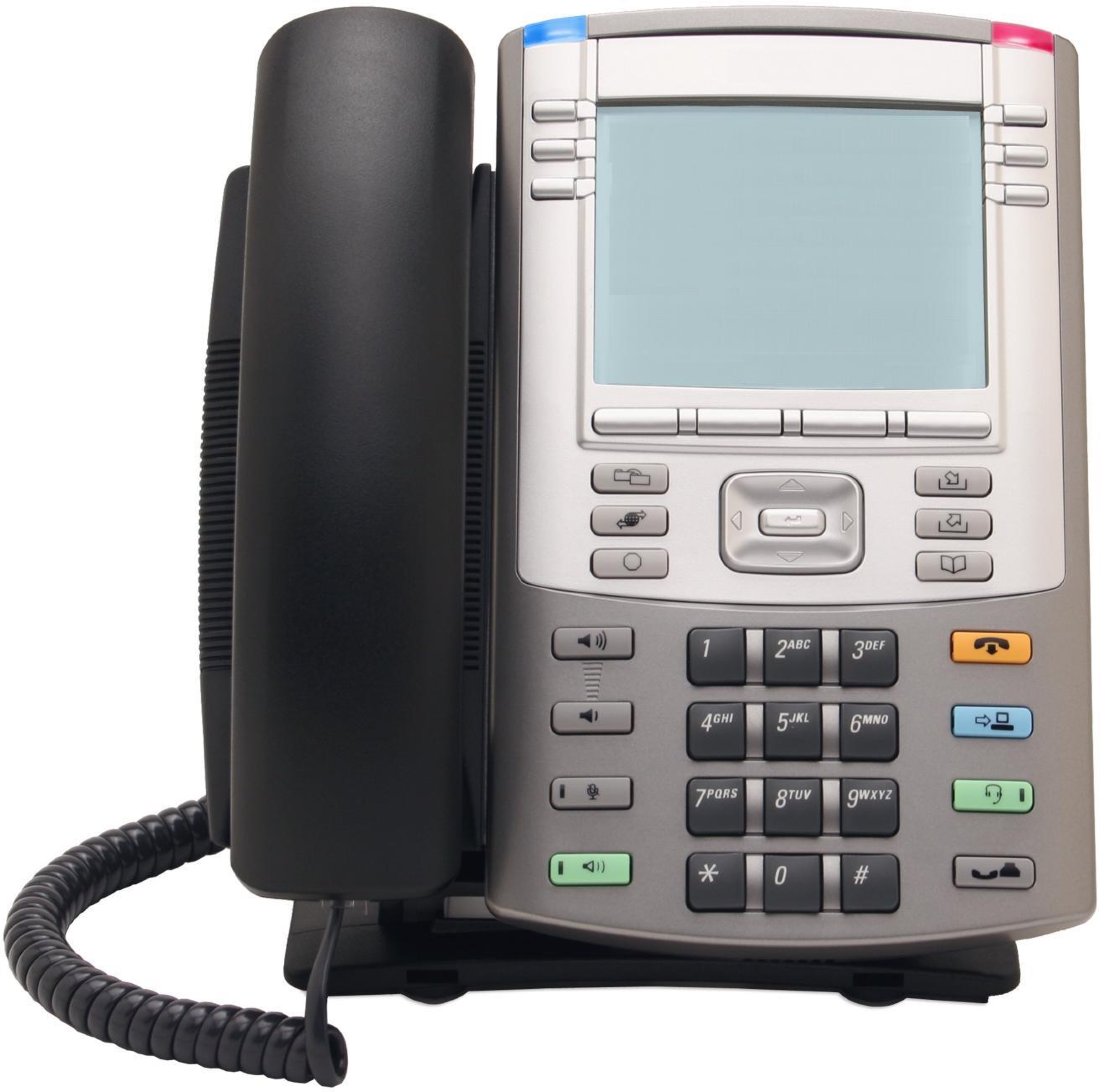

H323 phones (LAN/WAN port)

SIP phones (LAN/WAN port)

IP Softphones

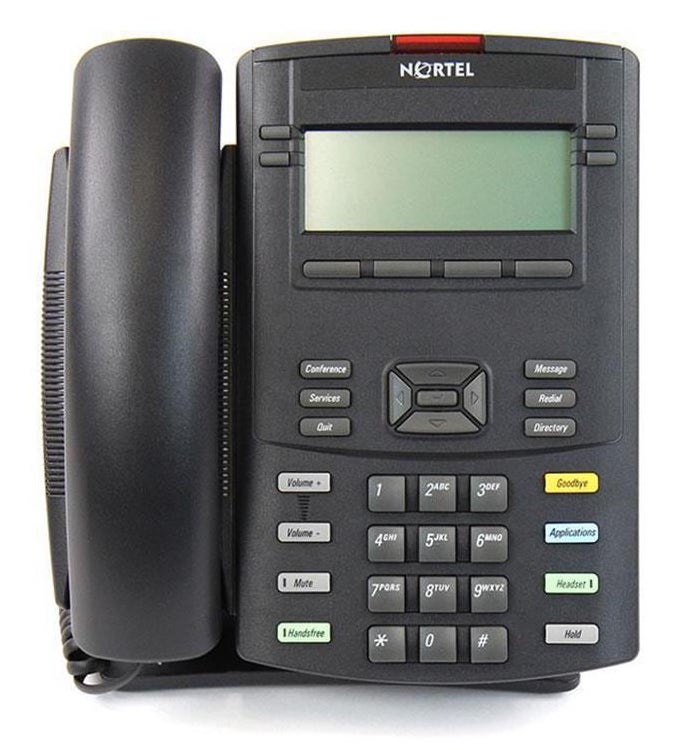

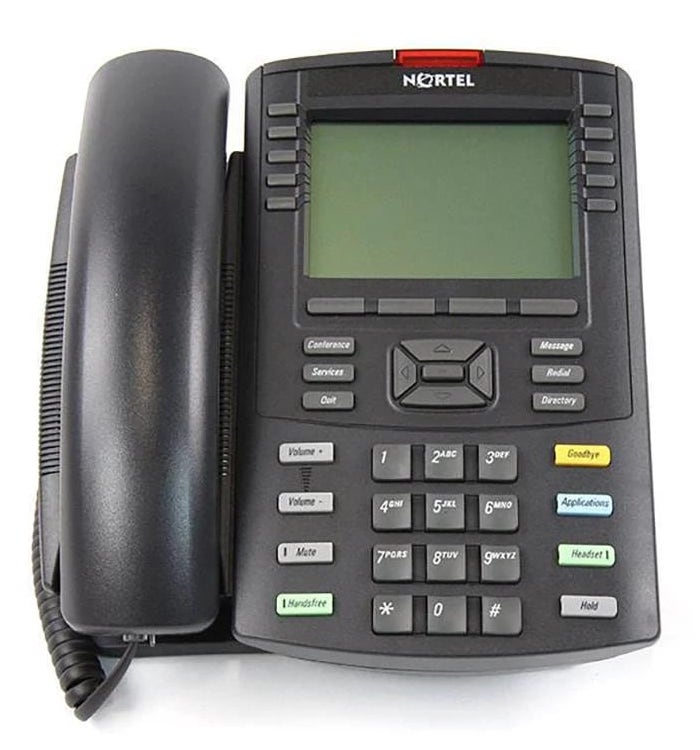

Other Phones
Whilst non-Avaya analog and IP phones may operate with the system, Avaya will not provide support for those phones.

Executives/
Managers
5420

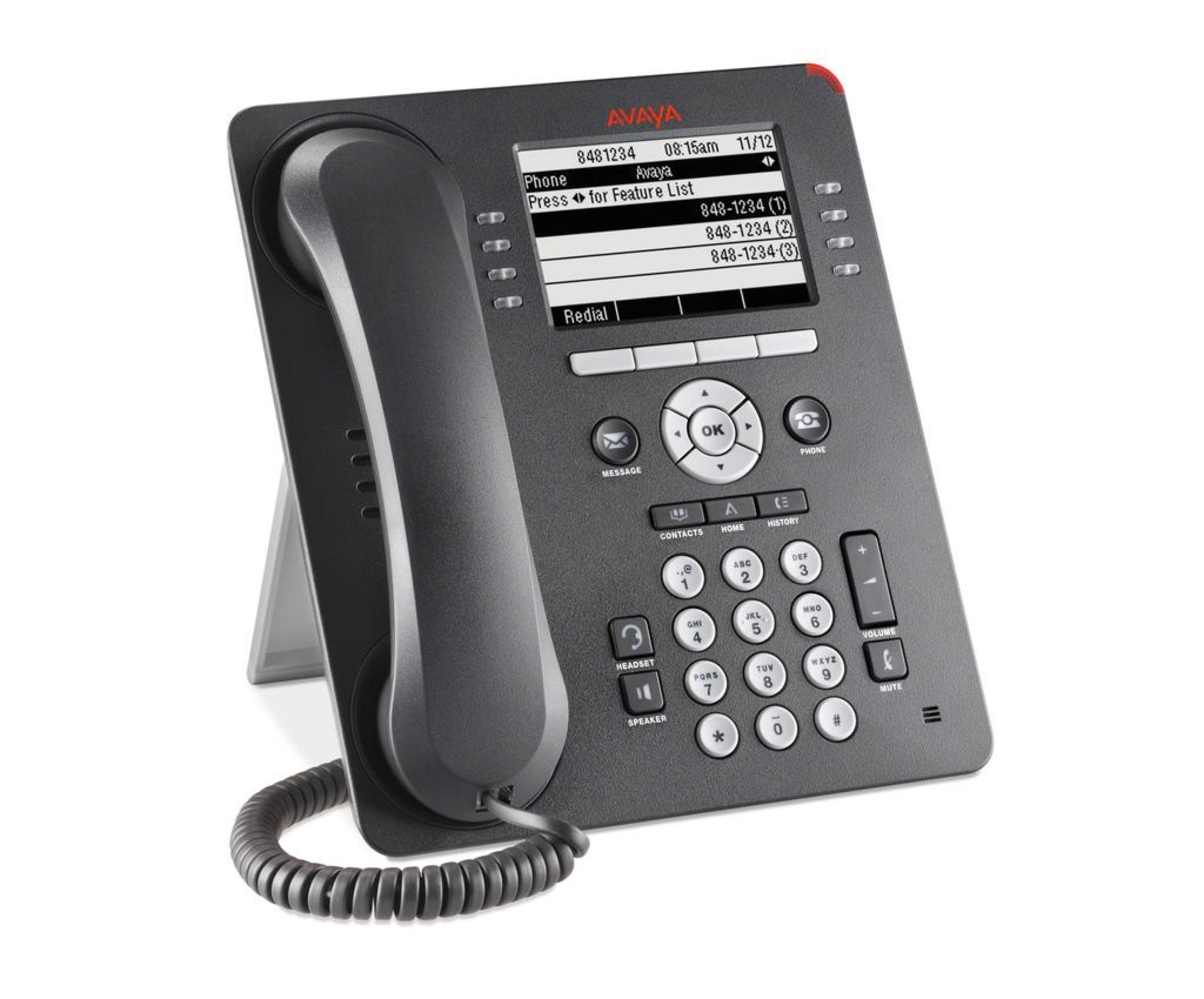

9508

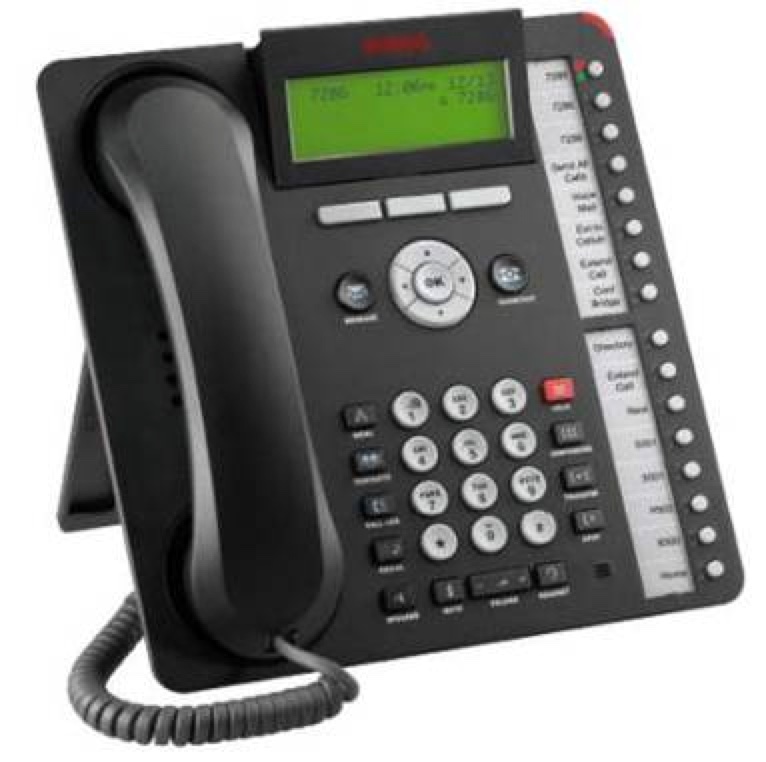

1416/1616

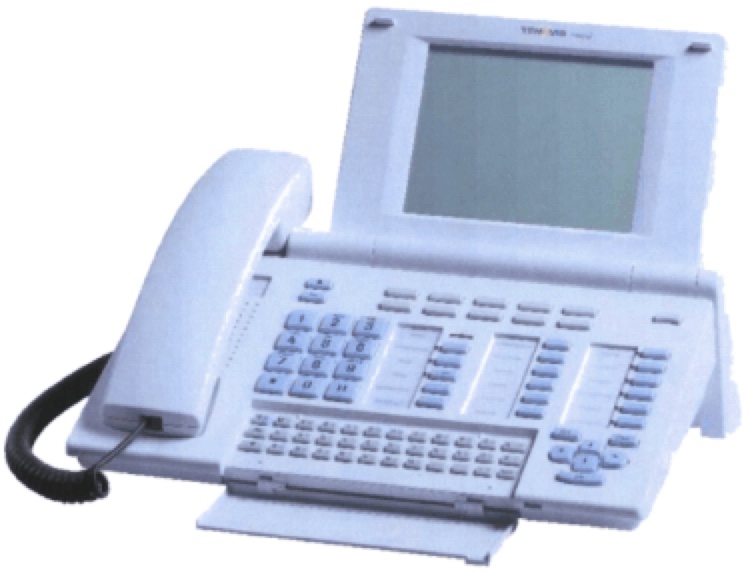

T3 Comfort

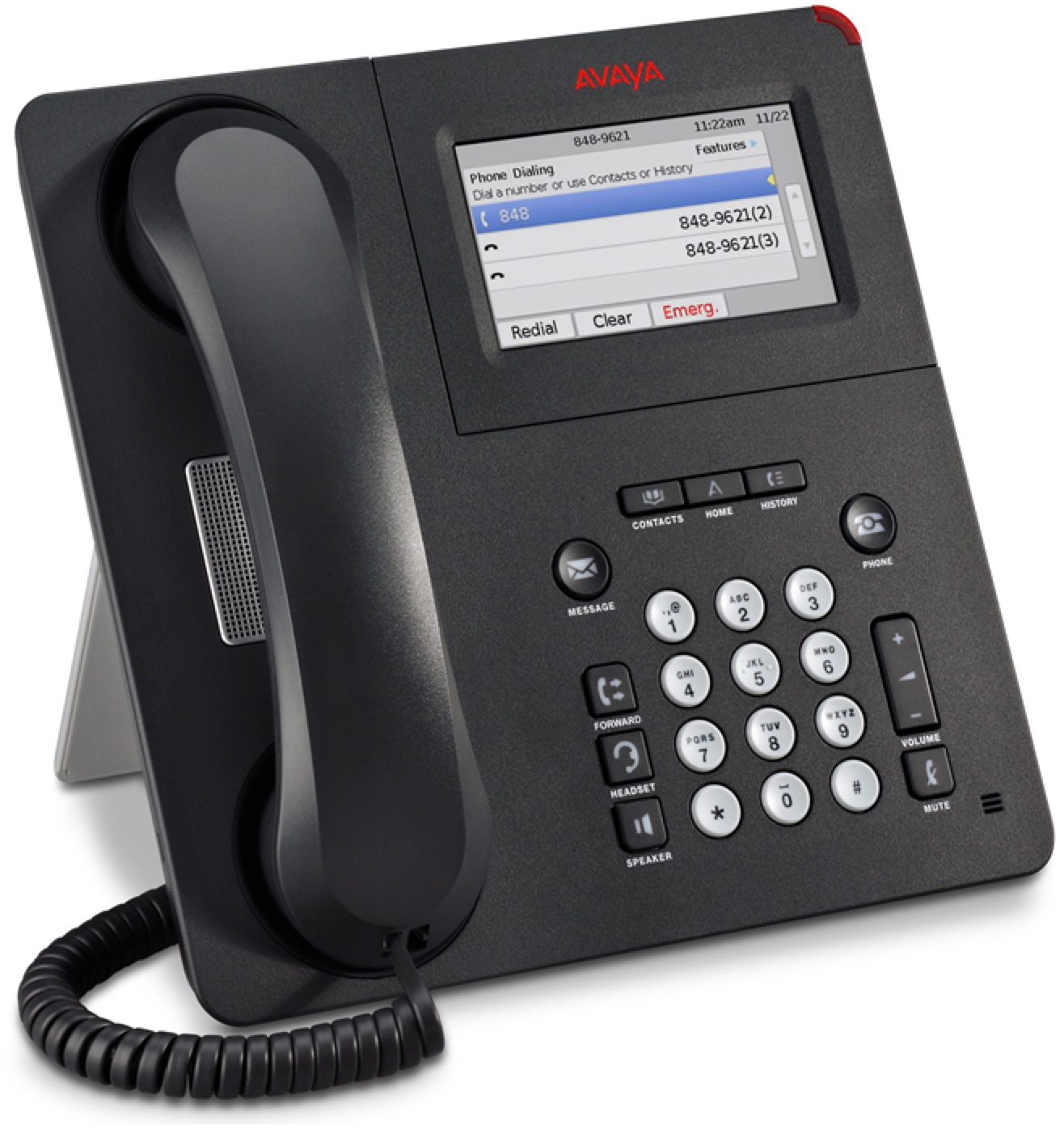

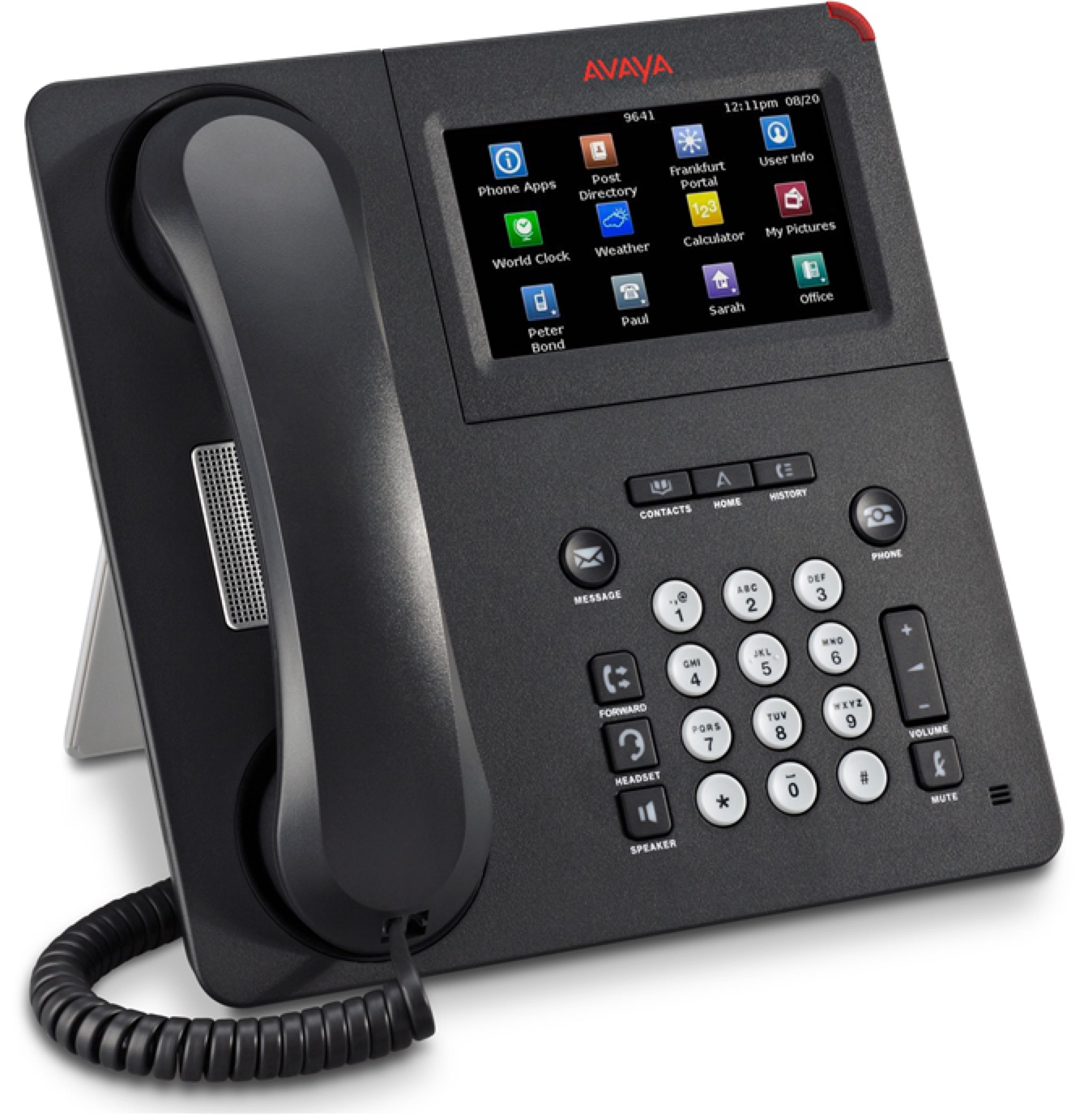

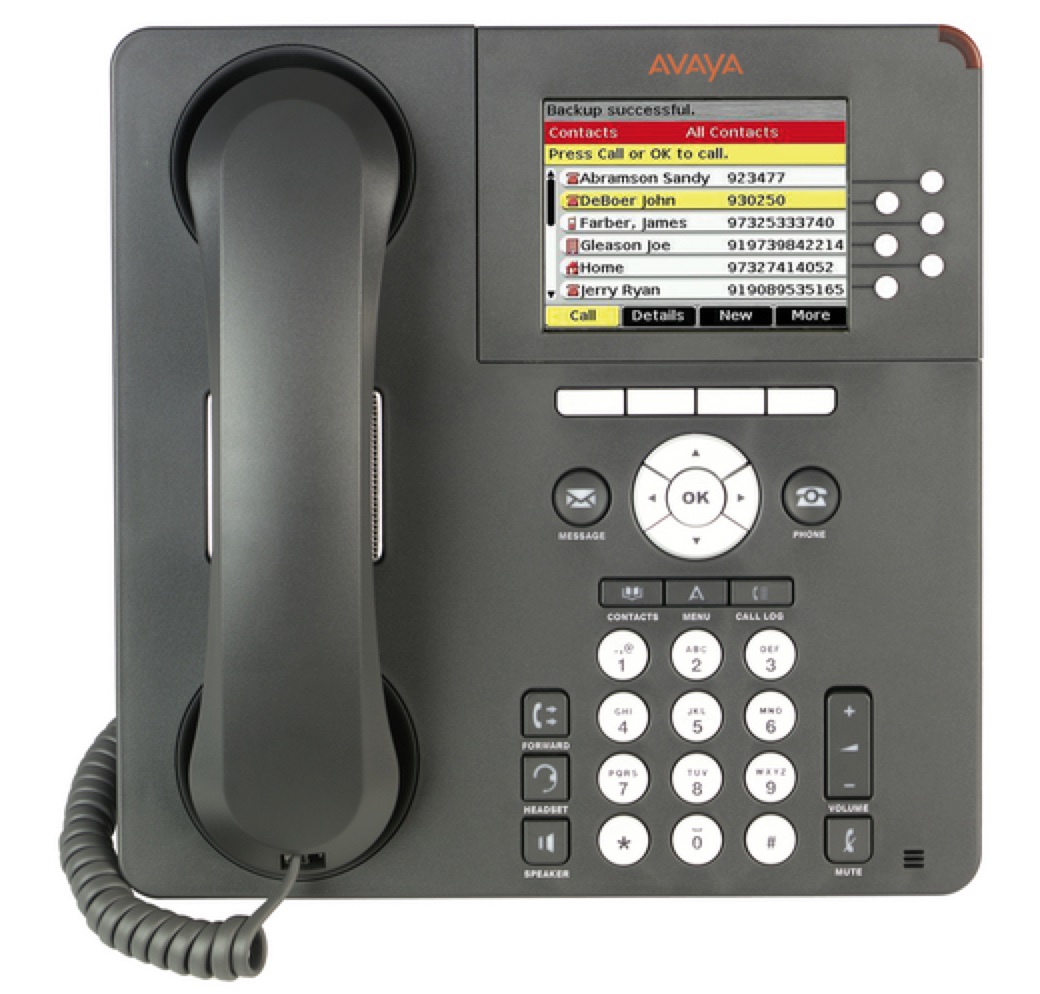

9621G/9641G
Communications ModeDigitalDigitalDigital/IPDigitalIP
Display
(lines x characters)
7 x 298 x 324 x 2417 x 40480x272 pixels/4.7 inch
Color, touch screen
Fixed Feature Buttons101015510/10
Programmable Feature Buttons2424162224/24
Navigation ClusterNot Applicable5-way5-way5-way2-way (touch)
Speakerphone2-way2-way2-way2-wayFull Duplex
Headset PortNoYesYesYesYes
Ethernet SupportNot ApplicableNot Applicable10/100 (1616)Not Applicable10/100/1000

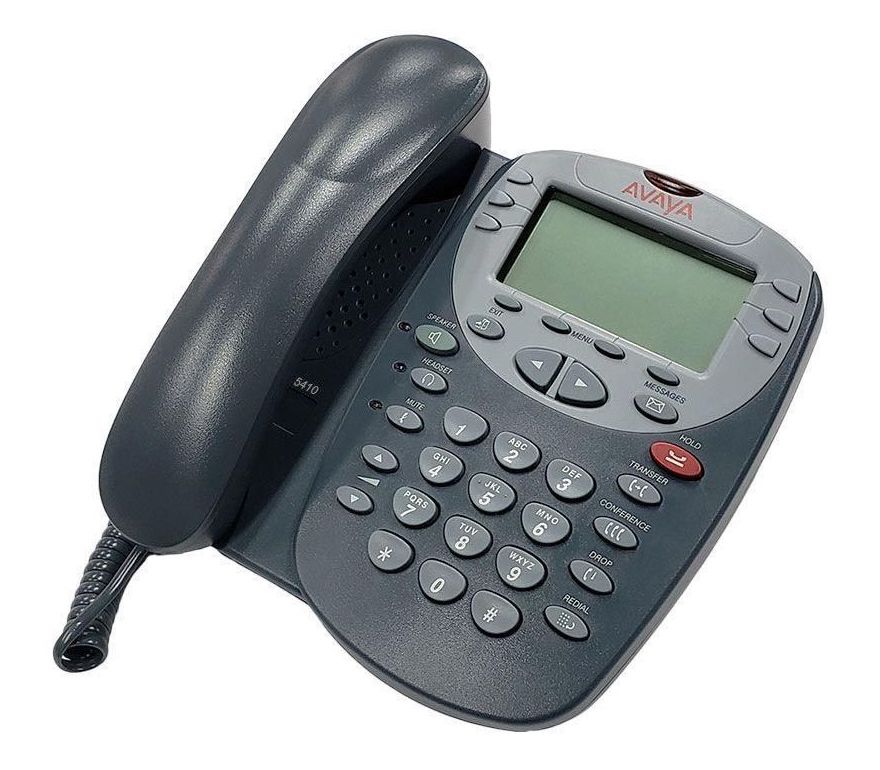

Everyday Users 5410.jpg
5410

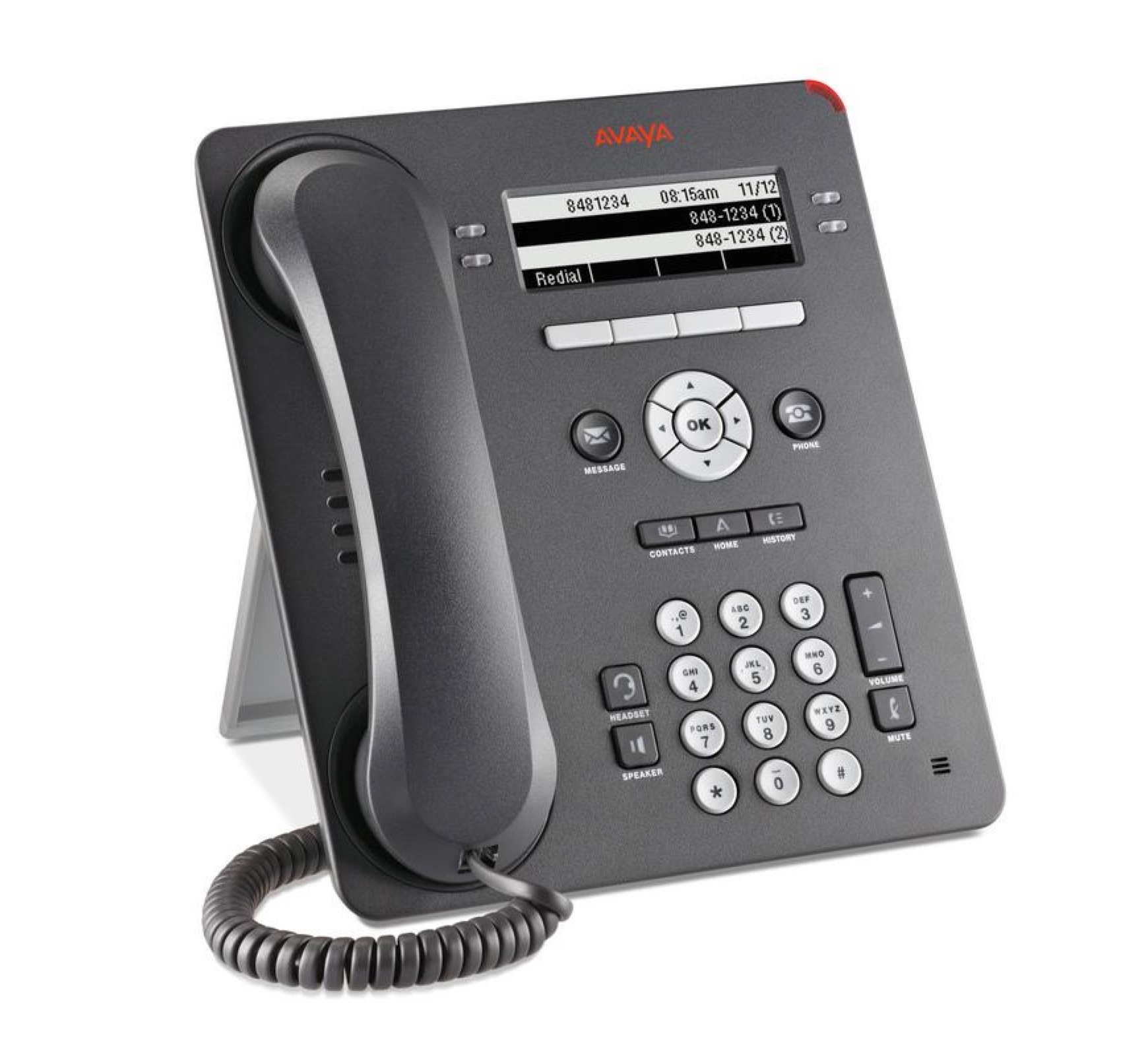

9504

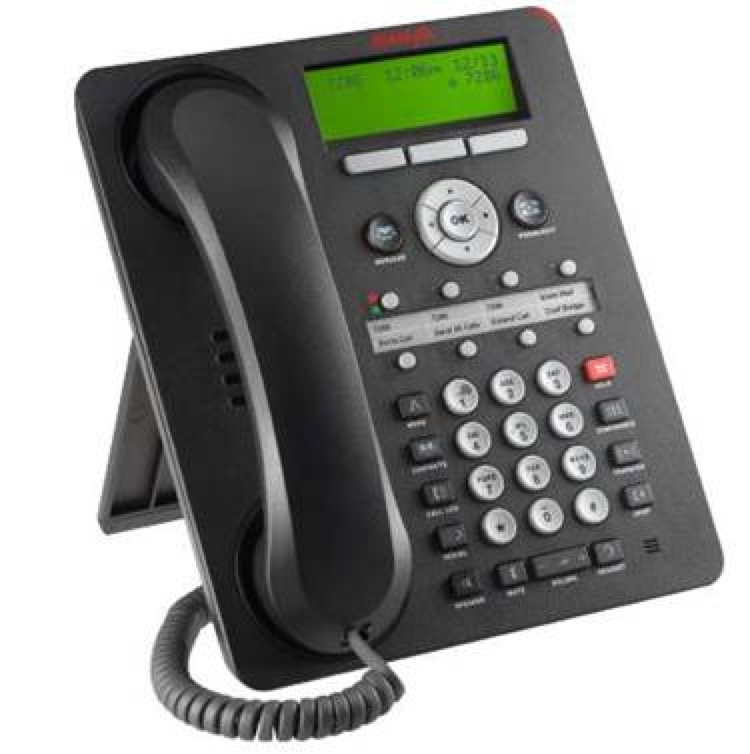

1408/1608

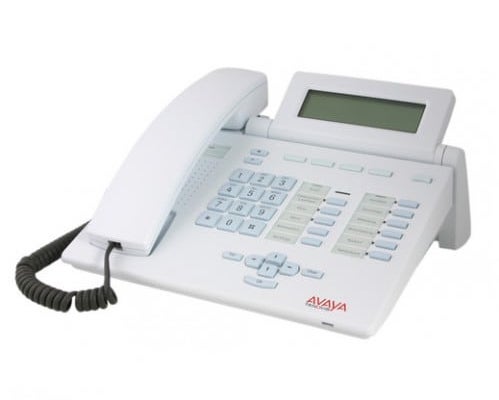

T3 Classic

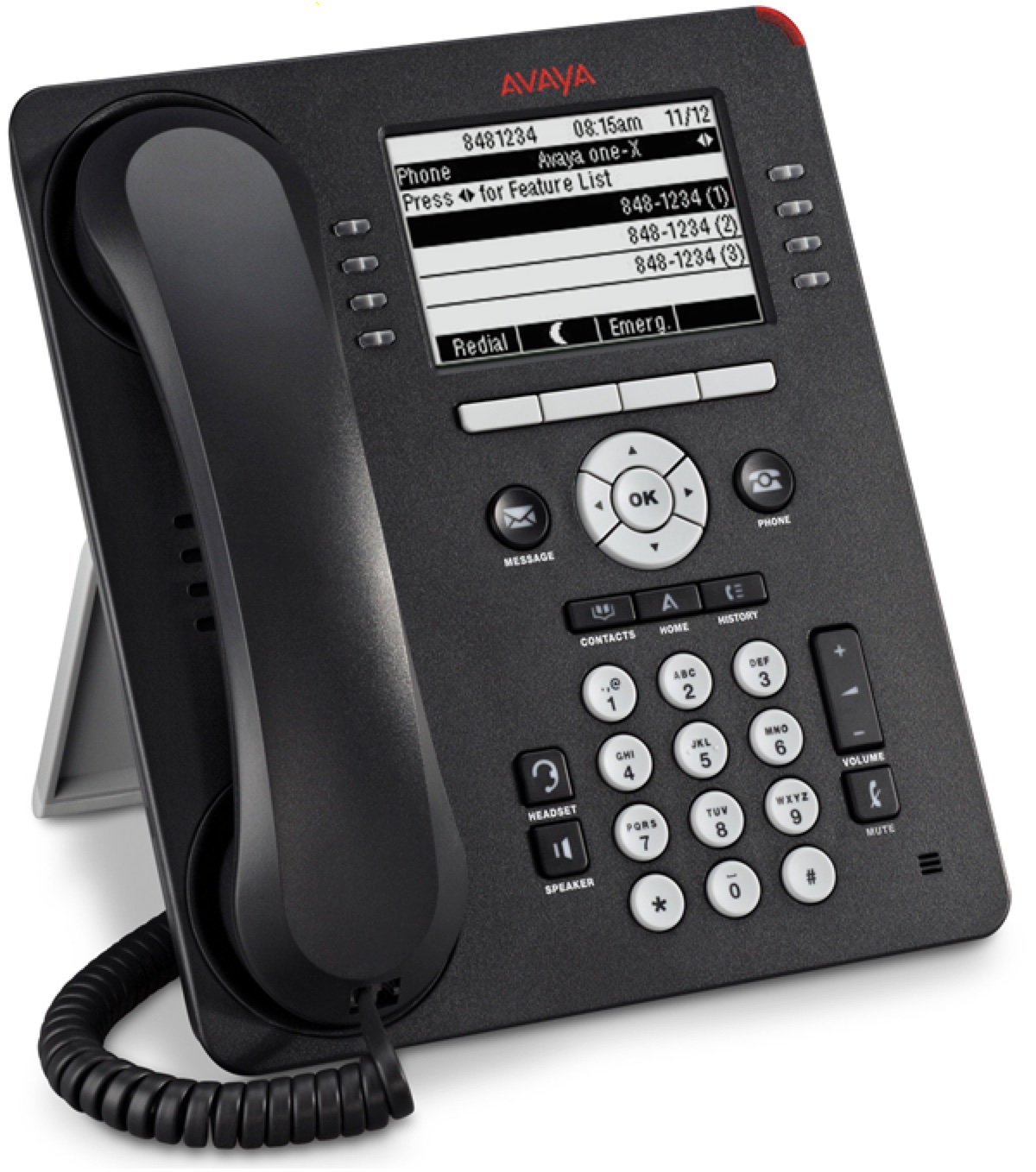

9608
Communications ModeDigitalDigitalIPDigitalIP
Display
(lines x characters)
5 x 294 x 323 x 244 x 268 x 32
Fixed Feature Buttons101011510
Context sensitive keysNot Applicable4Not ApplicableNot Applicable4
Programmable Feature Buttons121281024
Navigation ClusterNot Applicable5-way5-way5-way5-way
Speakerphone2-way2-way2-way2-wayFull Duplex
Headset PortYesYesYesYesYes
Ethernet SupportNot ApplicableNot Applicable10/100 (1608)Not Applicable10/100/1000
Admin
Assistants/
Receptionists
5420
with EU24
9508
with BM12

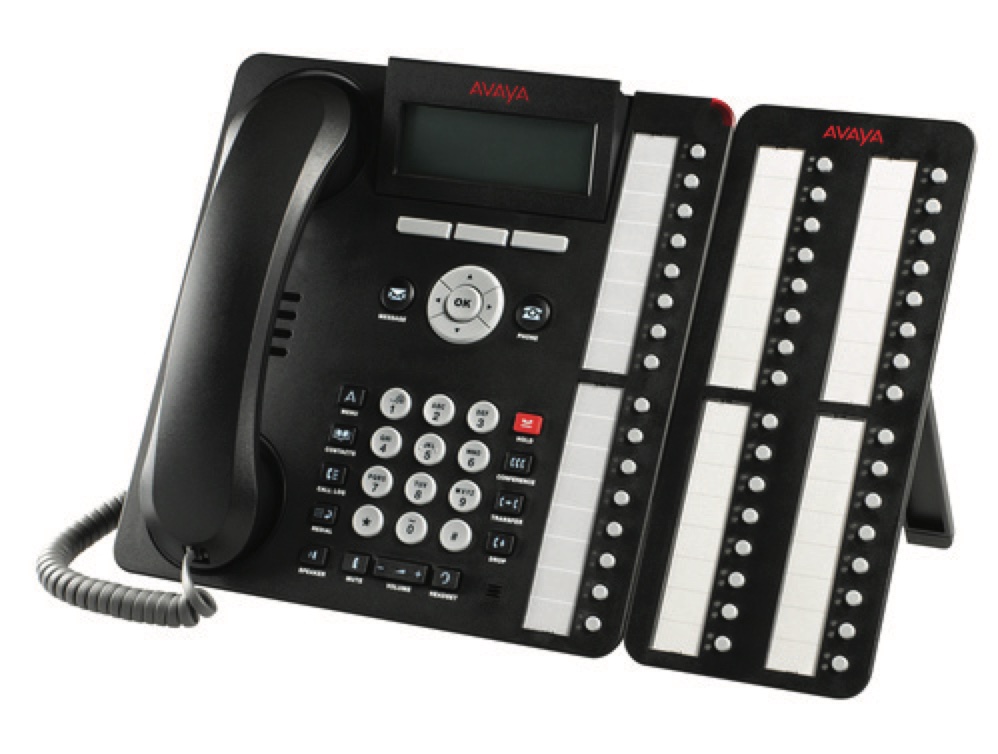

1416/1616
with BM32

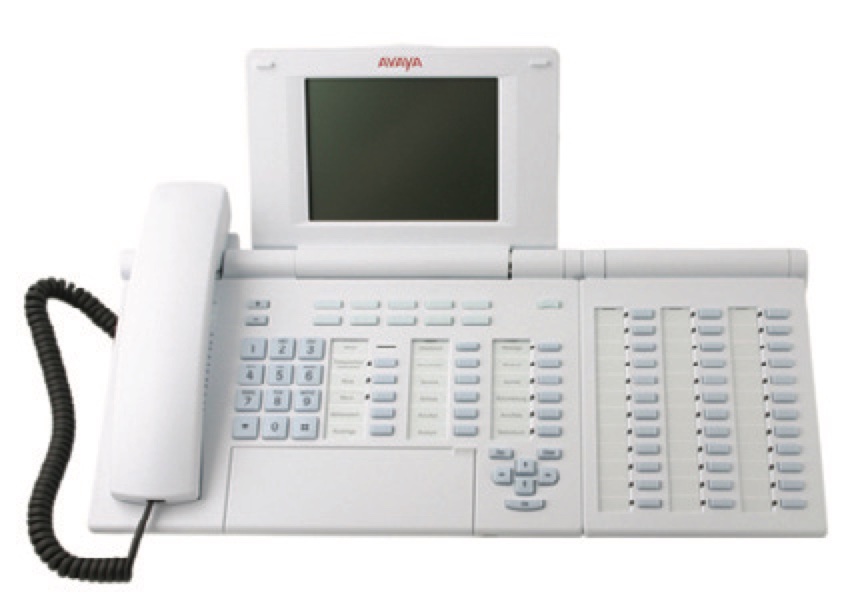

T3 Comfort
with DSS
9608
with BM12
Communications ModeDigitalDigitalIPDigitalIP
Display
(lines x characters)
7 x 298 x 324 x 2417 x 408 x 32
Fixed Feature Buttons101011510
Programmable Feature Buttons242416 + 3 x 3222 + 3 x 3624
Navigation ClusterNot Applicable5-way5-way5-way5-way
Speakerphone2-way2-way2-way2-wayFull Duplex
Headset PortYesYesYesYesYes
Ethernet SupportNot ApplicableNot Applicable10/100 (1616)Not Applicable10/100

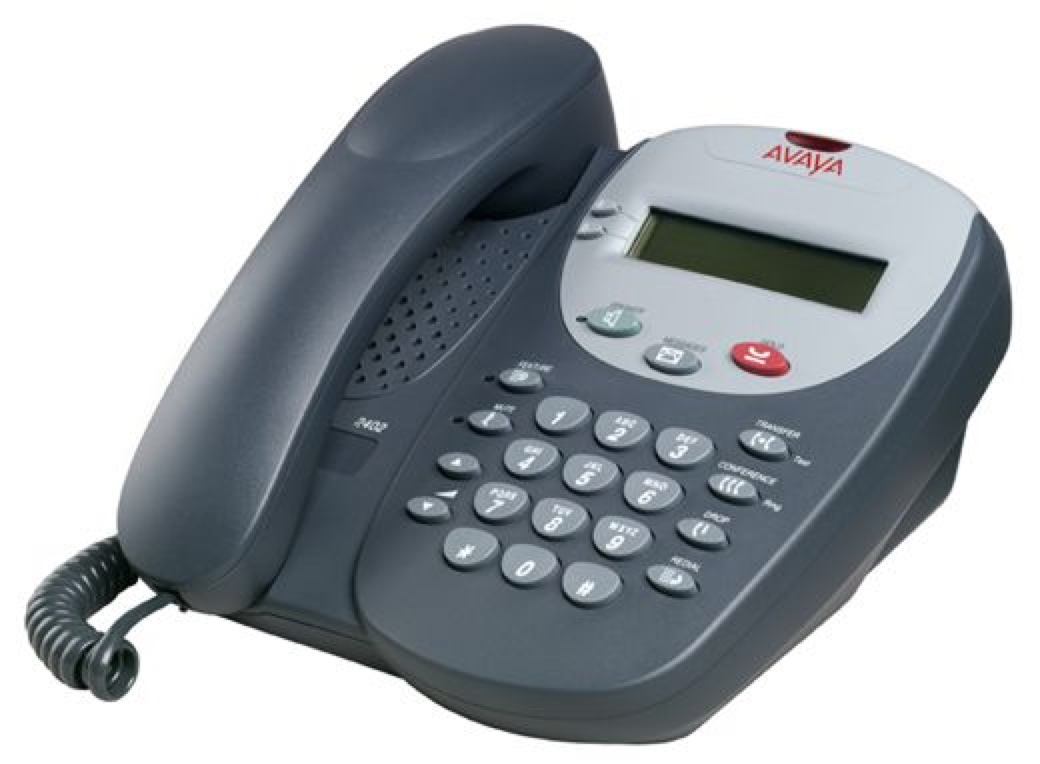

Walkup 5402.jpg
5402

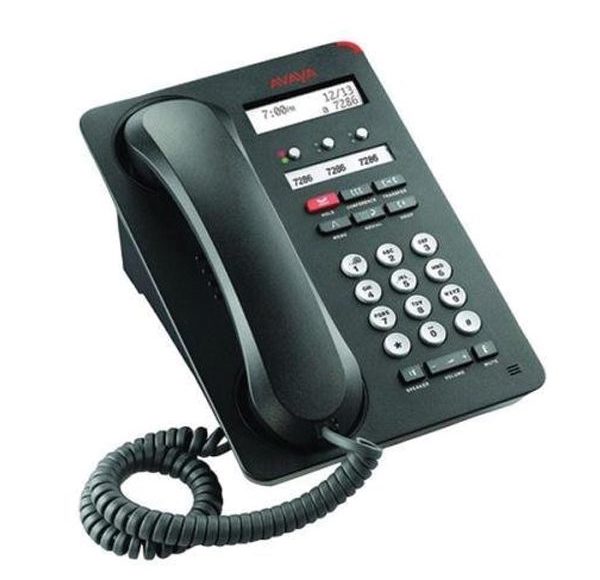

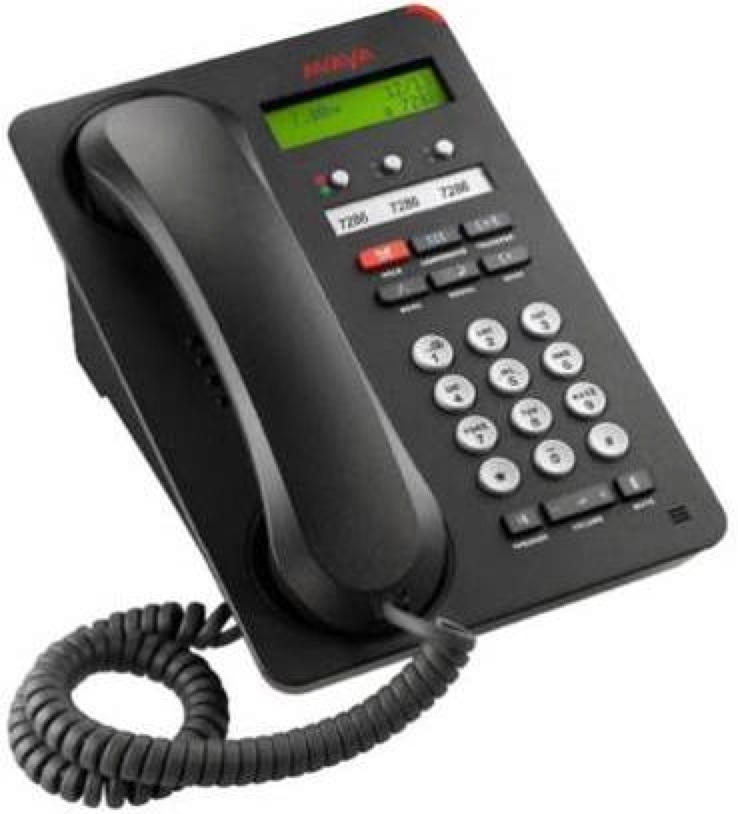

1403/1603SW

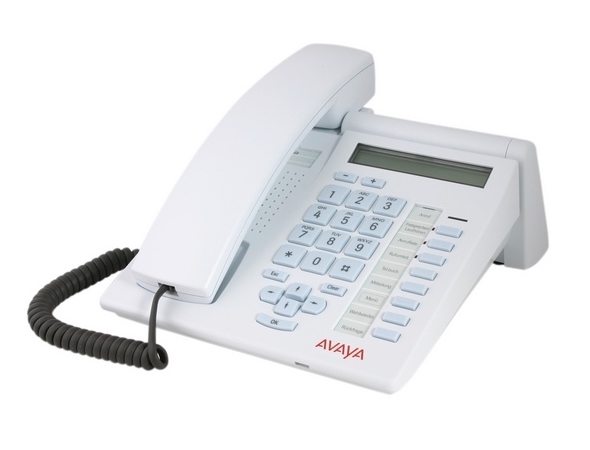

T3 Compact
5410

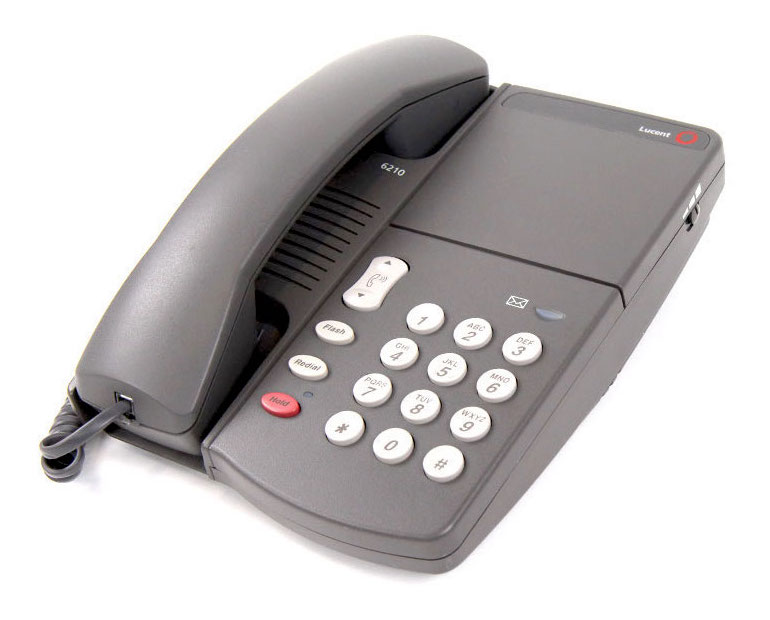

6211
Communications ModeDigitalIPDigitalDigitalAnalog
Display
(lines x characters)
2 x 242 x 16 (backlit)1 x 245 x 29None
Fixed Feature Buttons1073100
Programmable Feature Buttons1435120
SpeakerphoneListen only2-way2-way2-way0
Headset PortNoNoOptionalYesNo
Ethernet SupportNot Applicable10/100 (1603SW)Not ApplicableNot ApplicableNot Applicable

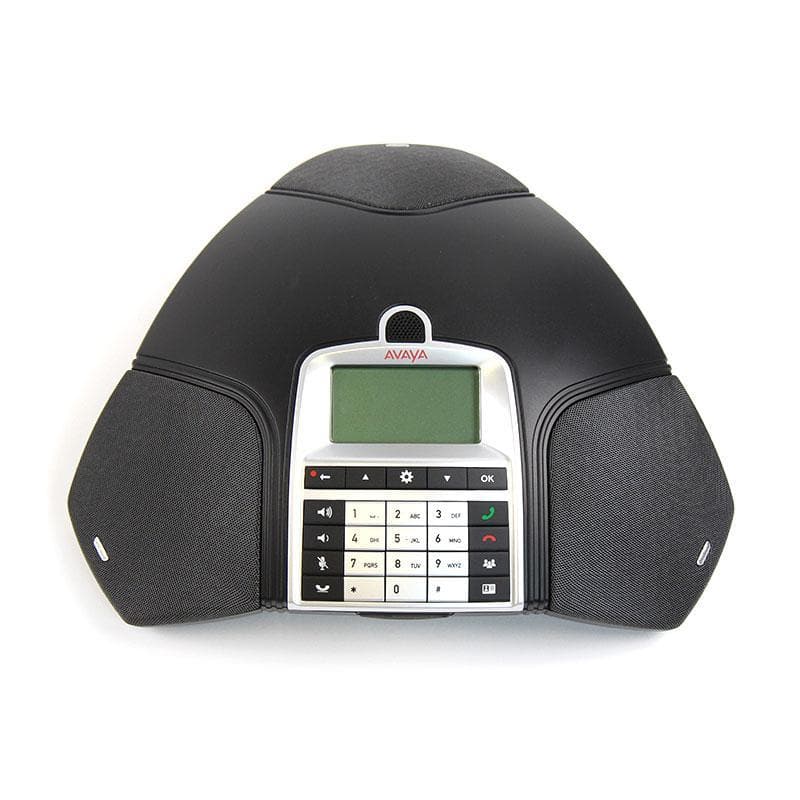

Conference B149.jpg
B149

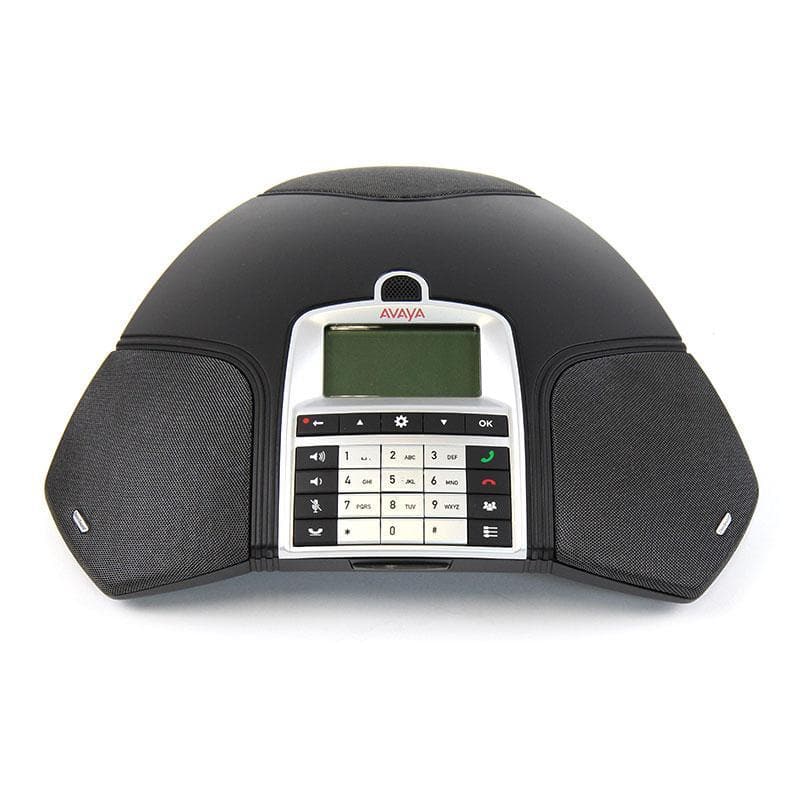

B159

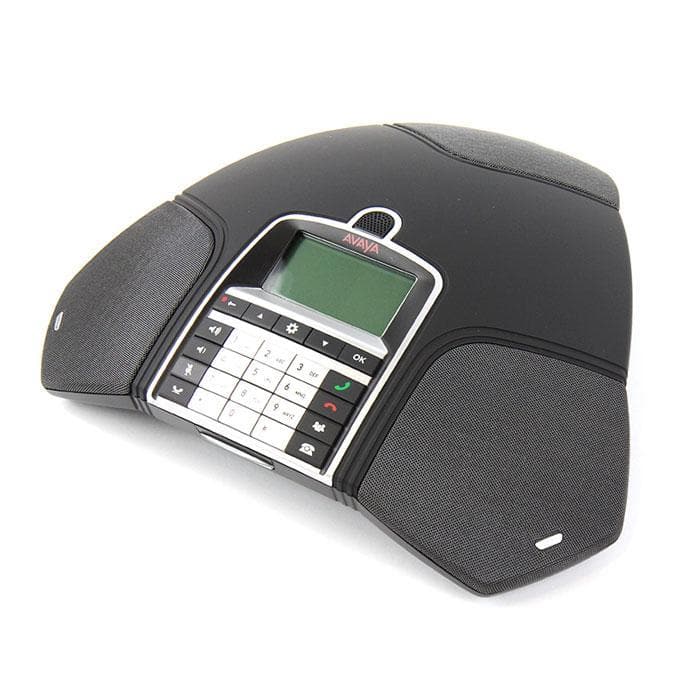

B179
Communications ModeAnalogAnalogSIP
Sound technologyOmniSound® 2.0OmniSound® 2.0OmniSound® 2.0
Display (pixels)128 x 64128 x 64128 x 64
KeypadYesYesYes
USB ConnectionNoYesNo
Conference GuideYesYesYes
Connectivity for mobile, cordless, DECTNoYesNo
Call RecordingYesYesYes

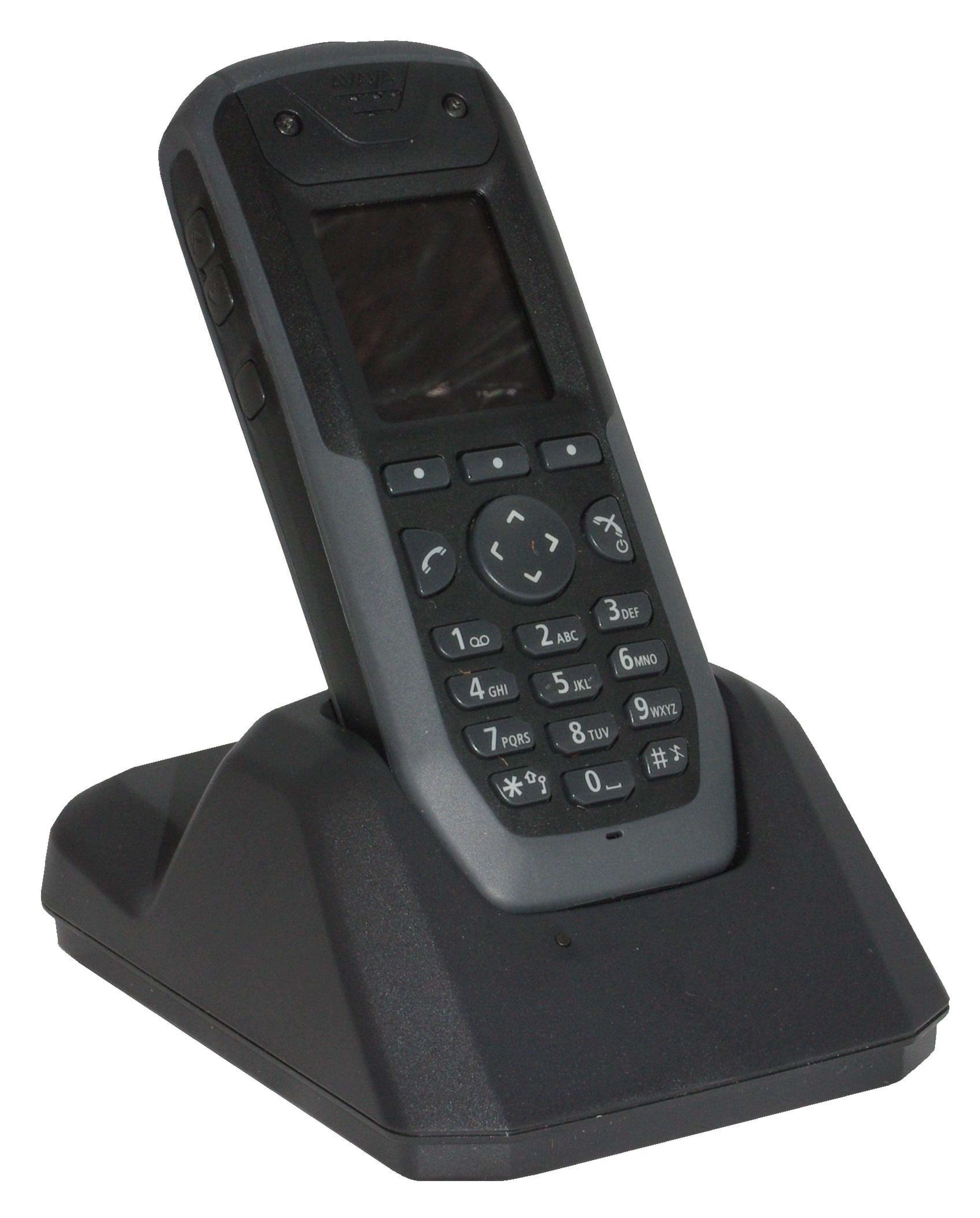

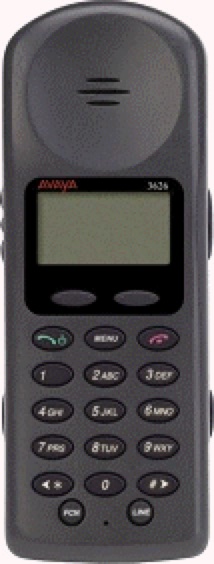

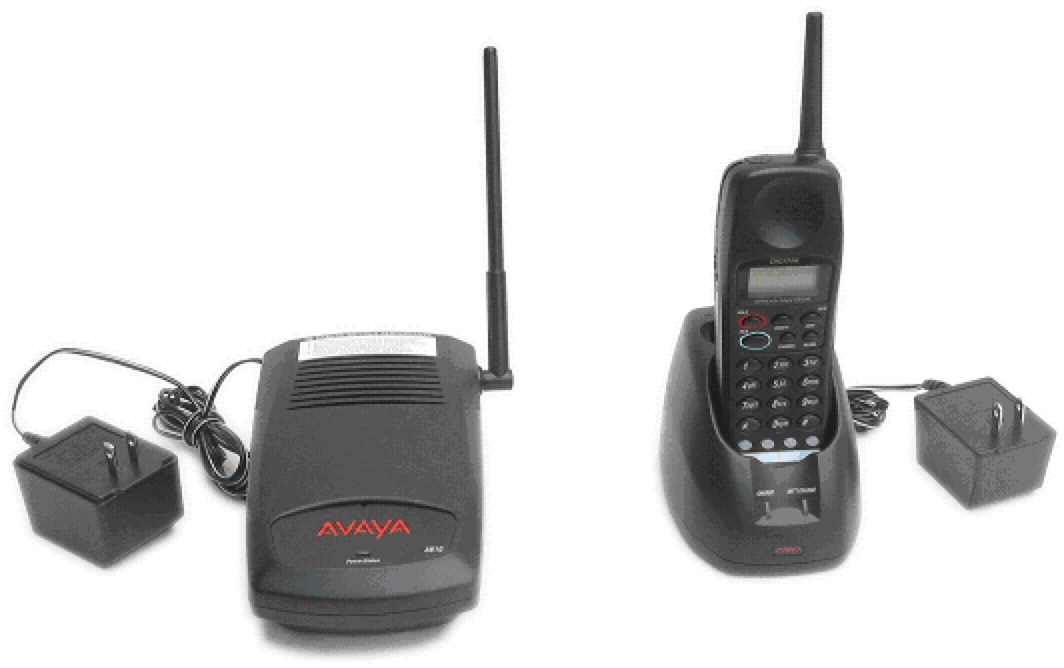

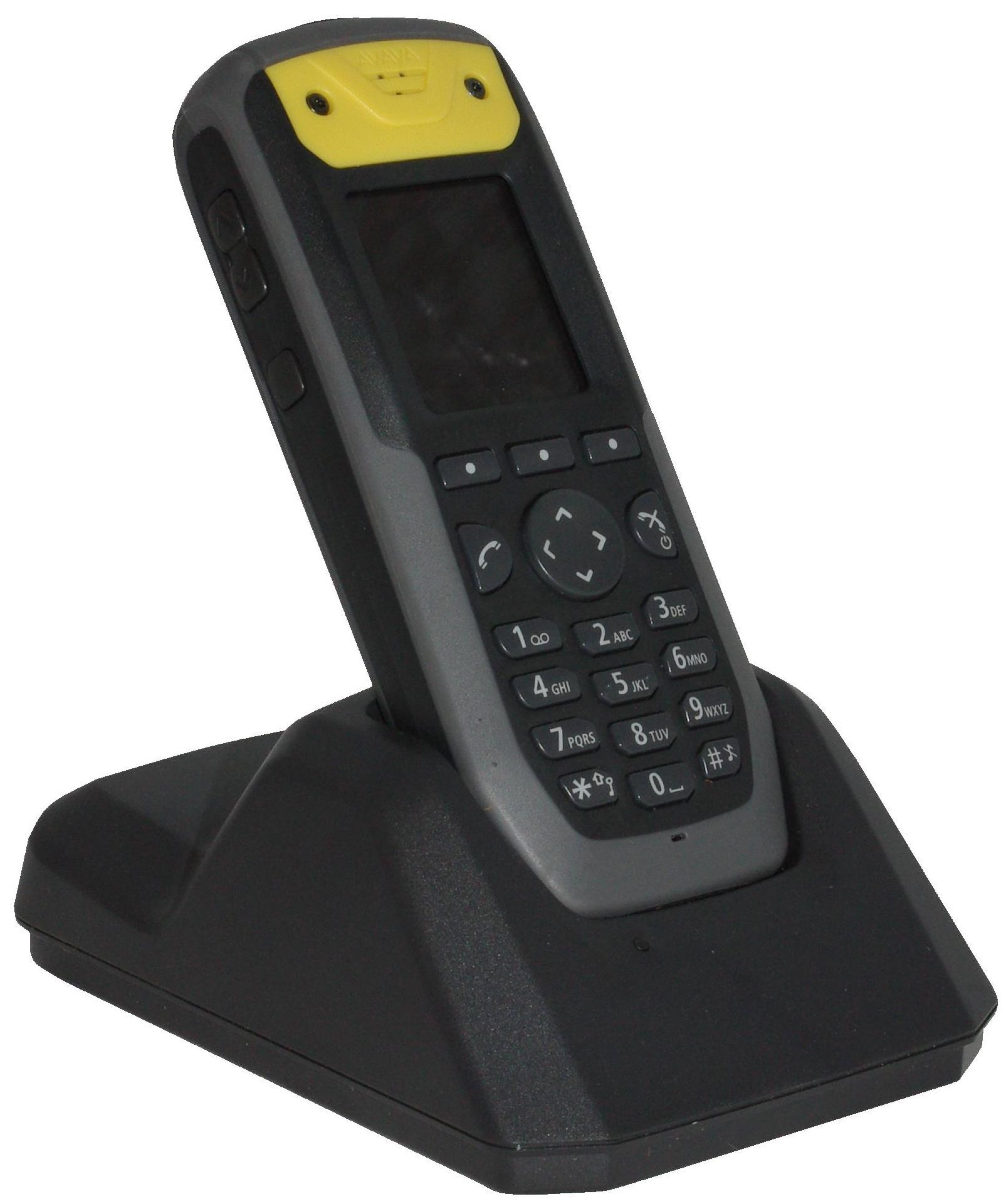

Wireless 3641.jpg

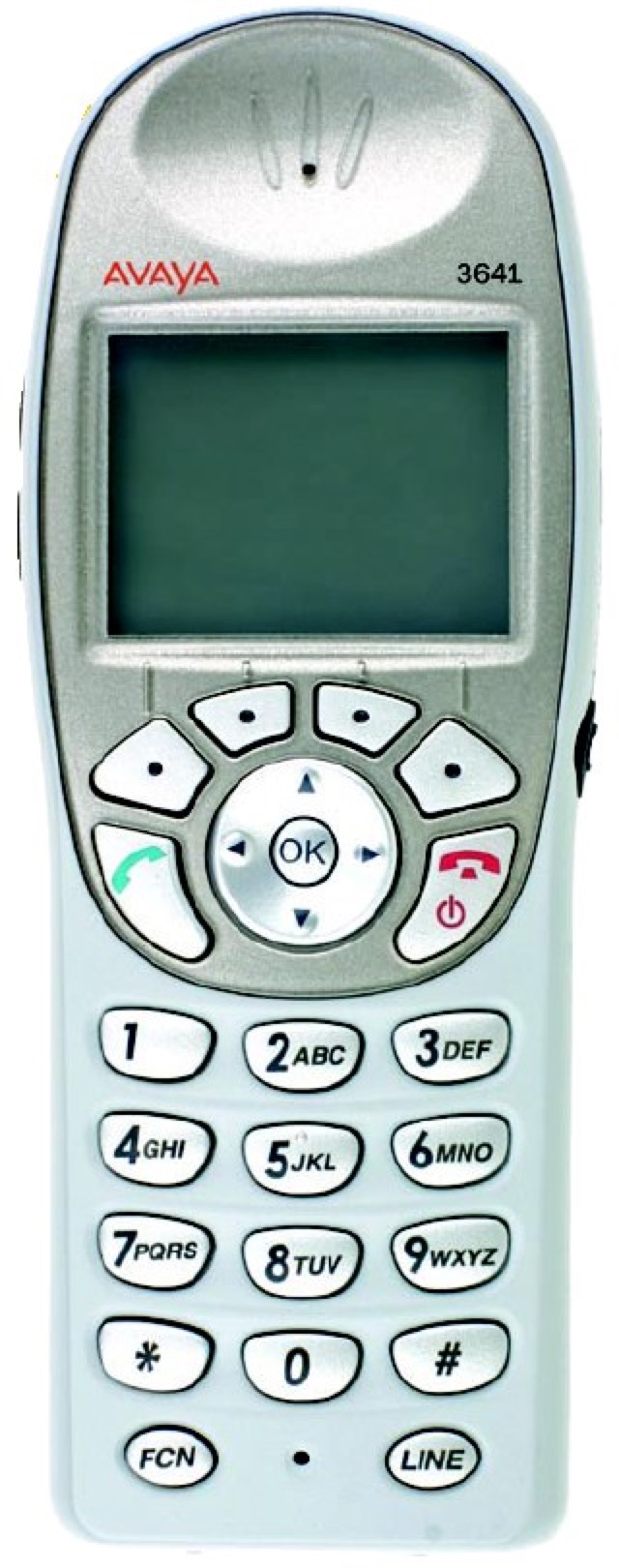

3641

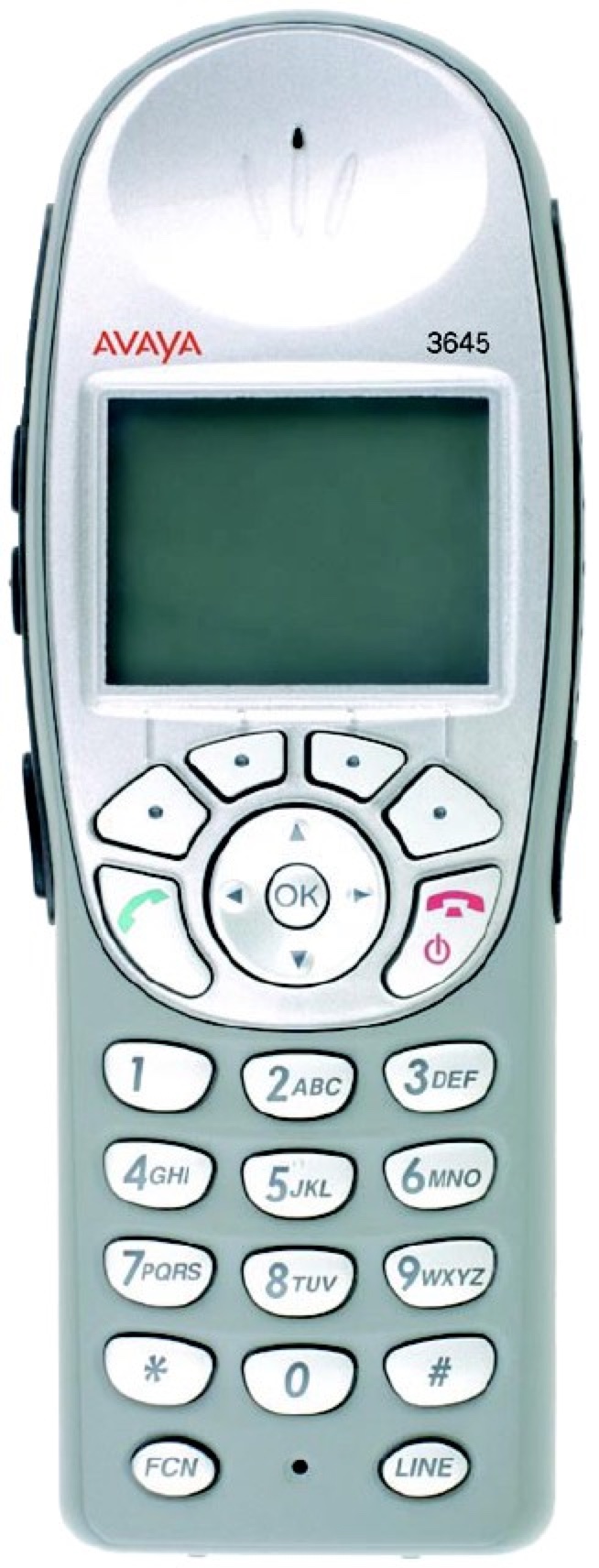

3645

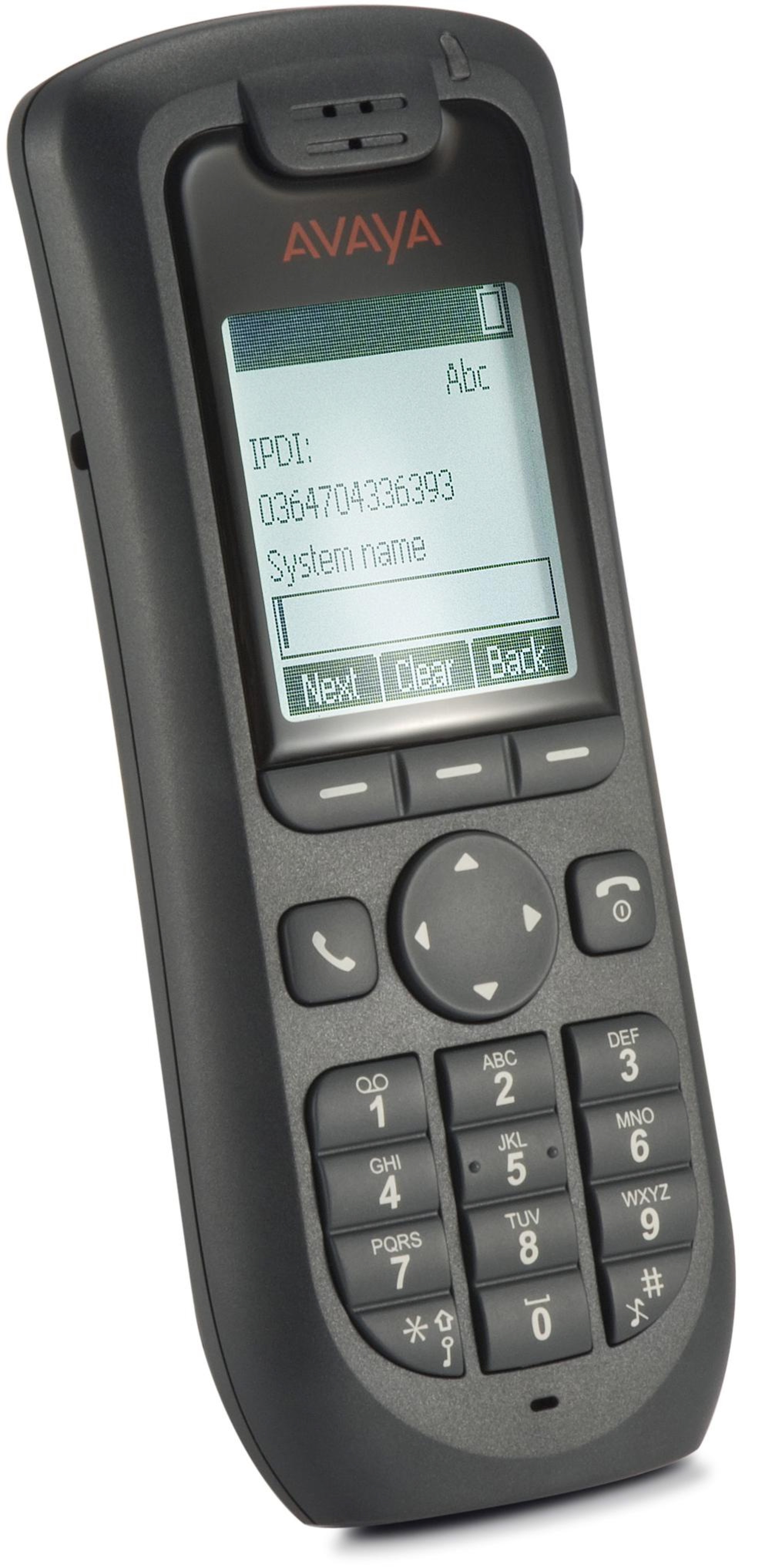

3720/40

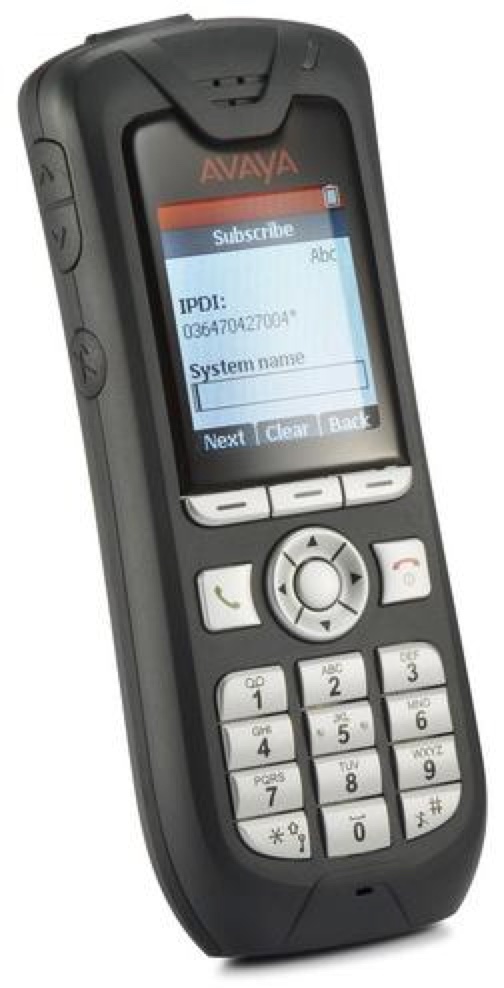

3725/49
Communications ModeIPIPDECTIP
Display (pixels)128 x 96128 x 96112 x 115128 x 160
Talktime (hours)441613–20
Standby time (hours)8080160120
Navigation keys:5 way5 way4 way5 way
Soft Keys4433
SpeakerphoneYesYes2-way2-way
Push-To-TalkNoYesNoNo
Headset portYesYesYesYes; Bluetooth compatible
Ringer/handset volume controlYesYesYesYes
Selectable ring typeYesYesYesYes
Vibrate alertYesYesYesYes
Wireless Communications ModeWi-Fi, 802.11 a/b/gWi-Fi, 802.11 a/b/gDECTDECT
