IP Office DCHP Options
An external DHCP server, requires two options:
- Server Option: 242 - File server
one or more settings as a comma separated string...
eg:HTTPSRVR=xxxx, HTTPPORT=y, HTTPDIR=z

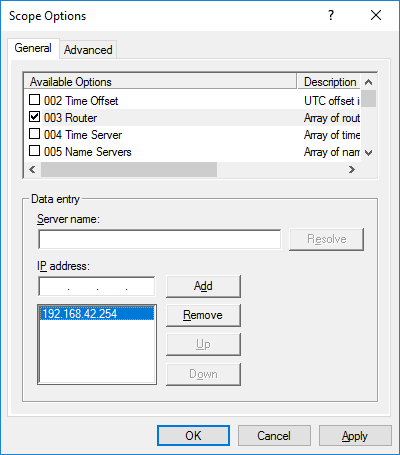

- Scope Option: 3 - Router
the Gateway IP address for this scope.
Note: Option 3 is standard, Option 242 must be added:
- Select Server → IPV4, click Action → Set Predefined Options and Values → Add

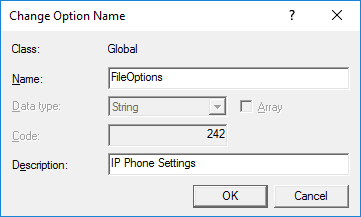

- Name: FileOptions, Data type: String, Description: IP Phone Settings
Example:

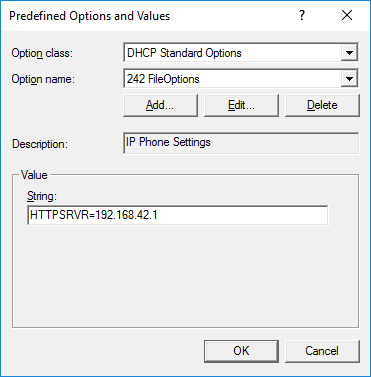

From a Windows 2016 DHCP Server:
Basic Strings:
String | Description |
---|---|
HTTPSRVR= | HTTP file server DNS name or IP address. |
HTTPPORT= | <server port #> (only required if not default: 80). |
HTTPDIR= | <directory> with IP phone files (not required if root) |
TLSSRVR= | HTTPS file server DNS name or IP address. |
TLSPORT= | <server port #> (only required if not default: 443). |
TLSDIR= | <directory> with IP phone files (not required if root) |
