IP 500 Card Options

The IP500 V2 System Unit has 4 slots for the insertion of cards. There are two types of card; Base cards, which include a front panel and ports for cable connections, and daughter cards - these are added to a base card to provide (typically) trunk connections.

The modules can be identified by the tiny stickers in the front panel: Left = Base Card, Right = Daughter Card

eg: Digital Station 1-6, Analog phone 7-8, Analog trunks 9-12

IP 500 Base Cards:

Each card accepts one trunk daughter card of any type.

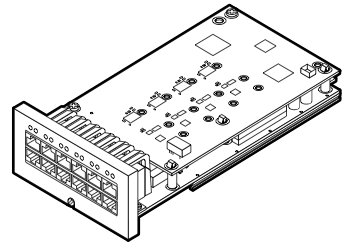

• IPO 500 EXTN CARD PHONE 8 (700417231) (Maximum 4)
• IPO 500 EXTN CARD PHONE 2 (700431778) (Maximum 4)
• IPO 500 EXTN CARD DGTL STA 8 (700417330) (Maximum 3)
• IPO IP500 EXTN CARD DGTL STA 8 TAA (700501512) (Max 3)

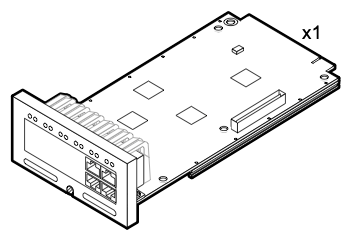

• IPO 500 EXP CARD 4 PORT (700472889) (Maximum 1)
• IPO IP500 EXTN CARD TCM-8 DGTL STA 8 (700500758) (Max 4)
• IPO IP500 V2 ETR CARD (700476039) (Maximum 3. Basic Edition Only)

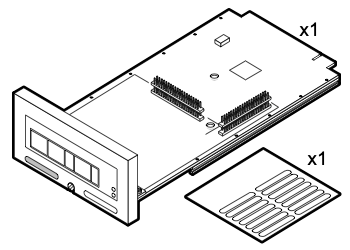

IP500 VCM Base Cards:

Each voice compression module accepts one daughter card (Maximum 2)

• IPO 500 MC VCM 32 (700417289)
• IPO IP500 VCM 32 TAA (700501518)
• IPO 500 MC VCM 64 (700417397)
• IPO IP500 MC VCM 32 V2 (700504031)
• IPO IP500 VCM 32 TAA V2 (700504033)
• IPO IP500 MC VCM 64 V2 (700505032)

IP 500 Trunk Cards:

Daughter card to fit any base card above (Maximum 4)

• IPO 500 TRNK ANLG 4 UNI (700417405)
• IPO IP500 TRUNK ANLG V2 (700503164)
• IPO 500 TRNK BRI 4 UNI (700417413)
• IPO IP500 TRNK BRI 4 UNI TAA (700501515)
• IPO 500 TRNK BRI 8 UNI (700417421)
• IPO 500 TRNK PRI 1 UNI (700417439)
• IPO IP500 TRNK PRI UNVRSL SNGL TAA (700501514)
• IPO 500 TRNK PRI 2 UNI (700417462)
• IPO IP500 TRNK PRI UNVRSL DUAL TAA (700501517)

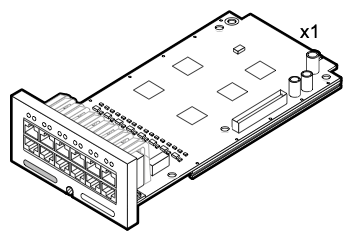

Combination Cards:

Includes a IP500 trunk daughter card (Maximum 2)

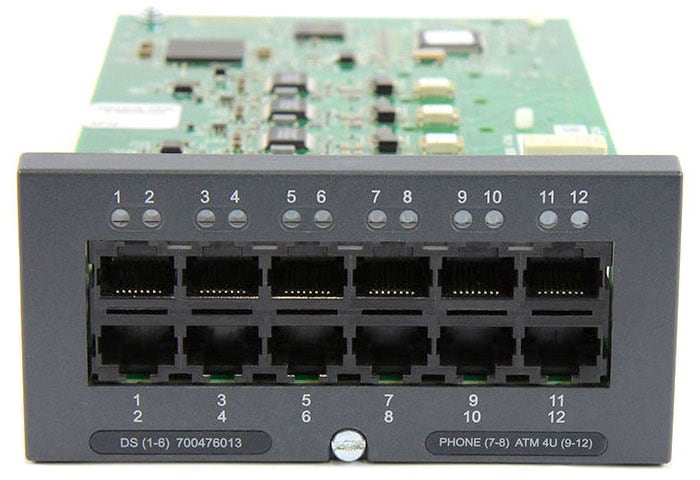

• IPO IP500 V2 COMBINATION CARD ATM (700476013)
• IPO IP500 V2 COMBINATION CARD ATM V2 (700504556)
• IPO IP500 V2 COMB CARD ATM TAA (700501513)
• IPO IP500 V2 COMBINATION CARD BRI (700476021)

Legacy Card Carrier Base Card:

IPO 500 LEGACY CARD CARRIER (700417215) (Maximum 2)

IP400 Cards Supported:

• IPO BRI 8U (700262017)
• IPO PRI 24T1 (700185280)
• IPO PRI 48T1 (700185218)
• IPO PRI 30E(1.4) (700272461)
• IPO PRI 60E(1.4) (700272479)
• IPO PRI 60E1 (700185184)
• IPO PRI 30E1R2 (700241631)
• IPO PRI 60E1R2 (700241649)
• IPO ATM 4U (US only) (700359938)
• IPO VCM4 (700358854)
• IPO VCM8 (700359862)
• IPO VCM16 (700359870)
• IPO VCM24 (700359888)
• IPO VCM30 (700293939)

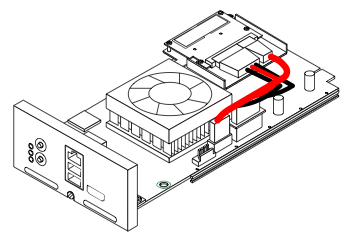

Application Card:

Unified Communications Module (Maximum 1)

• IPO UC MODULE (700501442)
  (Voicemail Pro, or One-X Portal)
