Accessing the BCM50 system

Access a BCM50 system from the OAM port (left most RJ-45).
Or, alternatively via an available LAN (or expansion) port.


BCM50 Main Unit

PortDefault IP address
OAM10.10.11.1
LAN192.168.1.2
Default login
User ID:nnadmin
Password:PlsChgMe!

Note: DHCP is enabled on the OAM port, and assigns 10.10.11.2. Changing the IP address requires a reboot.

To download and install Element Manager:

Element Manager may be downloaded (and then installed) directly from the BCM50.

UPDATE: Element Manager on the BCM50 may not be Windows 7 compatible, Version 62.0.5 is.
1. Connect one end of the Ethernet cable to the OAM port on the Main unit, and connect the other end to the Ethernet port on your computer. The DHCP-enabled computer is assigned IP address 10.10.11.2. (255.255.255.252).
2. Open a web browser and enter the IP address 10.10.11.1 (BCM50 OAM port IP address).
The Enter Network Password dialog box opens.
3. Enter the following username and password:
Username: nnadmin
Password: PlsChgMe!

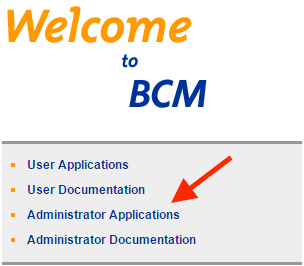

Element Manager: Administrator Applications
4. Click Ok.
The Welcome to BCM50 web page opens.
5. From the Welcome to BCM50 web page, click Administrator Applications.
The Administrator Applications page opens.
6. From the Administrator Applications page, click BCM50 Element Manager.
The Element Manager panel opens.
7. Click Download Element Manager on the right side of the screen.
8. When BCM50 Element Manager has finished downloading, double-click the application and follow the instructions to install.

To connect to the BCM50 system:

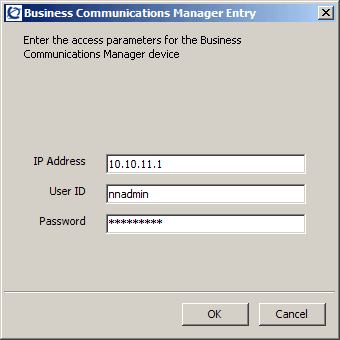

1. Open Element Manager. Element Manager: Add New Element
2. From the Network menu, select New Network Element, then select  Business Communications Manager.
3. Enter the IP address, 10.10.11.1 in the dialog box.
4. Click Ok.
5. Select the address 10.10.11.1 from the Network Elements folder.
6. Enter the following username and password:
Username: nnadmin
Password: PlsChgMe!
7. Click Connect.
Click OK to download the software cartridge (if prompted).

You are now connected to the BCM50 system.

To enter the keycodes

1. From the Configuration tab, click the System folder to expand it
2. Select Keycodes from the System folder. The Keycodes screen opens.
You can enter the keycodes for your system on this screen

Expansion

The Expansion Unit connects to the Main Unit via a standard RJ-45 CAT5 cable:


BCM50 Expansion Unit
