Meridian E&M TIE programming

Remember:

E&M analog routes (LD 16) are generally type TIE

E&M analog trunks (LD 14) are generally set as:

  • immediate start - STRI: imm | STRO: imm
  • 4 wire - SIGL: em4
  • type 1 - EMTY: ty1
  • No supervision (E&M does that!)

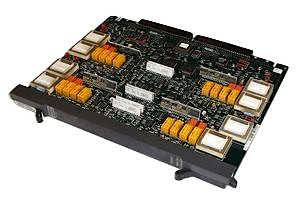

NT8D15 E&M Trunk Card (4 port)

Problems with tie's are usually due to Mux programming differences, some sites may use wink start for example. Mux and PBX signaling must match! Change both STRI and STRO (start arrangement incoming/outgoing) as appropriate, eg to WNK for wink start, IMM for immediate start.

Print "Route data" in LD 21, "Trunk data" in LD 20.

Example route:

>ld 21
PT1000

REQ: prt
TYPE: rdb
CUST 0
ROUT 3

TYPE RDB
CUST 00
DMOD
ROUT 3
DES  IVG
TKTP TIE             <- type must match trunk
NPID_TBL_NUM   0
ESN  NO
RPA  NO
CNVT NO
SAT  NO
RCLS EXT
DTRK NO
PTYP ATT
AUTO YES            <- auto-terminate, DID
ACMP NO
DNIS NO
IANI NO
ICOG IAO            <- allow incoming and outgoing callsk
SRCH RRB            <- round robin
TRMB YES
STEP
ACOD 8              <- direct access code for this route
TARG 02
BILN NO
OABS
INST
ANTK
SIGO STD            <- standard signalling arrangement
STYP SDAT
MFC  NO
TIMR ICF 512
     OGF 512
     EOD 13952
     DSI 34944
     NRD 10112
     DDL 70
     ODT 4096
     RGV 640
     GTO 896
     GTI 896
     SFB 3
    IENB 5
     TFD 0
     VSS 0
     VGD 6
     EESD 1024
SST  5 0
DTD  NO
SCDT NO
2 DT NO
NEDC ORG
FEDC ORG
CPDC NO
DLTN NO             <- provide dial tone to incoming callers
HOLD 02 02 40
SEIZ 02 02
SVFL 02 02
DRNG NO
CDR  YES            <- call detail recording set
INC  NO
LAST NO
QREC NO
OAL  YES
AIA  NO
OAN  YES
OPD  YES
NDP  EXC 0
CDRX NO
NATL YES
SSL
CFWR NO
IDOP NO
VRAT NO
MUS  NO
PANS YES
MANO NO
OHQ  NO
OHQT 00
CBQ  NO
AUTH NO
TTBL 0
ATAN NO
OHTD NO
PLEV 2
OPR  YES
ALRM NO
ART  0
PECL NO
DCTI 0
TIDY 8 3
ATRR NO
TRRL NO
SGRP 0
AACR NO

REQ:

Trunk Example:

REQ: prt
TYPE: tie
TN   9 0
DATE
PAGE

DES  IVG
TN   009 0 00 00     <- card slot and circuit
TYPE TIE             <- must match route
CUST 0
XTRK XEM
EMTY TY1
CPAD COUT
TRK  ANLG
NCOS 0
RTMB 3 1             <- route and member number
ATDN 5051
TGAR 2
SIGL EM4             <- 4 wire
STRI/STRO IMM IMM    <- immediate start
SUPN NO
AST  NO
IAPG 0
CLS  UNR DTN CND ECD WTA LPR APN THFD XREP BARD CLID SPCD
     P10 NTC MID     <- add UNR and DTN
TKID
DATE 20 FEB 2003


NACT
