A CPPM card (NTDW61, NTDW99) can function as either a Call Server or Signalling Server.

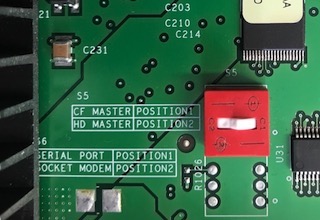

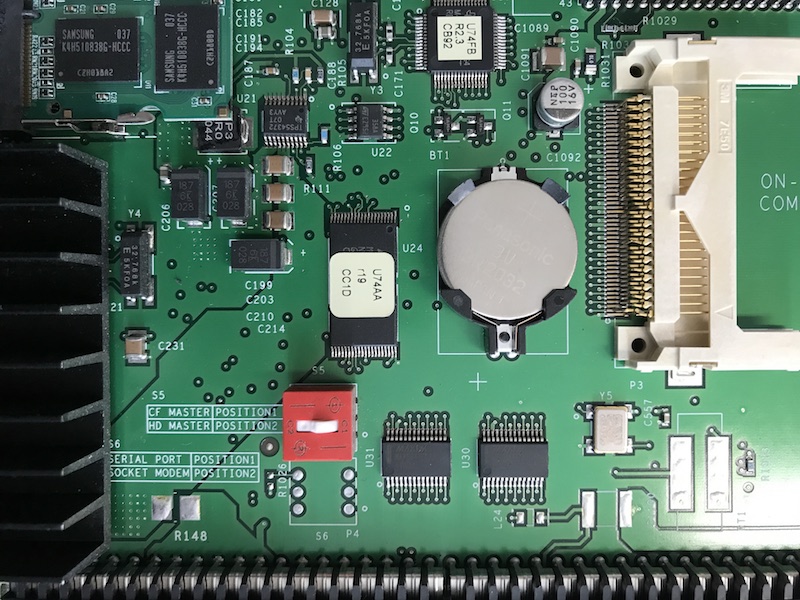

When deploying as a Signalling Server, equip the card with 2GB RAM, and a hard drive kit. Confirm the CSEL jumper (S5) is in the HD MASTER position: C2 (left down) to enable it.

Hard drive kit NTDW6102E5 comprises a 40GB IDE hard drive with four screws.
Ensure the drive jumper is in the cable select (CS) position before mounting.

A 'Leader' Signaling-Server is always required, though two servers may be installed in a load-sharing redundant configuration (one leader and a follower) for higher reliability.

The following applies to the CPPM (with hard drive) signaling server.
A Signaling Server does not require a security device or keycode.

Load 'Leader' Sig-Server

Put the installation software in the front panel slot, and boot from it.
Remember to Press F to force board to boot from faceplate drive.

CS 1000 Signaling Server Software Install Tool (sse-5.50.12)
============================================================

         #####
       #########   ########
      ########`` `#############
     ########      ``    `#############
    #######`         ######```####
    #######      ######``     `###
   #######    #####``          ####               NORTEL NETWORKS
   ####### #####`              ####
   `#########`                ####`    Communication Server 1000 Software
    #######`                 #####
    `#######               #####`               Copyright 2002 - 2008
    ##########            `###`
   ##``##########            #
  ##   `########################
  `#     `########################
    ###########################``
     `````````  ````####````

Please press <CR> when ready ...

When the main menu appears, select the tools menu and re-partition the CF.

From the MAIN MENU, select:

The various filesystems are created, and the card will reboot.
- Remember to Press F to force board to boot from faceplate drive.

From the MAIN MENU, select:

A summary screen is displayed, for example:

You have entered the following parameters for this Leader SS :
                (Press <a>-<l> to correct, <y> to proceed, <n> to reconfigure all.)

        Please enter:
<CR> -> <y> - Yes, these parameters are correct.
        <n> - Re-enter all of the parameters

        <a> - Node ID           : 1015
        <b> - Hostname          : PBXBOOK_LDR
        <c> - ELAN IP           : 10.10.10.15          eg, ELAN network = 10.10.10.0/24
        <d> - ELAN subnet mask  : 255.255.255.0
        <e> - ELAN gateway IP   : 10.10.10.254
        <f> - TLAN IP           : 10.10.11.15          eg, TLAN network = 10.10.11.0/24
        <g> - TLAN subnet mask  : 255.255.255.0
        <h> - TLAN gateway IP   : 10.10.11.254
        <i> - Node IP           : 10.10.11.17
        <j> - Call Server IP    : 10.10.10.5
              NRS configuration : Alternate GK + SIP
        <k> - Primary NRS IP    : 10.10.11.15
        <l> - Alternate NRS IP  : 10.10.11.16

        Enter Choice>

Review the entries, if all are correct, press <y> to proceed, otherwise enter a letter to correct.
- Make a note of the hardware ELAN MAC address which is displayed, as this may be required later.

When the installation is complete, an INSTALLATION STATUS SUMMARY is displayed. Confirm everything is OK!

Press <CR> to return to the Main Menu, and enter <q> to quit.
- The card will reboot. Do not press F, as the installation is complete!

Load 'Follower' Sig-Server

Put the instllation software in the front panel slot, and boot from it.
- Remember to Press F to force board to boot from faceplate drive.

When the main menu appears, select the tools menu and re-partition the CF.

From the MAIN MENU, select:

The various filesystems are created, and the card will reboot.
- Remember to Press F to force board to boot from faceplate drive.

From the MAIN MENU, select:

CS 1000 Signaling Server Software Install Tool (sse-5.50.12)
============================================================

This Follower Signaling Server will obtain its data network and IP
telephony configuration from the Leader Signaling Server at boot.

To identify this Signaling Server, please enter a Hostname.

Hostname : PBXBOOK_LDR

The card will later use BOOTP to retrieve it's configuration from Element Manager.
- Make a note of the hardware ELAN MAC address which is displayed, as this will be required later.

Introduce the Follower to the Leader

Open Internet Explorer and bookmark Element Manager. Then login...

  1. Click IP Network ► Nodes: Servers, Media Cards
  2. At Node Configuration, click Import Node Files
  3. Enter the Leader Signaling Server's ELAN IP address
  4. Click Import - the config files are retrieved, and the page refreshed
  5. Click Edit next to the Node where the server is to be added
  6. Click Add next to Signaling Servers
  7. Click Signal Server 0.0.0.0 Properties
  8. Enter the Follower server details:
    • ELAN IP address, and MAC address Transfer OK
    • TLAN IP and Gateway IP address's
    • Hostname, eg: PBXBOOK_FLWR
  9. Click Save and Transfer, and OK.
    The transfer process begins. It will fail - but don't worry!
  10. Press the Reset button to reboot the Media Gateway
  11. Save and Transfer again. This time it shouldn't fail!
