4550T-PWR Toggle POE
You may want to disable POE, eg, for trunk ports, or if using external Avaya power bricks for IP phones.
Use the following commands in Interface Configuration mode:
- Disable:
poe poe-shutdown [port <portlist>] - Enable :
no poe poe-shutdown [port <portlist>]
From the command line:
config terminal
interface fastethernet XX
poe poe-shutdown | no poe-shutdown
interface fastethernet XX
poe poe-shutdown | no poe-shutdown
From the web interface:

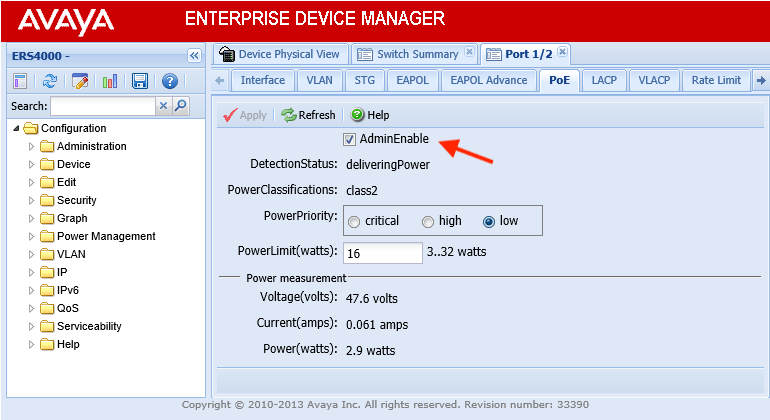

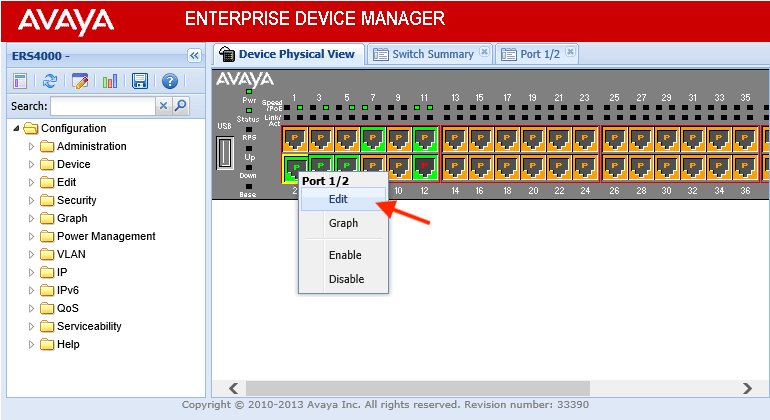

- Device view ➤ Select port ➤ Right-click: Edit ➤ Click the PoE tab ➤ Toggle AdminEnable as required:
When multiple ports are selected (ctrl-click), double-click in the AdminEnable column, and select a value from the list:
- true to enable PoE for the port, or false to disable PoE for the port.
Example:
To disable POE on all switch ports:
Closet1#conf t
Closet1(config)#sh poe-port-status
Admin Current Limit
Port Status Status Classification (Watts) Priority
---- ------- ----------------- -------------- ------- --------
1 Enable Detecting 0 16 Low
2 Enable Detecting 0 16 Low
3 Enable Detecting 0 16 Low
4 Enable Detecting 0 16 Low
5 Enable Detecting 0 16 Low
:
Closet1(config)#int ethernet all
Closet1(config-if)#poe poe-shutdown Or to enable: no poe-shutdown
Not applied on NON-PWR port(s): 49-50
Closet1(config-if)#sh poe-port-status
Admin Current Limit
Port Status Status Classification (Watts) Priority
---- ------- ----------------- -------------- ------- --------
1 Disable Disabled 0 16 Low
2 Disable Disabled 0 16 Low
3 Disable Disabled 0 16 Low
4 Disable Disabled 0 16 Low
5 Disable Disabled 0 16 Low
:
Closet1(config-if)#exit
Closet1(config)#save config
Closet1(config)#
