TALC Port Programming

1 Download and install the TALC Configuration Manager

The default program username is admin, and password is root.
From the top menu bar, click Connect ➤ Telnet and enter the cards IP address.
The default card username is guest, and password is guest123.

2 TALC Port Configuration:

➤ DN Discovery Port:

Each TALC card requires Port 16 (the first Data TN) to be programmed as a "DN Discovery Port".

In LD11, build a new set on port 16, with the same set type as that programmed on port 0.
Assign it the following CLS: FLXA VCE WTA TDD CNDA DNDA * must be entered in this order.
Key 0 SCR DN = the "DN discovery" DN, entered in "TALC Configuration Manager » System Configuration".

➤ Digital Sets:

Make the first unit a 2616/2008, and build a matching TYPE on port 16 (see above).
Sets can be MOVed to the TALC, but Consoles and ACD's must be OUTed, and rebuilt.
All digital sets built on the card require the following CLS: TDD CNDA DNDA.

Note: Each PBX TN, including the DN Discovery port, will require one PBX Digital ISM (license).

➤ 2250 Consoles:

M2250 Consoles require two TNs (ports) for voice and signaling. Do not build PWR TN's on the TALC.
Move the console TNs to adjacent Units, and for each, define the SETN's in the TALC Configuration Manager
In TALC Port Configuration, for the primary port Enable 2250 support, and define the secondary (SETN) port.

Note: the # of recording "seats" is set by the Engage license. A console costs one seat, but requires two TALC ports.

Also confirm that MSEC (LD 17: PARM) is OFF. Media Security (MSEC) is by default ON, so check this!

3 After making any changes:

IMPORTANT: Don't forget to Send AND Save, followed by a Reset to apply.

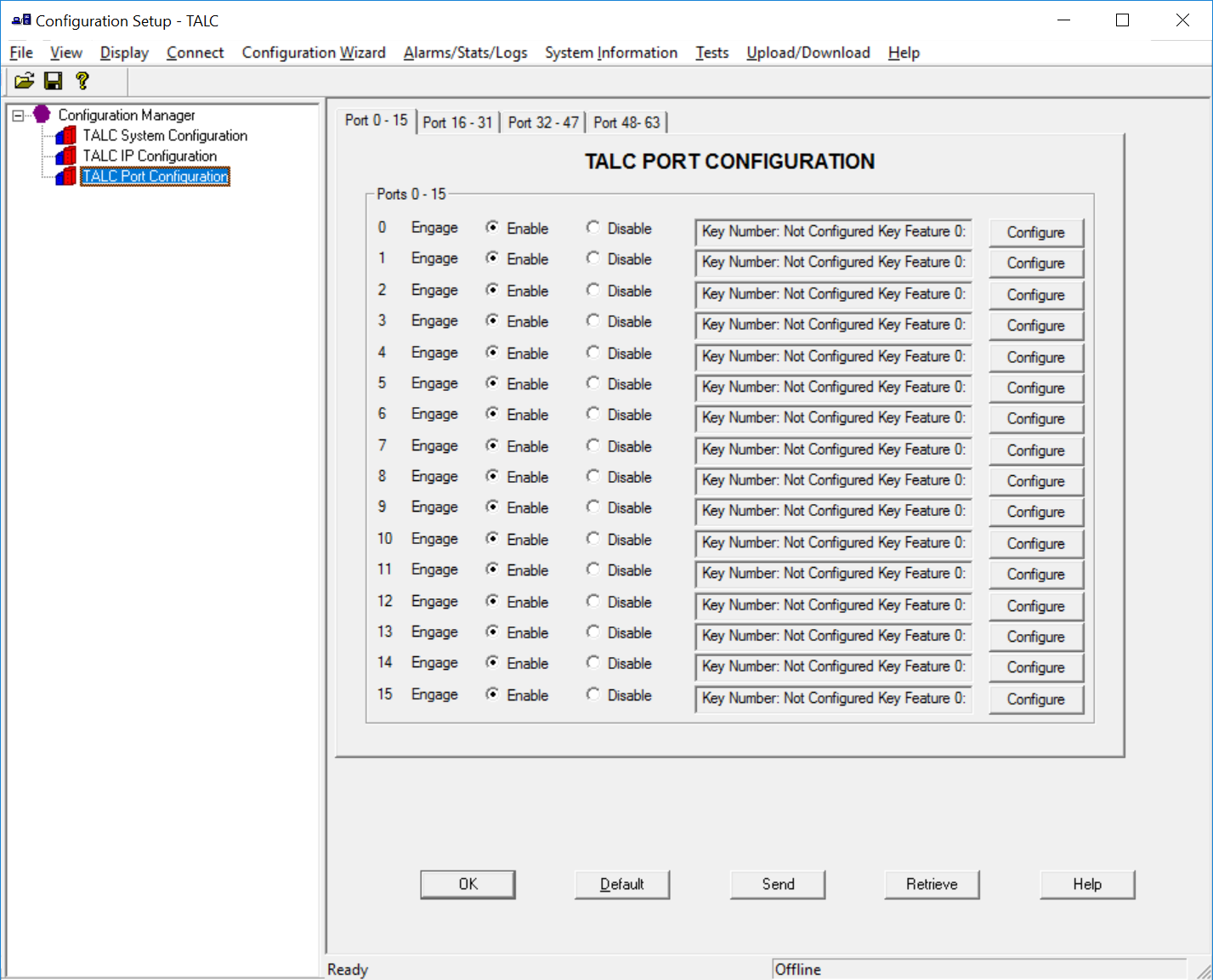

TALC Port Configuration: click Send
From top menu, select Upload/Download » Save to Flash
Select Connect » System Reset for the changes to apply.

→

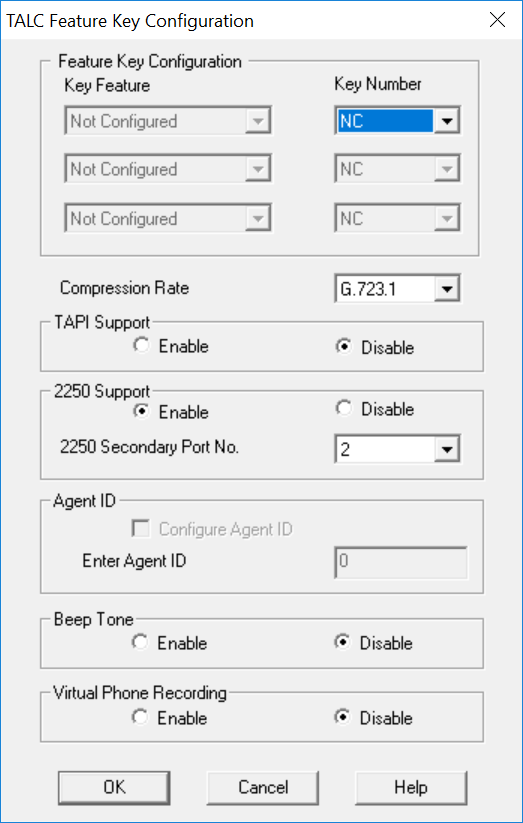

Click Configure, enable 2250 support,
and enter the secondary (SETN) port.
