TALC Multi I/O cable

For TALC cards only, the multi I/O cable breaks out 2 network ports, and one serial port, from an IPE slot 50-pin Amphenol (RJ-21). The standard cable is approximately 30cm (1ft) long. If you can't find the cable, use the pin diagram below to construct your own!

Note: TALC network ports are 10/half-duplex. Therefore, the data-switch port needs auto-negotiate unchecked, and 10/half set.

P5 Ring P1 Tip P5
Unit 0 1 pair1.gif 26 Unit 0
Unit 1 2 pair2.gif 27 Unit 1
Unit 2 3 pair3.gif 28 Unit 2
Unit 3 4 pair4.gif 29 Unit 3
Unit 4 5 pair5.gif 30 Unit 4
Unit 5 6 pair6.gif 31 Unit 5
Unit 6 7 pair7.gif 32 Unit 6
Unit 7 8 pair8.gif 33 Unit 7
Unit 8 9 pair9.gif 34 Unit 8
Unit 9 10 pair10.gif 35 Unit 9
Unit 10 11 pair11.gif 36 Unit 10
Unit 11 12 pair12.gif 37 Unit 11
Unit 12 13 pair13.gif 38 Unit 12
Unit 13 14 pair14.gif 39 Unit 13
Unit 14 15 pair15.gif 40 Unit 14
Unit 15 16 pair16.gif 41 Unit 15
SDI - 2 (RXD) 17 pair17.gif 42 SDI - 3 (TXD)
n/c 20 pair20.gif 45 SDI - 5 (GND)
EN0 - 3 (RX+) 21 pair21.gif 46 EN0 - 6 (RX-)
EN0 - 1 (TX+) 22 pair22.gif 47 EN0 - 2 (TX-)
EN1 - 3 (RX+) 23 pair23.gif 48 EN1 - 6 (RX-)
EN1 - 1 (TX+) 24 pair24.gif 49 EN1 - 2 (TX-)

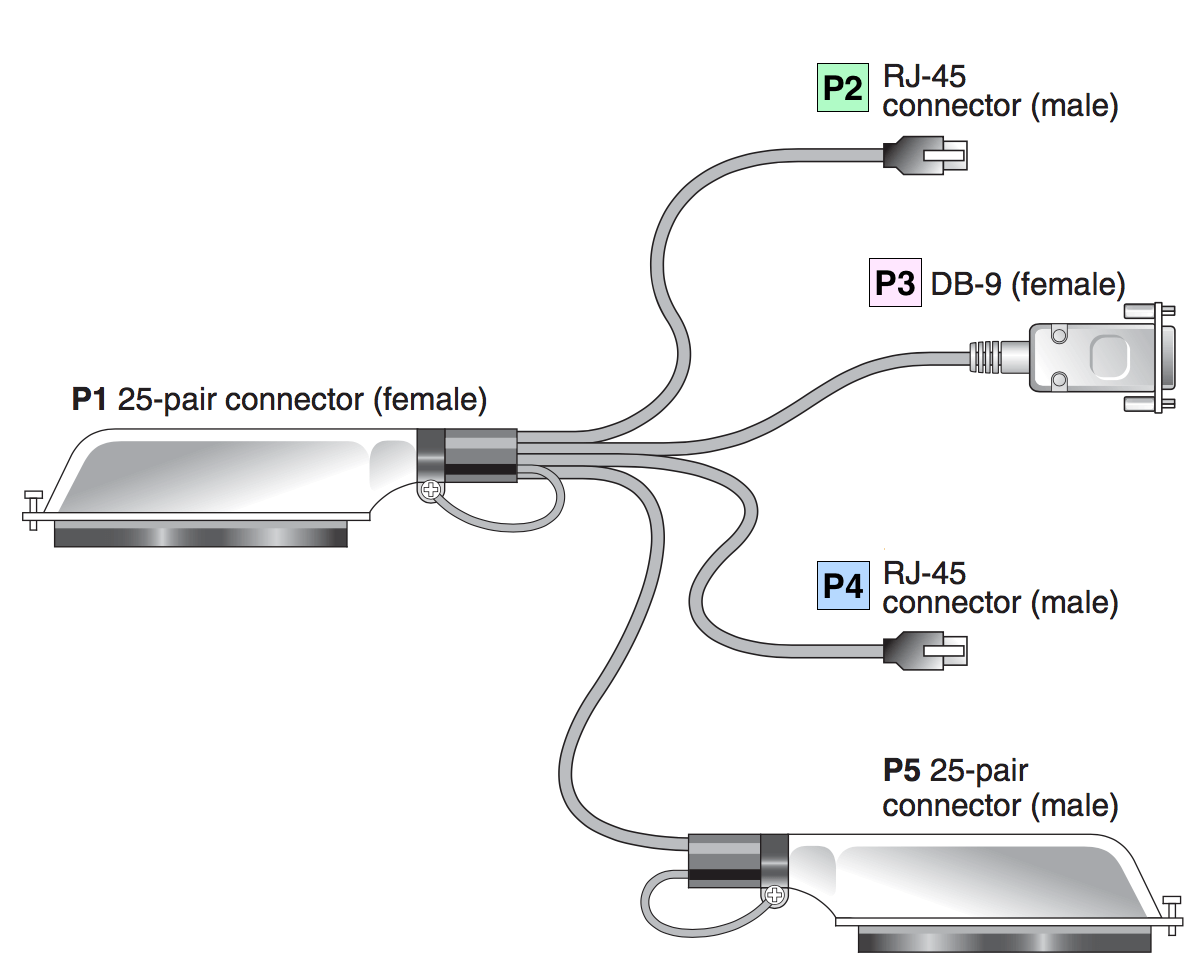

TALC Multi I/O cable

TALC Multi-I/O Cable-Enhanced - Source telstrat.com

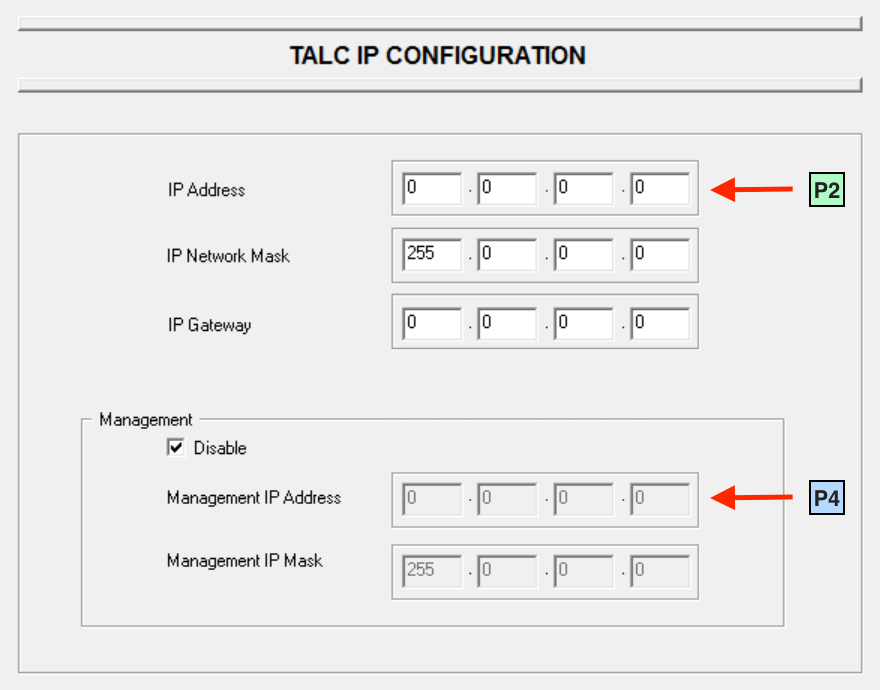

TALC IP configuration

P1 - TALC slot on PBX I/O panel
P2 - Connects to ELAN (EN0)
P3 - Serial console port (SDI)
P4 - Port is Not Used (EN1)
P5 - Station cross-connect/MDF

In P3, loop pins: 1 to 4 (DTR-DCD),
4 to 6 (DTR-DSR), 7 to 8 (RTS-CTS)
