Nortel Pin-map for Krone cross-connect system

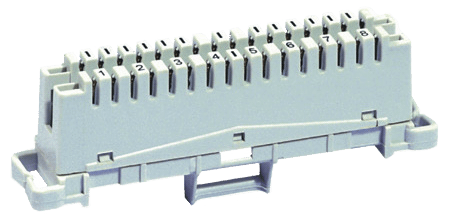

In the Krone cross-connect system, one terminating strip holds 8 or 10 cable pairs. When cross-connecting a 25-pair cable on this system, eight terminating points are used on each strip. One 25-pair cable, therefore, occupies three terminating strips (blocks):

8 pairs per strip, x 3 strips = 24 pairs

Krone 8 (or 10) pair blocks are punched as follows. 3 blocks are required per 25 pair cable.

Cable Pair	Meridian Telco / Backplane pin out guide			Krone Row	Krone Pair

1	Blue / White	26	White / Blue	1	1
2	Orange / White	27	White / Orange		2
3	Green / White	28	White / Green		3
4	Brown / White	29	White / Brown		4
5	Slate / White	30	White / Slate		5
6	Blue / Red	31	Red / Blue		6
7	Orange / Red	32	Red / Orange		7
8	Green / Red	33	Red / Green		8

9	Brown / Red	34	Red / Brown	2	1
10	Slate / Red	35	Red / Slate		2
11	Blue / Black	36	Black / Blue		3
12	Orange / Black	37	Black / Orange		4
13	Green / Black	38	Black / Green		5
14	Brown / Black	39	Black / Brown		6
15	Slate / Black	40	Black / Slate		7
16	Blue / Yellow	41	Yellow / Blue		8

17	Orange / Yellow	42	Yellow / Orange	3	1
18	Green / Yellow	43	Yellow / Green		2
19	Brown / Yellow	44	Yellow / Brown		3
20	Slate / Yellow	45	Yellow / Slate		4
21	Blue / Purple	46	Purple / Blue		5
22	Orange / Purple	47	Purple / Orange		6
23	Green / Purple	48	Purple / Green		7
24	Brown / Purple	49	Purple / Brown		8

25	Slate / Purple	50	Purple / Slate	Spare	Spare

Labels:

Terminating strips must be labeled if they contain wiring. The labels that attach to the terminating strips have two sides: the front side shows the card name and card number, and the reverse side (flip-upside) shows pair designations for that card.
