Set Gateway IP, Date and Time

How to set the IP address, and date and time, on rack mounted Intuition 1000 Gateways

Default IP addresses: IP: 10.0.0.1 Subnet: 255.255.255.0 Gateway: 10.0.0.1

Default Login details: Username: engineer Password: dpEn9in3er

1Open a console session:

• Monitor and keyboard - you may need to temporarily remove the rear internal keyboard connection.
• Serial 'cross-over' cable (9-way female to 9-way female) connected to the rear serial port: 57600,8,n,1.

2Press Enter to bring up the localhost login prompt...

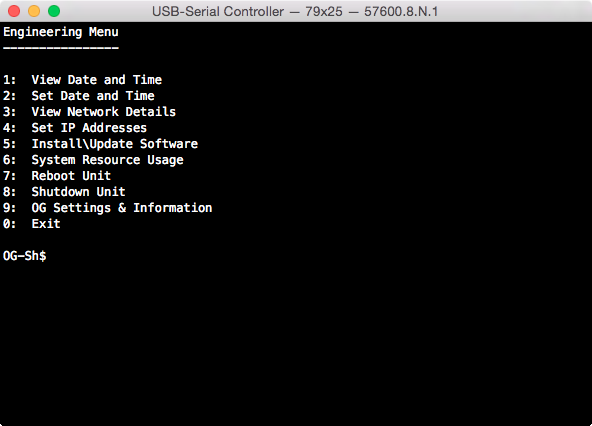

Enter the username and password: the Engineering Menu appears.

3Select option 4 to Set IP Addresses:

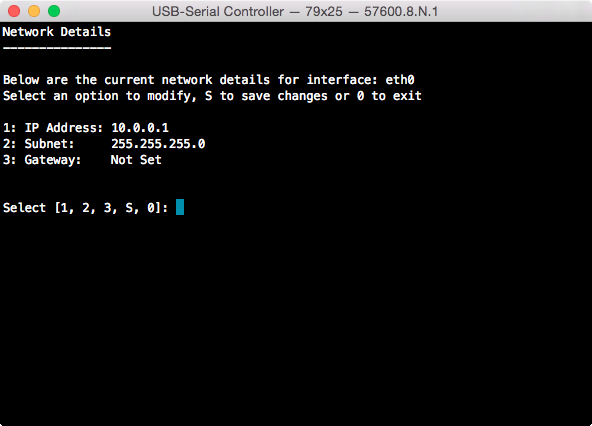

From the IP Address Menu, enter the IP address, Subnet and Gateway by selecting each option in turn.
(A Gateway address is only required when crossing subnets). Press S to save changes. Press 0 to exit.

4Select option 2 to Set Date and Time:

Enter the date and time in the format of YY-MM-DD hh:mm, and press Enter.
Optional. The date and time is used only to time stamp the server log files.

5Select option 9 to check gateway Status:

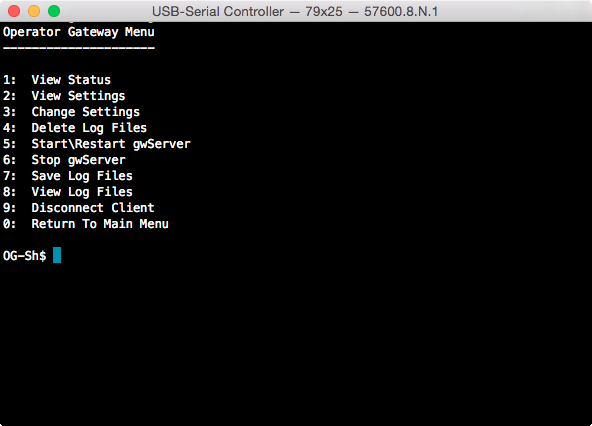

The Operator Gateway Menu opens, select option 1 to View Status.

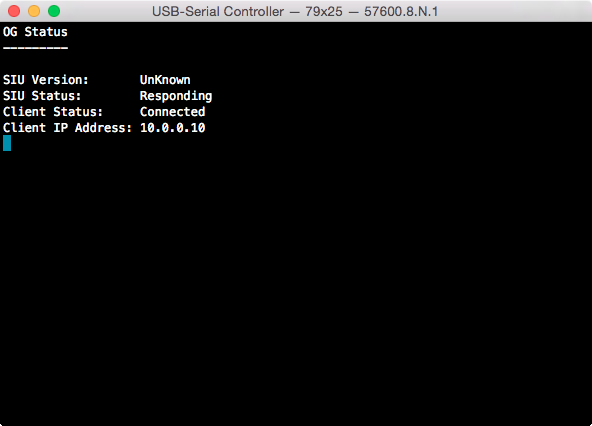

The OG status window opens: status should be Responding and Connected.

6Press 0 to exit.

Remember to replace the internal keyboard cable if you removed it earlier.

---
