M2250 2 Prong Adapter

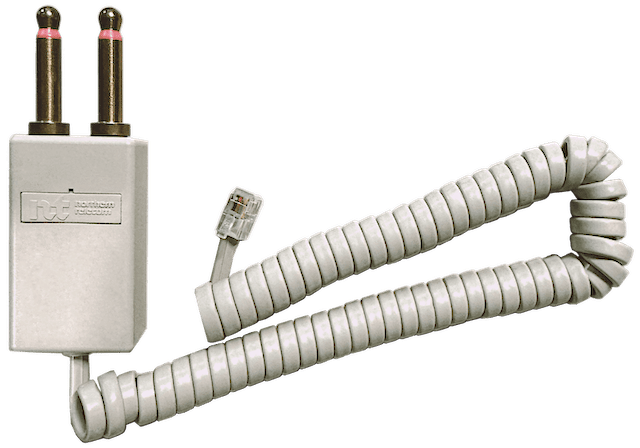

A Nortel M2250 2 Prong Adaptor (NTAG95AA) is needed to connect handsets or headsets to a M2250 or PCCIU console. Nortel consoles are compatible with either carbon or electret mics, adjusting audio levels automatically. Note that electret mics are polarity sensitive: the brandline (NT) plate on the 2 prong handset adapter must face down on a 2250, and forward on the PCCIU.

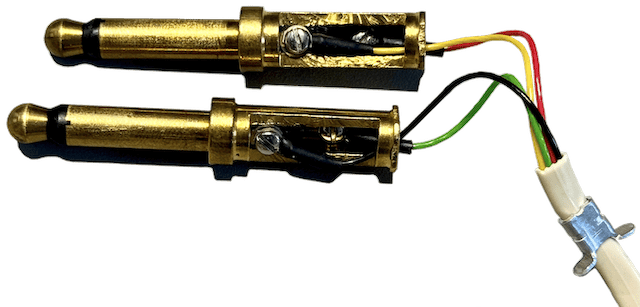

The 2 prong adapter is two 6.3mm mono jacks, and entirely passive:

JackTipSleeve
Top →YellowRed
Bottom →BlackGreen
  • Tips (black/yellow) are the mic
  • Rings (green/red) are the earpiece
  • Jacks go to M2250, cable to handset
