Dialogic/CS1K/Unity

Dialogic PIMG Integration between CS1K and Cisco Unity voicemail.

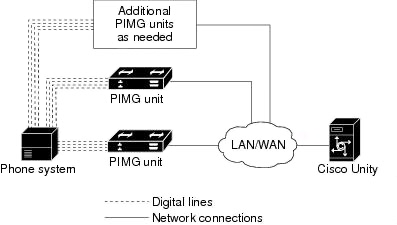

The diagram (right) shows the connections used in a digital integration between PBX and Cisco Unity using digital PIMG units.

• The PBX sends call information, MWI requests, and voice through standard digital line ports (M2616 TN's), to the Dialogic PIMG units (media gateways).

• The PIMG units communicate with the Cisco Unity Connection server through the LAN or WAN using Session Initiation Protocol (SIP).

Some configuration notes follow...

Screen shots:

PIMG and Unity configuration is done from a web browser. Open each in a new tab or window:

❮ ❯

Programing notes:

This example uses the Dialogic PIMG with DLC. A digital line card has 16 ports (0-15), but each PIMG Unit has only 8 ports. You can set up the DLC with 16 ports and wire the first 8 ports over to the first PIMG unit, and the second 8 ports over to the second PIMG unit.

For example:

• 0-1-10-0 thru 0-1-10-7 cable up to 13.xx.xx.190 (unit 190)
• 0-1-10-8 thru 0-1-10-15 cable up to 13.xx.xx.191 (unit 191)

Each 2616 requires the following class of service:

CLS ADD HFD CNDA HTD FND          Important!

And the following keys:

KEY 0 SCR xxxx                    Station port DN is entered in hunt group list
KEY 13 MIK
KEY 14 MCK
KEY 15 TRN

Program a group hunt list number with all the station ports in it in Load 18 – the hunts will be configured hi to low and then low to hi number group so all the services aren’t fighting to use the exact same ports all the time.

LD 18
REQ new
TYPE ght                          Group Hunt
CUST 0
LSNO 1                            List number
DNSZ 4                            DN Size, eg 4 digits
SIZE 16                           Size of list = number of ports
STOR 00 XXXX                      XXXX = port DN
WRT                               enter to save entry
STOR 01 XXXX                      next port DN

The GHT lists are associated with a Pilot DN in Load 57 to define the main number for auto attendant, for voicemail (generally 5555), for greeting admin, etc. You must build a separate PLDN and Group Hunt for each service, they can't be shared.

LD 57
REQ chg
TYPE ffc                          Flexible Feature Code
CUST 0
CODE pldn
PLDN                              Pilot Directory Number
USE gpht                          Group Hunting
LSNO                              List number created in LD 18
HTYP lin                          RRB = Round Robin, LIN = Linear
CFWI no                           don't skip DN if CFW activated
MQUE all                          ALL = no limit on queued calls

Add an ACD of 5555 (voicemail access #) with MWC yes, to NCFW to the PLDN for voicemail, in order to get the message lights to work.
- if calls end up the operator, check LD 12: MATT. If this is YES (not default), NCFW is ignored and calls are sent to the console.

Example printouts:

Group hunt lists with the station ports:

REQ: prt
TYPE: ght
LSNO
GHLN 0001
TYPE GHT
CUST 0

PLDN 5555
DNSZ 4
SIZE 16
STOR 00 5516
STOR 01 5515
STOR 02 5514
STOR 03 5513
STOR 04 5512
STOR 05 5511
STOR 06 5510
STOR 07 5509
STOR 08 5508
STOR 09 5507
STOR 10 5506
STOR 11 5505
STOR 12 5504
STOR 13 5503
STOR 14 5502
STOR 15 5501

GHLN 0002
TYPE GHT
CUST 0

PLDN 1000
DNSZ 4
SIZE 16
STOR 00 5501
STOR 01 5502
STOR 02 5503
STOR 03 5504
STOR 04 5505
STOR 05 5506
STOR 06 5507
STOR 07 5508
STOR 08 5509
STOR 09 5510
STOR 10 5511
STOR 11 5512
STOR 12 5513
STOR 13 5514
STOR 14 5515
STOR 15 5516

GHLN 0003
TYPE GHT
CUST 0

PLDN 5556
DNSZ 4
SIZE 16
STOR 00 5516
STOR 01 5515
STOR 02 5514
STOR 03 5513
STOR 04 5512
STOR 05 5511
STOR 06 5510
STOR 07 5509
STOR 08 5508
STOR 09 5507
STOR 10 5506
STOR 11 5505
STOR 12 5504
STOR 13 5503
STOR 14 5502
STOR 15 5501

GHLN 0004
TYPE GHT
CUST 0

PLDN
DNSZ 4
SIZE 16
STOR 00 5501
STOR 01 5502
STOR 02 5503
STOR 03 5504
STOR 04 5505
STOR 05 5506
STOR 06 5507
STOR 07 5508
STOR 08 5509
STOR 09 5510
STOR 10 5511
STOR 11 5512
STOR 12 5513
STOR 13 5514
STOR 14 5515
STOR 15 5516

GHLN 0005
TYPE GHT
CUST 0

PLDN
DNSZ 4
SIZE 16
STOR 00 5516
STOR 01 5515
STOR 02 5514
STOR 03 5513
STOR 04 5512
STOR 05 5511
STOR 06 5510
STOR 07 5509
STOR 08 5508
STOR 09 5507
STOR 10 5506
STOR 11 5505
STOR 12 5504
STOR 13 5503
STOR 14 5502
STOR 15 5501

GHLN 0110
TYPE GHT
CUST 0

PLDN
DNSZ 4
SIZE 16
STOR 00 5501
STOR 01 5502
STOR 02 5503
STOR 03 5504
STOR 04 5505
STOR 05 5506
STOR 06 5507
STOR 07 5508
STOR 08 5509
STOR 09 5510
STOR 10 5511
STOR 11 5512
STOR 12 5513
STOR 13 5514
STOR 14 5515
STOR 15 5516

GHLN 0111
TYPE GHT
CUST 0

PLDN
DNSZ 16
SIZE 16
STOR 00 5501
STOR 01 5502
STOR 02 5503
STOR 03 5504
STOR 04 5505
STOR 05 5506
STOR 06 5507
STOR 07 5508
STOR 08 5509
STOR 09 5510
STOR 10 5511
STOR 11 5512
STOR 12 5513
STOR 13 5514
STOR 14 5515
STOR 15 5516


REQ: ****

Note: Set the following Pilot DN's (PLDN) to use a Round Robin search pattern (RRB). If set to Linear (LIN, default), and you have a bad port on the Dialogic box, the system would not send the call setup to another channel.

Pilot DN's, associated with each list, one for each service:

>ld 57
FFC000
MEM AVAIL: (U/P): 96901472    USED U P: 6452335 298542    TOT: 103652349
DISK SPACE NEEDED: 352 KBYTES
REQ  prt
TYPE ffc
CUST 0
CODE all

CUST 00
FFCT YES
ASRC
AUTH
AWUA
AWUD
AWUV
CDRC
CFWA #1

CFWD #1

CFWV
COND
CPAC
CPRK
CSHF
C6DS
DEAF
DPVS
ELKA
ELKD
PLDN 1000                         Pilot Directory Number for Auto-attendant
 USE  GPHT
 LSNO 2
 HTYP RRB                         Set to RRB 'Round Robin', default is LIN 'linear'
 CFWI NO
 MQUE ALL

PLDN 5555                         Pilot Directory Number for Voicemail
 USE  GPHT
 LSNO 1
 HTYP RRB                         Set to RRB 'Round Robin'
 CFWI NO
 MQUE ALL

PLDN 5556                         Pilot Directory Number for Greeting Administration
 USE  GPHT
 LSNO 3
 HTYP RRB                         Set to RRB 'Round Robin'
 CFWI NO
 MQUE ALL

PLDN ##
 USE  SCLU
 LSNO 104

GRPF
HOLD #4

ICPA
:
:
