G8x16 Module Wiring

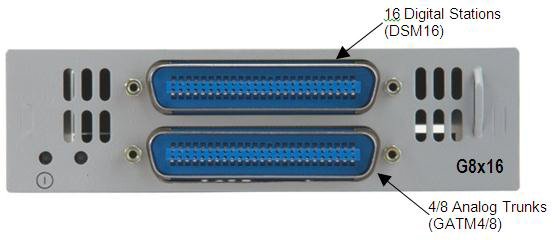

G8x16 Media Bay Module Amphenol Wiring

The G8x16 MBM’s is a combination of the GATM8 and DSM16(+) Media Bay Modules. It is compatible with the BCM 200/400 Main Unit, BCM 400 Expansion Unit, BCM 450 Main Unit, BCM 450 Expansion Unit and BCM 50 Expansion Unit

G4/8x16 Module

For the Analog Trunk wiring, refer to Station Module WiringGATM4/8 Media Bay Module Amphenol Wiring.

For the Digital Station wiring, refer to ASM/GASM/DSM Media Bay Module Ampenol Wiring, consulting the DSM32 High column(s).
