Mike's PBX Cookbook

Load Factory Defaults

Use the following key sequence to reset a Nortel/Avaya IP set and load the factory default values.
Note: Applies to: 2007, 1100 and 1200 series sets, with UNIStim firmware release 3.0, and greater.

* * R E N E W [MAC address] # #
The MAC address is in HEX: press 2 for A, B or C, and press 3 for D, E, or F.
* * 7 3 6 3 9 [MAC address] # #

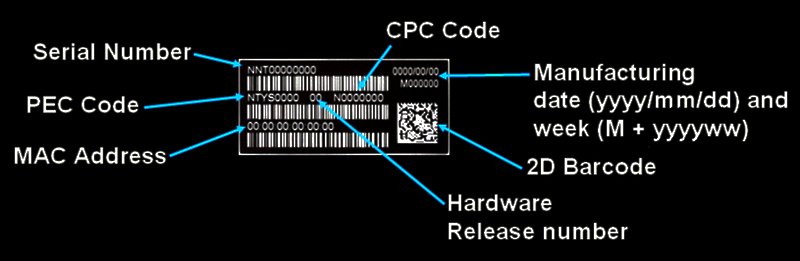

You can find the MAC address on the label on the back of the set, or in the Local Tools Menu (HWID).
Press the Services key twice to access the Local Tools Menu, the default pasword is: [color * set]

Factory default values

ParameterFactory default value
Enable 802.1x (EAP)Disabled
802.1x Device IDNone
802.1x PasswordNone
Enable 802.1ab (LLDP)Yes
DHCP modeOn
Set IP0.0.0.0
Net Mask0.0.0.0
Gateway0.0.0.0
S1 IP0.0.0.0
S1 Port0
S1 Action1
S1 Retry255
S1 PK0xffffffffffffffff
S2 IP0.0.0.0
S2 Port0
S2 Action1
S2 Retry255
S2 PK0xffffffffffffffff
Network SpeedAuto
Network Duplex ModeAuto
Voice 802.1QEnabled
Voice VLAN ModeDHCP Auto
Voice VLAN ID4095
Voice Control pBit8 (Auto)
Voice Media pBit8 (Auto)
VLAN FilterDisabled
Enable PC PortYes
PC Port SpeedAuto
PC Port Duplex ModeAuto
Data 802.1QEnabled
Data VLAN ModeDisabled
Data VLAN ID4095
Data pBit8 (Auto)
PC-Port Untag AllOff
StickinessEnabled
Cached IPDisabled
Ignore GARPDisabled
PSK SRTPOff
DiffServ Code Points for control message0
DiffServ Code Points for media message0
DiffServ Code Points Precedence OverrideNo
XAS IP0.0.0.0
XAS Port0
XAS ActionGfs (graphical, full screen, and secure)
Primary DNS IP0.0.0.0
Secondary DNS IP0.0.0.0
Provisioning server IP0.0.0.0
Provisioning server port0
Provisioning server typeTFTP
UNIDNone
Menu LockAuto Lock
Bluetooth (1140E, 1150E, and 1165E only)Disabled
Zone IDNone
Read zone/type/device specific provisioning fileNone
Contrast7
Brightness (IP Phones 2007 and 1165E only)7
Backlight1 hour
Display Dim EnabledOff
Headset typeNone
Auto recovery flagOn
Recovery level (not accessible in local menu)Critical
Log level (not accessible in local menu)Minor
CPU sampling rate (not accessible in local menu)180 seconds
SSH user IDNone
SSH passwordNone
BoldOff
VPNDisabled
ProtocolContivity
ModeAggressive
Authentication typePSK
PSK-User IDNone
PSK-PasswordNone
XauthNone
Xauth User IDNone
Xauth PasswordNone
Primary ServerNone
Secondary ServerNone
VPN DSCP0
VPN DSCP CopyDo not copy
VPN MOTD0
Local DNS0.0.0.0
MSCRN
CallrecN
SlideshowOff
ThemeBlack theme (0)
Use Theme BackgroundEnabled
Use Font SmoothingEnabled
Use Outlined FontDisabled
GEM Bold FontEnabled
Use Simple IconsDisabled
Enable USB PortEnabled
Lock USB MouseDisabled
Lock USB KeyboardDisabled
Lock USB HeadsetDisabled
Lock USB Flash DriveDisabled
