BES50FE-12 PWR

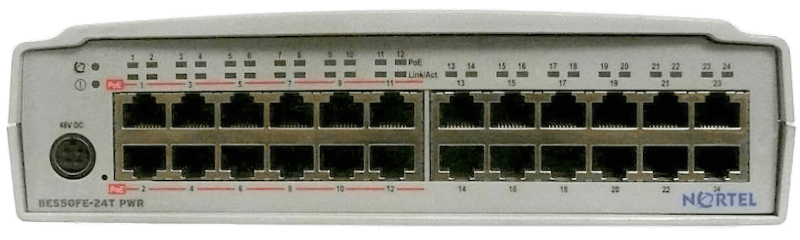

Nortels 12 port BCM style Ethernet switch with Power Over Ethernet (PoE).

Default IP:192.168.1.128, Subnet: 255.255.255.0 – make sure your IP address is compatible.

Enter the IP address in a webbrowser window, login with "nnadmin", "PlsChgMe!"

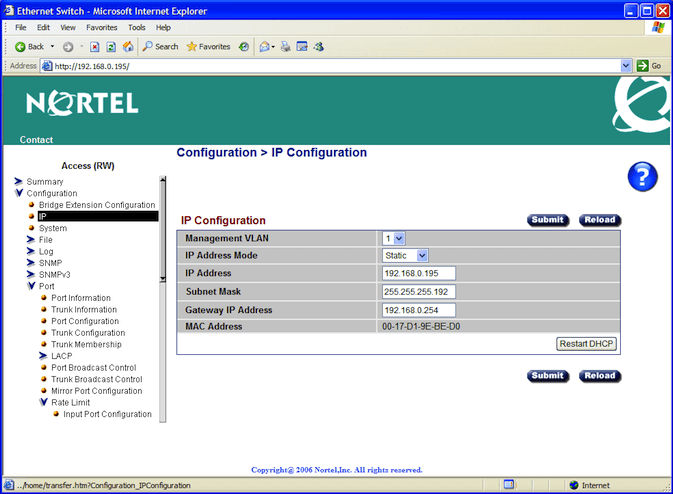

Edit the IP configuration, and disable DHCP (Static IP Address Mode):

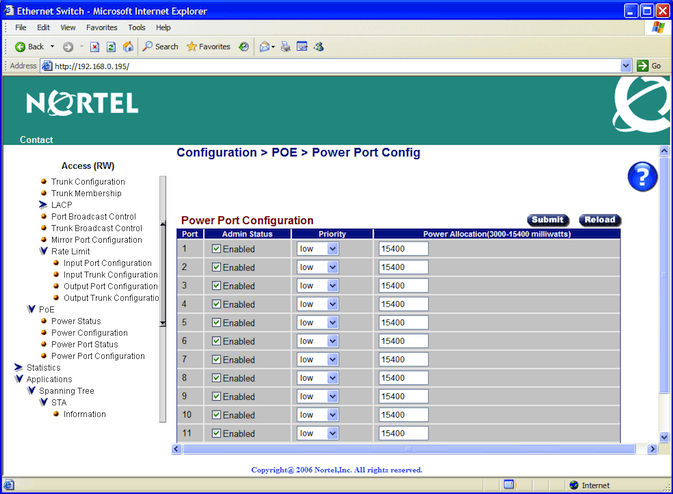

Enable Power Over Ethernet (PoE) for all ports (required for i2004 sets):

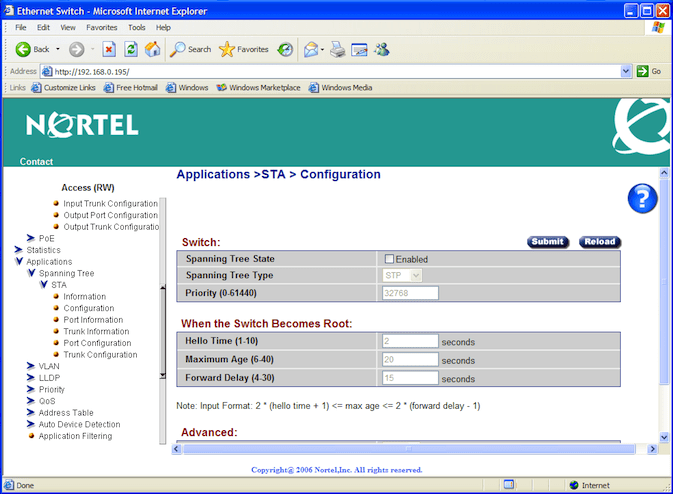

Make sure "Spanning Tree State" is NOT enabled, this can adversly affect network performance:
