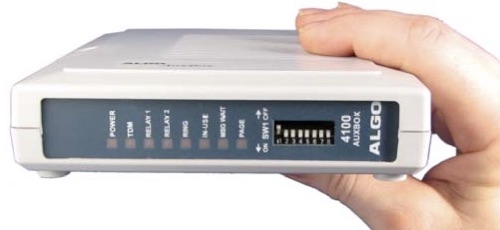

4100 AUX Box

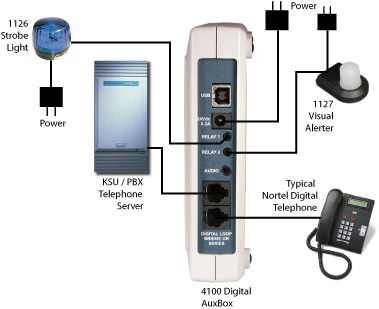

The 4100 AuxBox connects to the digital wire pair between a Meridian Digital telephone and a Meridian 1 PBX, Norstar KSU, or Business Communications Manager. Compatible with the following telephones:

Norstar: M7100, M7208, M7310, M7324, M7410, T7100, T7208, T7316

Meridian 1: M2006, M2008, M2616, M3901, M3902, M3903, M3904, M3905





Provides dry contact for:

• message waiting
• telephone in use
• ringing

Provides audio output for:

• voice recording
• loudspeaker paging

The AuxBox can be located:

• at or near the desktop (plug and play connectivity)
• in the telephone equipment room
• loud paging

Popular applications:

• desktop telephone call recording
• visual message waiting
• visual or loud ringing
• amplified internal paging
• visual in use indication

Requirements for these features are frequently found in call centers, schools, professional offices, home offices, command centers, and financial institutions.

The 4100 AuxBox detects and automatically adapts for M1, Norstar, or Business Communications Manager. The 4100 AuxBox is completely passive to the digital connection of the telephone and will not affect the operation or loop limit of the digital telephone.


Ordering Information:
4100 - AuxBox desktop NA (117V 60Hz)
4100R - AuxBox rack mount card
4110 - AuxBox shelf with Intl power supply (95-250V 47-63Hz) - Accommodates up to 16 4100R cards


4100 AuxBox Specifications:

Power Supply: Adapter included, 117V 60Hz to 24Vdc 200 mA
Loop limit (from PBX/KSU): 4000 feet (1200m), Meridian 1
2600 feet (800m), Norstar, Business Communications Manager
Bridge Tap: 10 feet (3m) Recommended maximum (if not series)
Digital loop connection: RJ12 jacks series or bridging
Dry contact outputs: 2.5 mm jack (qty 1 plug to plug cord provided)
50mA 30V maximum
2 provided, option selectable for any combination of ringing, in use, message waiting, or paging.
Analog audio output: 3.5 mm audio jack
-12dBm nominal 600 ohm or
-52dBu
nominal 1k ohm (microphone level)
Indicator LEDs: Power, M1/Norstar, Ring, Msg Waiting, Off-Hook (in use), Page, Relay 1 active, Relay 2 active.



4100R Rack Mount Card Specifications:

Power Supply: Shelf supplied
Loop limit (from PBX/KSU): 4000 feet (1200m), Meridian 1
2600 feet (800m), Norstar, Business Communications Manager

Digital loop connection:

Shelf 25 pair connector

Dry contact outputs: 2.5 mm jack (qty 1 plug to plug cord provided)
50mA 30V maximum
2 provided, option selectable for any combination of ringing, in use, message waiting, or paging.
Analog audio output: RJ-45 jack (shelf)
-12dBm nominal 600 ohm or
-52dBu
nominal 1k ohm (microphone level)
Indicator LEDs: Power, M1/Norstar, Ring, Msg Waiting, Off-Hook (in use), Page, Relay 1 active, Relay 2 active.



4110 Shelf Specifications:

Capacity:

16 4100R cards

Power Supply:

Included, 95-250 Vrms 47-63 Hz Input, 24V 3A output DIN connector

Connections:

25 pair connector female for 1 to 16 digital ports
15 feet (4m) Maximum recommended bridge tap
One RJ45 jack per card providing:
2 Relay outputs
Analog audio
Auxiliary power 24Vdc 100 mA

Shelf Mounting Requirements:

19" Rack 3 mounting spaces



Tel: (604) 454-3790
sales@algosolutions.com
Fax: (604) 437-5726
www.algosolutions.com

Algo Communication Products Ltd.
4500 Beedie Street
Burnaby, B.C., Canada
V5J 5L2
