Ubuntu on a CPDC card

If you have a spare Common Processor Dual Core (CPDC) card, you can use this procedure to install Ubuntu on it. You will need:

Prepare USB Flash Drive

Download Ubuntu Desktop Edition (64 bit), or, if you intend to later install Asterisk or FreePBX, get the Server Edition. When the download is complete, you'll have a large ISO file in your ~/Downloads folder. To make a bootable USB Flash Drive, the ISO file must be converted to a DMG disk image, this can be done with hdiutil convert.

Open the Terminal (OS X) and enter the following commands...
($ is the prompt, commands are bold):

$ cd ~/downloads
$ hdiutil convert -format UDRW -o ubuntu.dmg ubuntu-15.04-desktop-amd64.iso
Reading Driver Descriptor Map (DDM : 0)
Reading Ubuntu 15.04 amd64               (Apple_ISO : 1)
Reading Apple (Apple_partition_map : 2)
Reading Ubuntu 15.04 amd64               (Apple_ISO : 3)
..............................................................................
Reading EFI (Apple_HFS : 4)
..............................................................................
Reading Ubuntu 15.04 amd64               (Apple_ISO : 5)
..............................................................................
Elapsed Time: 24.901s
Speed: 44.1Mbytes/sec
Savings: 0.0%
created: /Users/mike/Downloads/ubuntu.dmg

Note that:

Next, attach a USB Flash Drive, 4GB is fine.
Identify the disk device name (/dev/disk2 in this example), and unmount it:

$ diskutil list
:
/dev/disk2
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:     FDisk_partition_scheme                        *4.0 GB     disk2
   1:                 DOS_FAT_32 UNTITLED                4.0 GB     disk2s1
$ diskutil unmountDisk /dev/disk2
Unmount of all volumes on disk2 was successful

Now, copy the Ubuntu DMG image onto the USB Flash Drive with dd. Enter your admin password when prompted.
This can take a while, and there is no indication of progress:

$ sudo dd if=ubuntu.dmg of=/dev/disk2 bs=1m
1097+1 records in
1097+1 records out
1150844928 bytes transferred in 705.699983 secs (1630785 bytes/sec)

When the command prompt returns, the operation is finished.
Eject the USB Flash Drive:

$ diskutil eject /dev/disk2
Disk /dev/disk2 ejected

The USB Flash Drive is now ready to boot our CPDC card.

Boot/Install Ubuntu

Connect a VGA monitor, USB keyboard & mouse, and USB Flash Drive to the CPDC cards front panel.
An (optional) internet connection to either the ELAN or TLAN port (it auto-detects) is required for updates and surfing.

NTDW53 CP DC faceplate
NTDW53 CP DC faceplate - Source Avaya.com

Power up the card, and be ready to Press F to enter the Boot Manager.

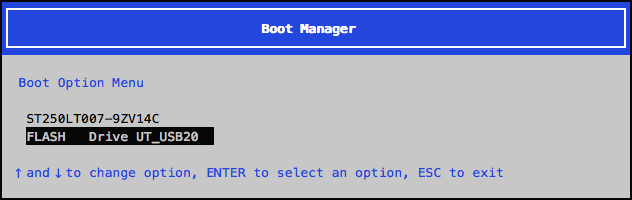

At the "Boot Option Menu", arrow down to select the USB Flash Drive:

CPDC card Boot Manager

After some disk activity, you will boot to the Ubuntu Installer:

Ubuntu Installer

Choose Try Ubuntu to non-destructively run it from the USB stick, or Install Ubuntu to modify the CPDC card's hard drive. You will then have the option to install Ubuntu alongside the Avaya (Red Hat) software, or to re-format the hard drive for Ubuntu.

To re-install the Avaya Linux Base, boot from the Avaya USB Flash Drive, and follow the installer prompts!
