BIX Cable Termination

BIX connectors in the mount are considered in pairs, one upper connector and one lower.

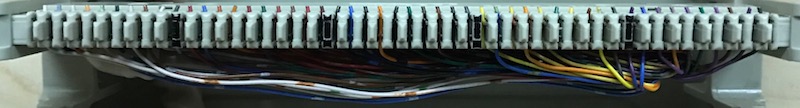

Using a QTBIX16A punch tool, terminate a 25 pair cable per the standard color code as shown:
BIX Cable Termination
12345 678910 1112131415 1617181920 21222324 25
Pair 1: White-Blue Pair 2: White-Orange Pair 3: White-Green Pair 4: White-Brown Pair 5: White-Slate Pair 6: Red-Blue Pair 7: Red/Orange Pair 8: Red/Green Pair 9: Red/Brown Pair 10: Red/Slate Pair 11: Black-Blue Pair 12: Black-Orange Pair 13: Black-Green Pair 14: Black-Brown Pair 15: Black-Slate Pair 16: Yellow-Blue Pair 17: Yellow-Orange Pair 18: Yellow-Green Pair 19: Yellow-Brown Pair 20: Yellow-Slate Pair 21: Violet/Blue Pair 22: Violet-Orange Pair 23: Violet-Green Pair 24: Violet-Brown Pair 25: Violet-Slate
12345 678910 1112131415 1617181920 21222324 25
BIX Cable Termination

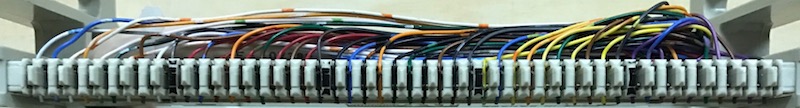

Work from left to right, & from top to bottom. The first pair (White/Blue) is always left.
After terminating, flip over the connectors so the wire bundles are inside the pair.

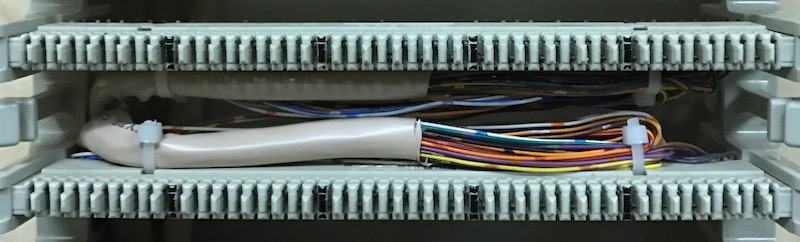

BIX Cable Termination - Finished
Do not overtighten the wire bundles as it may affect cable performance.
