UCM Password Reset
NOTE: If you have the password, but get a "OVL0428 - User authentication to CS1000 call server failed..." error, try this first:
- Login to SS0 as admin2 (TTY via SSH)
- Enter: appstart Jboss-Quantum restart (case sensitive, no service impact)
- Wait for the TTY message "UCM is now ready to use" (takes about 5 minutes)
- Try to logon on the UCM from the browser.
Procedure to reset UCM admin (Secure Domain) password.
If the UCM admin password is lost, locked out, or expired, use the following procedure to log-in locally with an emergency account (admin2) and reset it. On completion, log into the CS with the new admin password and Check Registered Elements.
If you want to reset/change the local-login root/admin2 password(s), refer to: Linux Base Password Reset.
The PC hosts file must resolve the <fqdn> to the TLAN address of the Primary Security Server.
If you cannot
ping <fqdn>, check the hosts file as follows:
- In Windows, open the hosts file in Notepad:
- In Mac OS X, to edit the hosts file, open a terminal session and enter:
sudo nano /etc/hosts
- Connect to the TLAN, and confirm you can
ping <fqdn>before proceeding.
Note: To access the CS from the TLAN, SSH into the UCM, and enter cslogin. End the CS session with ~. (tilde, fullstop).
From a PC connected to the TLAN:
1 Open a web browser, and enter the URL: https://<fqdn>/local-login

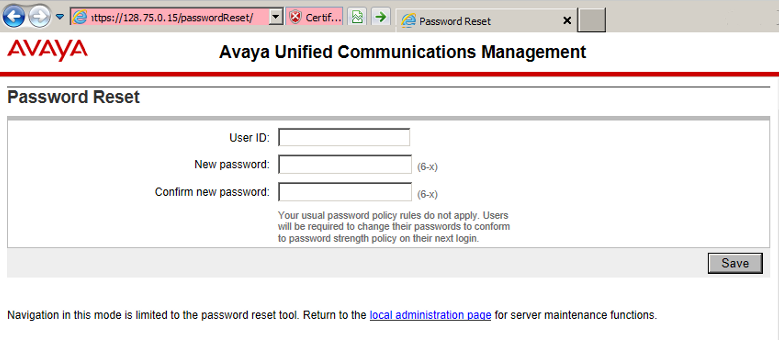

2 After logging in, change the browser URL to: https://<fqdn>/passwordReset and press Enter.
- In the User ID field, type the User ID for the password you want to reset (admin).
- In the New password field, enter a new TEMPORARY password (Password Policy compliant). We will change this again.
- In the Confirm new password field, re-enter the new password.
- Click Save. A confirmation page appears when succesful.
3 Completely close the browser program.
4 Re-open the browser, and enter the URL: https://<fqdn>/network-login
Login denied. The possible reasons are: This is your first login attempt. Your password is about to expire or has expired.

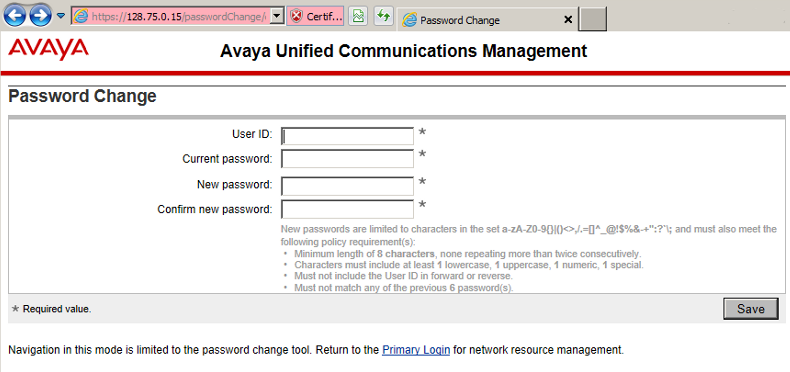

5 Click Change Password to change the password (again!) and activate the user account.
6 Click Save, and note the "User password changed successfully" message.
7 Re-open the browser, and enter the URL: https://<fqdn>/network-login

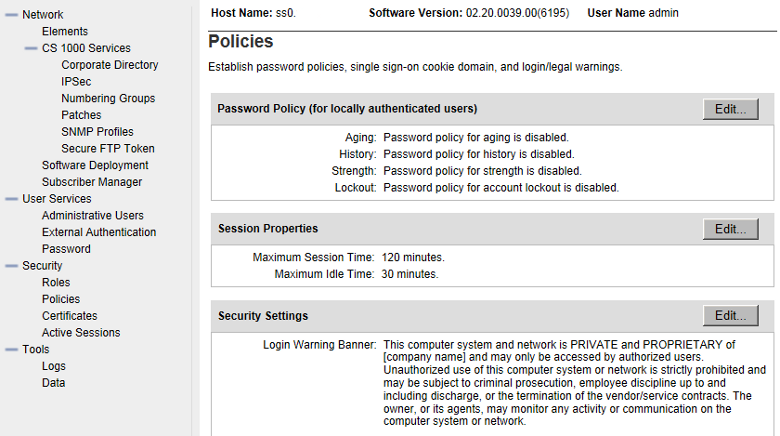

8 OPTIONAL: to stop this happening again...
For example, uncheck: Aging / History / Strength / Lockout.
