Cleaning PBX Air Filters

Air Filters should be cleaned on a regular basis.

Repeat these steps for each column.

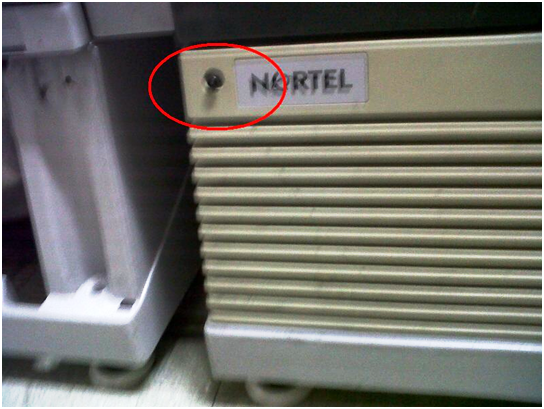

1Unscrew the 2 screws on the bottom panel


NOTE: Click image for large view!

Nortel Meridian PBX Large System Column Air-Filters

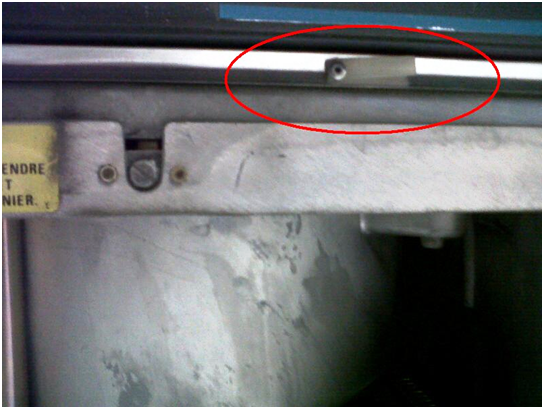

2Locate the filter just above the fan tray.

Pull it out using the circled plastic tabs.

Nortel Meridian PBX Large System Column Air-Filters

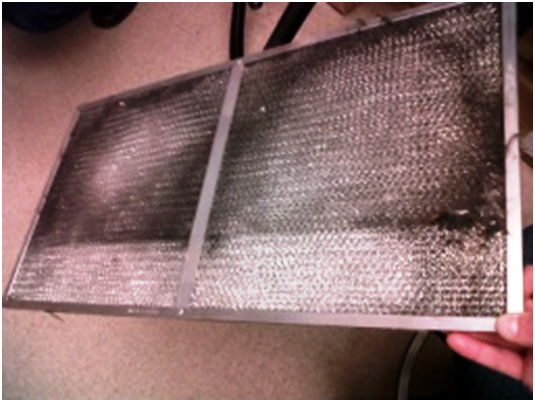

Here's the air filter removed... yuk! Nortel Meridian PBX Large System Column Air-Filters
3Vacuum the filter out.
4Rinse the filter using plain water.

Let it thoroughly dry before re-fitting!


Remember:
A clean switch is a happy switch!
