M3900 Series Keys

M3900 Series Digital Sets Key Descriptions:

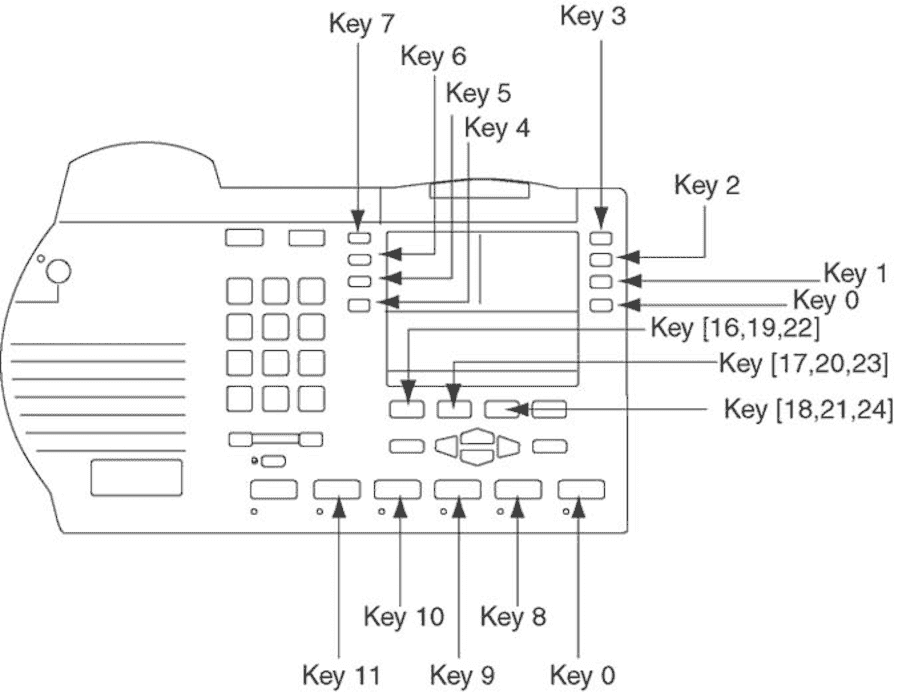

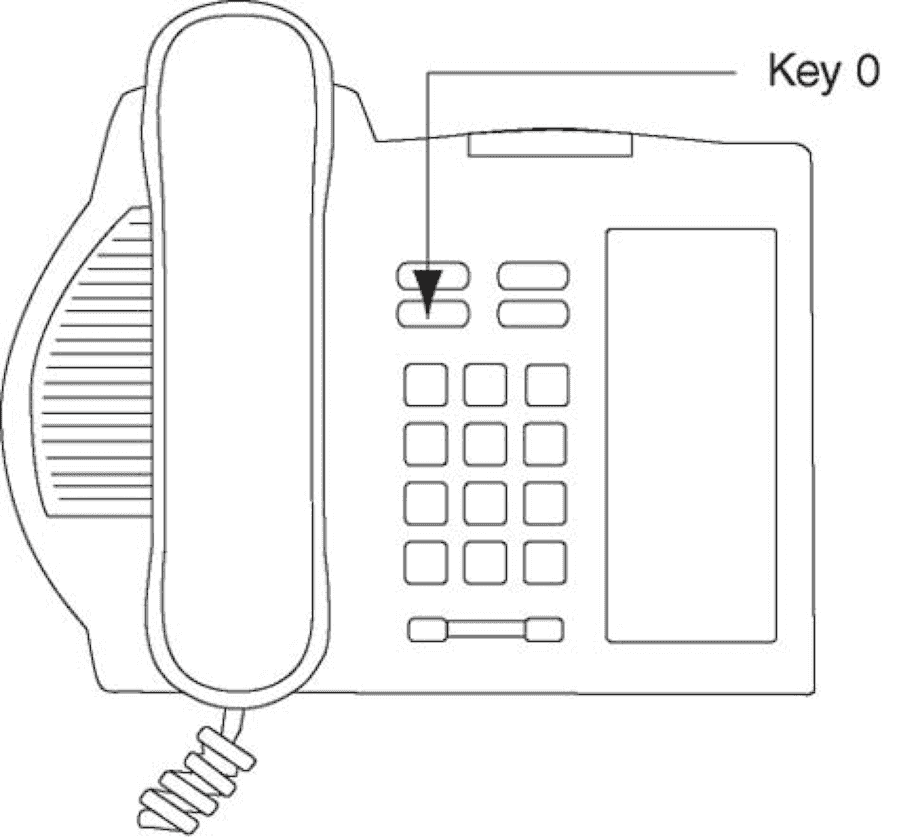

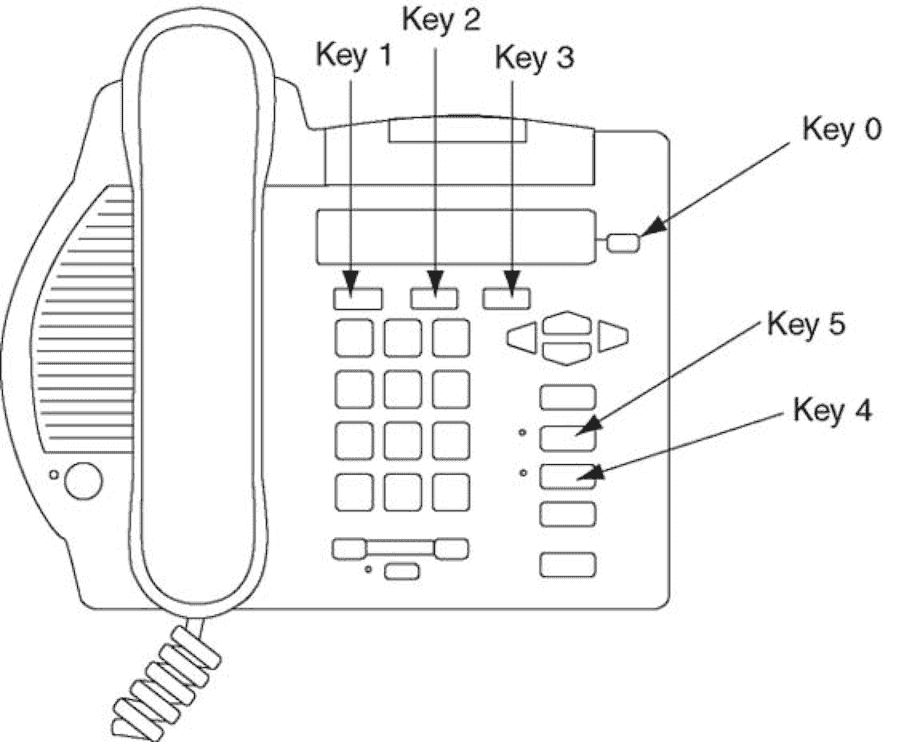

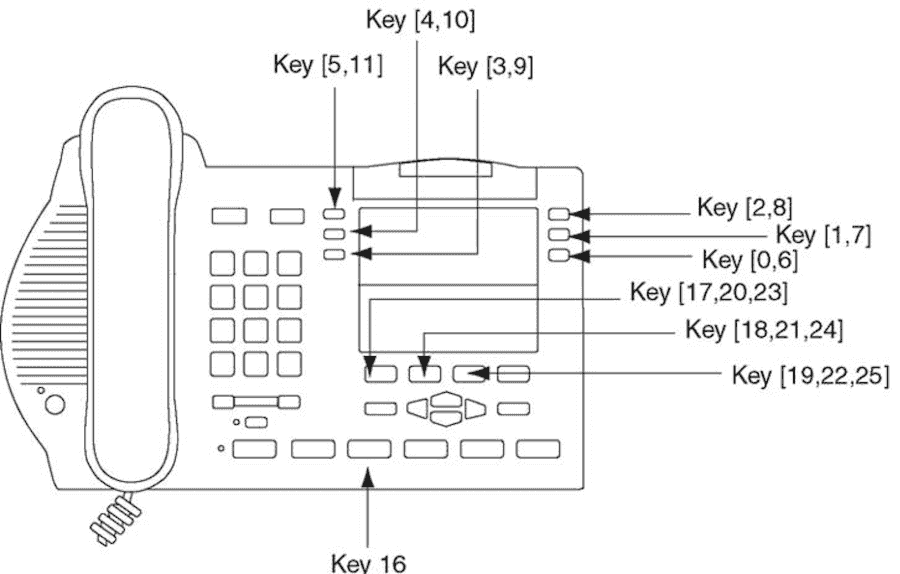

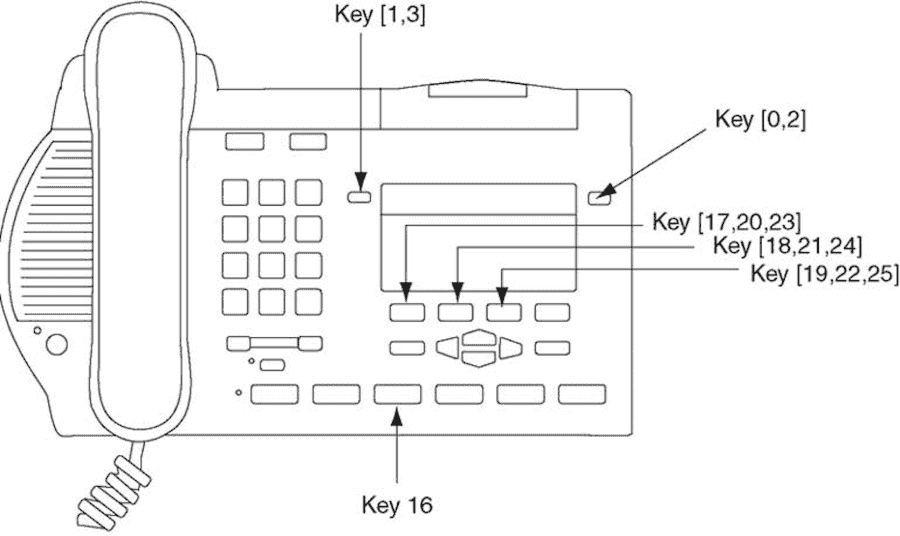

Click on the set type for a diagram of the button/key assignment.


Set Type » M3901 M3902
M3903

M3904
M3905 i2004 (ITG)
Key 0PDNPDNPDNPDNPDNPDN
Key 1FTR*FTR*SDN / FTR**SDN / FTR***SDN / FTR***SDN / FTR***
Key 2FTR*FTR*SDN / FTR**SDN / FTR***SDN / FTR***SDN / FTR***
Key 3FTR*FTR*SDN / FTR**SDN / FTR***SDN / FTR***SDN / FTR***
Key 4FTR*TRN/AO3-6 SDN / FTR***SDN / FTR***SDN / FTR***
Key 5FTR*MWK SDN / FTR*** SDN / FTR***
Key 6   SDN / FTR***
Key 7   SDN / FTR***OPTIONS
Key 8   SDN / FTR***MSB
Key 9   SDN / FTR***NRD
Key 10   SDN / FTR***AMG
Key 11   SDN / FTR***ASP
Key 12
Key 13
Key 14
Key 15
Key 16  MWKMWKMWKMWK
Key 17  TRNTRNTRNTRN
Key 18  AO3-6AO3-6AO3-6AO3-6
Key 19  CFWCFWCFWCFW
Key 20  RGARGARGARGA
Key 21  PRKPRKPRKPRK
Key 22  RNPRNPRNPRNP
Key 23  SPEED CALLSPEED CALLSPEED CALLSPEED CALL
Key 24  PRSPRSPRSPRS
Key 25  CHGCHGCHGCHG
Key 26  CPNCPNCPNCPN
Key 27  CLTCLTCLTCLT
Key 28  RLTRLTRLTRLT

NOTES:

PDN = Primary Directory Number (always on Key 0)
SDN = Secondary directory Number (additional DN, or multi-appearance DN)
SPEED CALL = Speed Call User, Controller, System Speed Call User or Controller

*Any feature that does not require a display (DAG, DWG, DSP, and RMK).
**SDN, or any feature except: AO3-6, CFW, CHG, CPN, PRK, PRS, RGA, RNP, TRN or any Speed Call type.
*** SDN, or any feature except: MWK, AO3-6, CFW, CHG, CPN, PRK, PRS, RGA, RNP, TRN or any Speed Call type.
